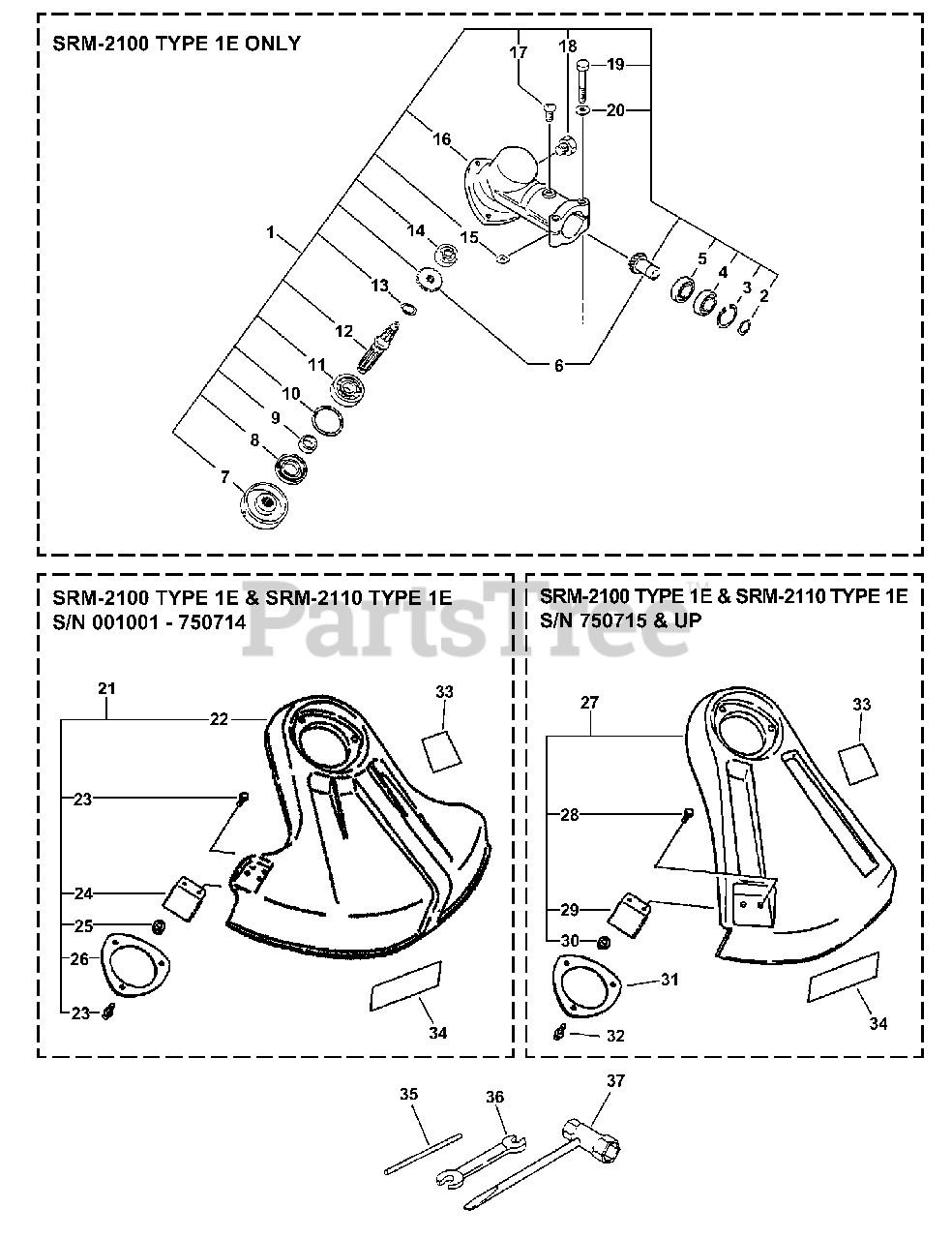

SRM-2100 - Echo String Trimmer (Type 1E) Gear Case, Shields, Tools Parts Diagram

String Trimmer (Type 1E)

Gear Case, Shields, Tools Parts Diagram

  • Title

1

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

Note: INCLUDES ITEMS 1-20; SRM-2100 TYPE 1E ONLY

$98.99

$

Usually ships in 2-4 days

0

2

Echo 90070600010

RING, RETAINING - 10

Note: SRM-2100 TYPE 1E ONLY

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

RING, RETAINING - 22

Note: SRM-2100 TYPE 1E ONLY

$2.49

$

In Stock, Qty 14

0

4

Echo 90085806900

BEARING, BALL - 6900Z

Note: SRM-2100 TYPE 1E ONLY

$27.99

$

In Stock, only 2 left!

0

5

Echo 90085506900

BEARING, BALL - 6900

Note: SRM-2100 TYPE 1E ONLY

$21.99

$

In Stock, only 2 left!

0

6

Echo 61030044830

GEAR SET - BEVEL

Note: SRM-2100 TYPE 1E ONLY

$106.99

$

Usually ships in 2-4 days

0

7

Echo 61031347731

ADAPTOR, BLADE - UPPER

Note: SRM-2100 TYPE 1E ONLY

$14.99

$

In Stock, only 2 left!

0

8

Echo 61041307130

SEAL, OIL

Note: SRM-2100 TYPE 1E ONLY

$6.99

$

In Stock, only 1 left!

0

9

Echo 61031507130

SPACER

Note: SRM-2100 TYPE 1E ONLY

$4.49

$

In Stock, only 2 left!

0

10

Echo 90070200032

RING, RETAINING - 32

Note: SRM-2100 TYPE 1E ONLY

$2.49

$

In Stock, only 2 left!

0

11

Echo 9403536201

BEARING, BALL - 6201

Note: SRM-2100 TYPE 1E ONLY

$9.99

$

Usually ships in 2-4 days

0

12

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

Note: SRM-2100 TYPE 1E ONLY

$80.99

$

In Stock, Qty 5

0

13

Echo 90070600012

RING, RETAINING - 12

Note: SRM-2100 TYPE 1E ONLY

$1.49

$

In Stock, Qty 20+

0

14

Echo 90080000609

BEARING, BALL - 609

Note: SRM-2100 TYPE 1E ONLY

$11.99

$

In Stock, Qty 5

0

15

Echo 61023904130

SHIM

Note: SRM-2100 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

16

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

Note: SRM-2100 TYPE 1E ONLY

$98.99

$

Usually ships in 2-4 days

0

17

Echo 90024205010

SCREW - 5X10

Note: SRM-2100 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010008008

BOLT - 8X8

Note: SRM-2100 TYPE 1E ONLY

$0.99

$

In Stock, Qty 10

0

19

Echo 90010005035

BOLT - 5X35

Note: SRM-2100 TYPE 1E ONLY

$0.99

$

In Stock, Qty 9

0

20

Echo 90060000005

WASHER - 5

Note: SRM-2100 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

21

Echo 69900440931

DEBRIS SHIELD KIT

Note: INCLUDES ITEMS 22-26; SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$30.99

$

In Stock, only 3 left!

0

22

Echo 69901027231

SHIELD, DEBRIS - PLASTIC

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$9.49

$

Usually ships in 2-4 days

0

23

Echo 90024205016

SCREW - 5X16

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$0.99

$

In Stock, Qty 13

0

24

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$4.49

$

In Stock, Qty 20+

0

25

Echo 90050000005

NUT - 5

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$0.99

$

In Stock, Qty 20+

0

26

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 001001-750714

$2.99

$

In Stock, only 3 left!

0

27

Echo P021001260

DEBRIS SHIELD KIT
(Superseded to P021001391)

Note: INCLUDES ITEMS 28-30; SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$17.99

$

In Stock, Qty 20+

0

28

Echo 90024205016

SCREW - 5X16

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$0.99

$

In Stock, Qty 13

0

29

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$4.49

$

In Stock, Qty 20+

0

30

Echo 90050000005

NUT - 5

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$0.99

$

In Stock, Qty 20+

0

31

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$2.99

$

In Stock, only 3 left!

0

32

Echo 90024205016

SCREW - 5X16

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E S/N 750715 & UP

$0.99

$

In Stock, Qty 13

0

33

Echo 89016844830

LABEL - CAUTION

$3.99

$

Usually ships in 2-4 days

0

34

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

35

Echo 89751801131

LOCKING TOOL

$

$

Not available

36

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

37

Echo X602000020

T-WRENCH - 17X19mm

$4.49

$

In Stock, Qty 7

0
