SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Carburetor Parts Diagram

String Trimmer (Type 1/1E)

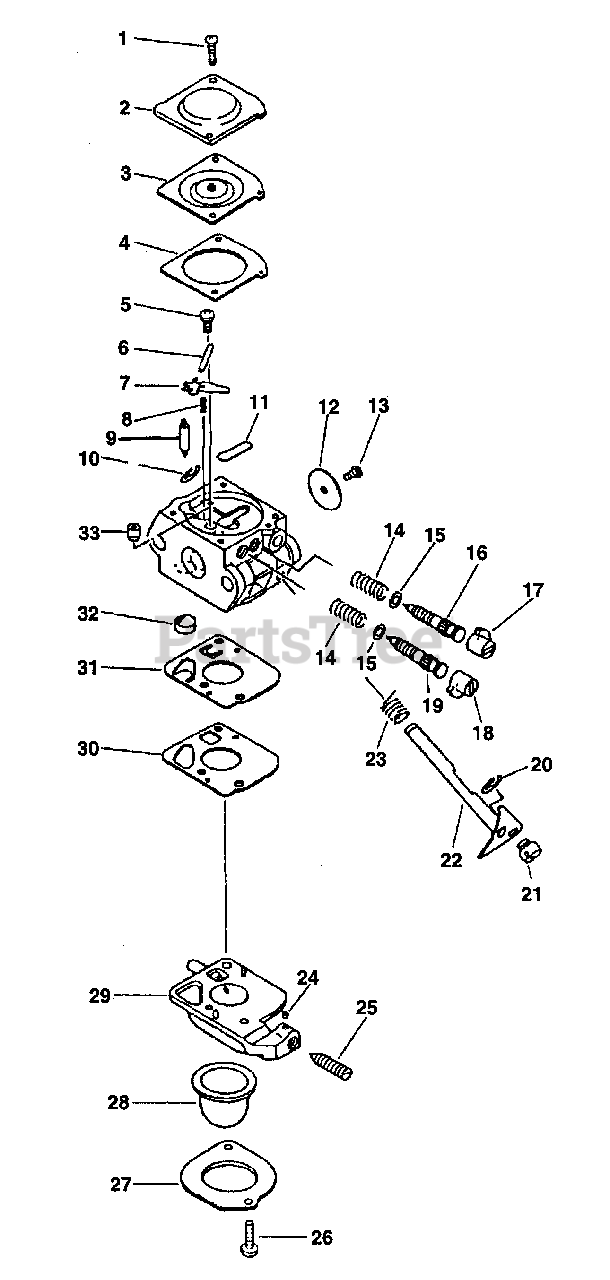

Carburetor Parts Diagram

  • Title

Echo 12520049030

Carburetor c1u-k47
(Superseded to 12520013311)

Note: Includes the following

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

Screw

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

Cover, metering diaphragm
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

Diaphragm, metering

$

$

Not available

4

Gasket, metering diaphragm

$

$

Not available

5

Echo 12533942030

Screw

$0.99

$

In Stock, Qty 12

0

6

Pin, metering arm

$

$

Not available

7

Lever, metering

$

$

Not available

8

Spring, metering lever

$

$

Not available

9

Valve, inlet needle

$

$

Not available

10

Echo 12532715130

Clip

$0.99

$

Usually ships in 2-4 days

0

11

Plug, welch

$

$

Not available

12

Echo 12531649030

Valve, throttle

$2.49

$

Usually ships in 2-4 days

0

13

Echo 12531413930

Screw

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

Spring, needle

$1.49

$

In Stock, only 1 left!

0

15

Echo 12535320560

Washer

$0.99

$

Usually ships in 2-4 days

0

16

Echo 12531807360

Needle, low speed

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12532909860

Limiter, cap l.s.

Note: Type 1e only

$1.99

$

In Stock, Qty 13

0

18

Echo 12532939030

Limiter, cap h.s.

Note: Type 1e only

$1.99

$

In Stock, Qty 11

0

19

Echo 12532007360

Needle, high speed
(Superseded to Discontinued)

$

$

Not available

20

Echo 12532713930

Clip

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12537242030

Swivel

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12531749030

Shaft, throttle
(Superseded to Discontinued)

$

$

Not available

23

Echo 12531342030

Spring, throttle return

$1.49

$

In Stock, Qty 12

0

24

Echo 12537813930

Piece, friction

$1.99

$

Usually ships in 2-4 days

0

25

Echo 12533413930

Screw, idle adjust

$1.49

$

In Stock, only 4 left!

0

26

Echo 12531011610

Screw

$1.49

$

In Stock, Qty 16

0

27

Echo 12536311610

Retainer, purge pump

$2.49

$

In Stock, Qty 15

0

28

Echo 12538108660

Pump, purge
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

29

Echo 12538313310

Base, purge
(Superseded to P005000990)

$22.99

$

In Stock, Qty 5

0

30

Gasket, fuel pump

$

$

Not available

31

Diaphragm, fuel pump

$

$

Not available

32

Echo 12533942030

Strainer

$0.99

$

In Stock, Qty 12

0

33

Echo 12537649030

Nozzle, check valve
(Superseded to Discontinued)

$

$

Not available
