SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Carburetor Parts Diagram

String Trimmer (Type 1/1E)

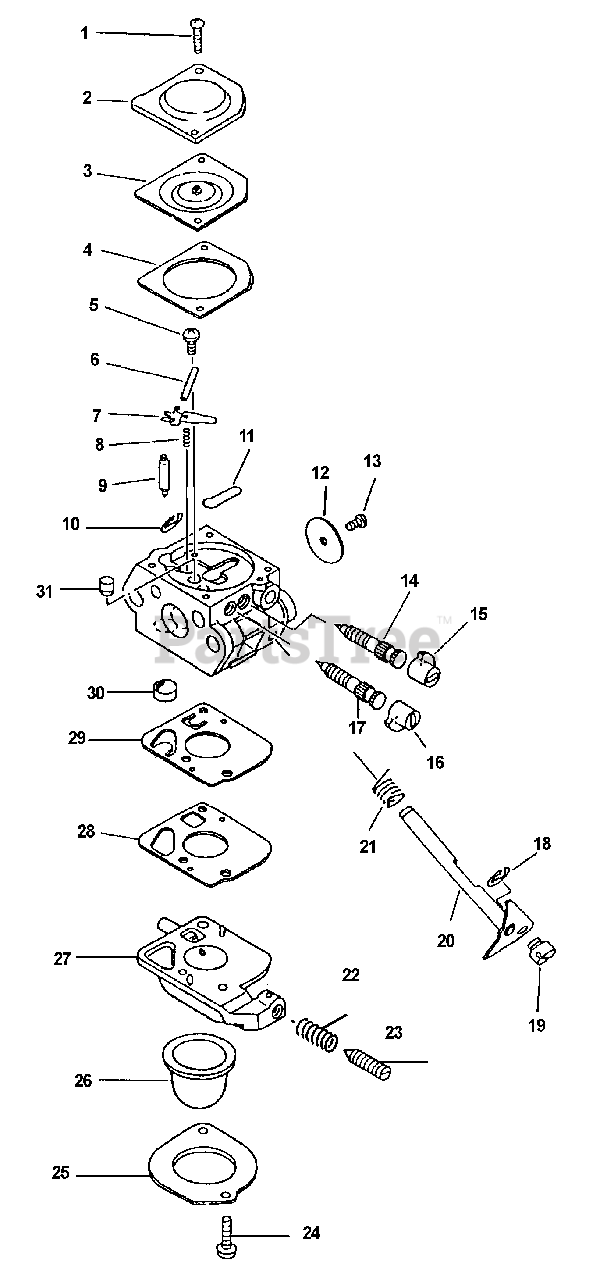

Carburetor Parts Diagram

  • Title

Echo 12520013312

CARBURETOR - C1U-K52
(Superseded to 12520013313)

Note: Includes The Following Items

$94.99

$

In Stock, Qty 7

0

1

Echo 125344-52130

SCREW

$0.99

$

In Stock, Qty 10

0

2

Echo 125342-13210

COVER, METERING DIAPHRAGM
(Superseded to 12534252130)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

$

$

Not available

4

GASKET, METERING DIAPHRAGM

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

$

$

Not available

7

LEVER, METERING

$

$

Not available

SPRING, METERING LEVER

$

$

Not available

VALVE, INLET NEEDLE

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

PLUG, WELCH

$

$

Not available

12

Echo 12531649030

VALVE, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

13

Echo 125314-13930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531813310

NEEDLE, LOW SPEED
(Superseded to 12531813120)

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12532909860

CAP, LIMITER - WHITE

$2.49

$

In Stock, Qty 12

0

16

Echo 12532939030

CAP, LIMITER - RED

$1.99

$

In Stock, Qty 11

0

17

Echo 12532013310

NEEDLE, HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

18

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

19

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

20

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

22

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

23

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

24

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

25

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

27

Echo 12538313310

BODY ASSY, PURGE
(Superseded to P005000990)

$27.99

$

In Stock, only 2 left!

0

28

GASKET, FUEL PUMP

$

$

Not available

29

DIAPHRAGM, FUEL PUMP

$

$

Not available

30

STRAINER

$

$

Not available

31

Echo 12537613120

NOZZLE, CHECK VALVE

$7.49

$

Usually ships in 2-4 days

0
