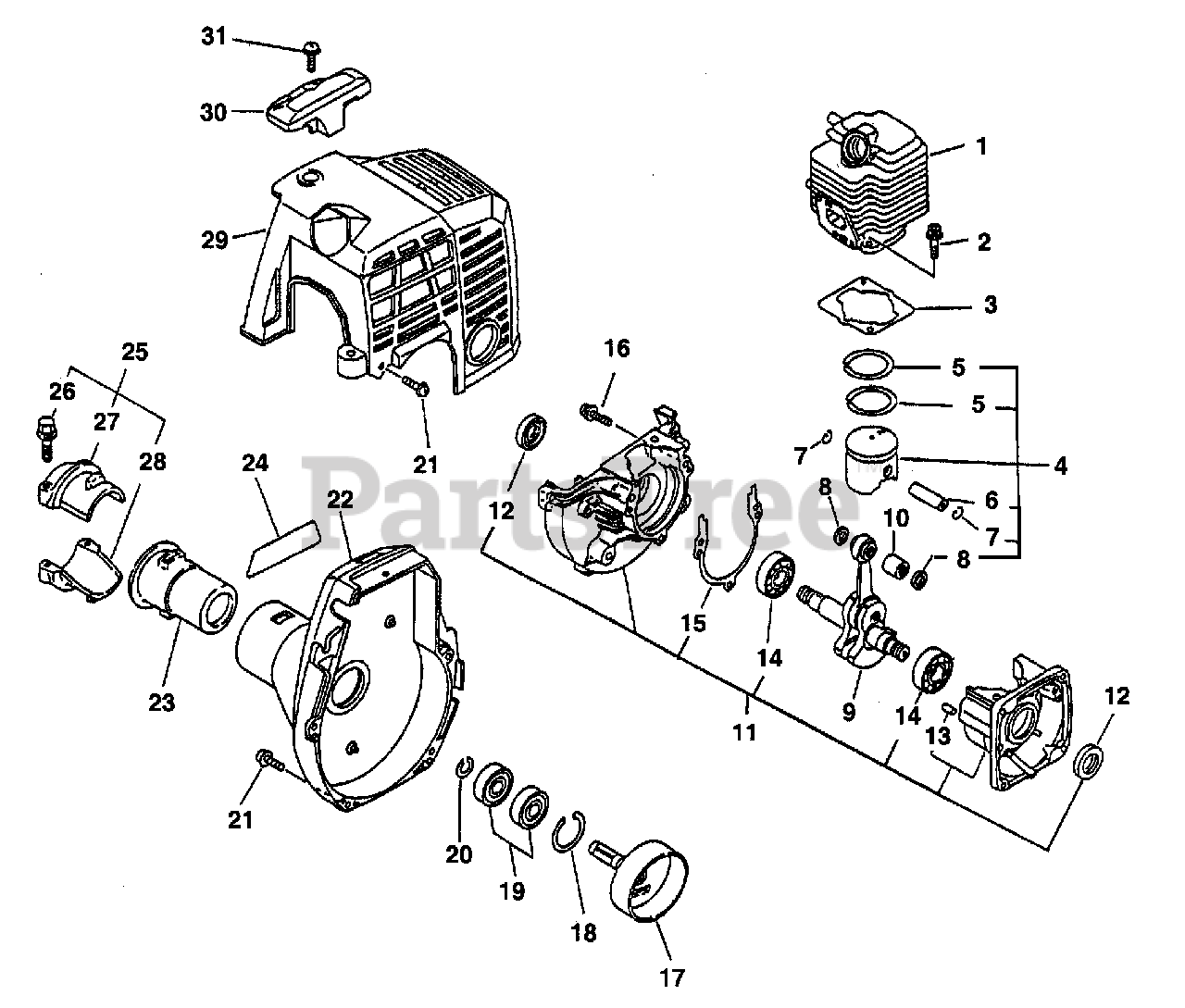

SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Engine, External/Internal, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer (Type 1/1E)

Engine, External/Internal, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10101106560

Cylinder
(Superseded to 10101106561)

$130.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

Bolt, h.s. 5x22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

Gasket, cylinder base

Note: Included in kit 88900042031

$4.99

$

In Stock, Qty 12

0

4

Echo 10000048730

Piston kit
(Superseded to 10000048731)

Note: Includes items 5 - 8

$77.99

$

In Stock, only 2 left!

0

5

Echo 10001105330

Ring, piston

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

Pin, piston

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

Circlip, piston pin

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

Spacer, piston pin

$3.99

$

Usually ships in 2-4 days

0

9

Crankshaft (use sb1026)

Note: Includes item 10

$

$

Not available

10

Echo 10001251230

Bearing, needle
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Crankcase kit (use sb1026)

Note: Includes items 12 - 16

$

$

Not available

12

Echo 10021242030

Oilseal
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 5

0

13

Echo 10021503930

Pin, dowel
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

14

Echo 90081036201

Bearing, ball 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

15

Gasket, crankcase

Note: Included in kit 88900042031

$

$

Not available

16

Echo 90016205028

Bolt 5x28

$2.49

$

In Stock, Qty 11

0

17

Echo 17500548930

Drum, clutch
(Superseded to 17500548931)

$16.99

$

In Stock, Qty 5

0

18

Echo 90070200028

Circlip 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 90080796001

Bearing, ball 6001
(Superseded to 9405106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

Circlip 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016204016

Bolt 4x16
(Superseded to 90016304016)

$1.99

$

In Stock, Qty 20+

0

22

Echo 10150352131

Cover asy, fan

$78.99

$

Usually ships in 2-4 days

0

23

Echo 61091055230

Cushion

$8.49

$

In Stock, only 1 left!

0

24

Echo 89011256730

Label, model

$3.99

$

Usually ships in 2-4 days

0

25

Echo 61090355230

Holder kit

Note: Includes items 26 - 28

$21.99

$

Usually ships in 2-4 days

0

26

Echo 90014205025

Bolt 5x25

$0.99

$

In Stock, Qty 9

0

27

Echo 61092227432

Holder

$6.99

$

In Stock, only 2 left!

0

28

Echo 61092355230

Holder

$9.49

$

Usually ships in 2-4 days

0

29

Echo 10151448930

Cover, cylinder

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991254130

Guard, top

$9.49

$

In Stock, only 3 left!

0

31

Echo 90023805016

Screw 5x16

$0.99

$

In Stock, Qty 20+

0

Engine Repower

$

$

Not available

Echo SB1026

Short Block
(Superseded to Discontinued)

Note: Includes factory assembled Cylinder, crankcase, piston, Crankshaft, bearings & seals

$

$

Not available

Optional

$

$

Not available

Echo 88900042031

Gasket kit
(Superseded to 88900042032)

Note: Includes the following

$19.99

$

In Stock, only 2 left!

0

Echo 10101044332

Gasket, cylinder base

$4.99

$

In Stock, Qty 12

0

Gasket, crankcase

$

$

Not available

Echo 13001042032

Gasket, intake

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

Gasket, intake

$1.49

$

In Stock, Qty 20+

0

Echo 14551042031

Gasket, muffler
(Superseded to V104000160)

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

Gasket, muffler lid

$2.99

$

In Stock, only 4 left!

0
