SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Optional Pe Gear Housing, Drive Shaft, Shield, Tools Parts Diagram

String Trimmer (Type 1/1E)

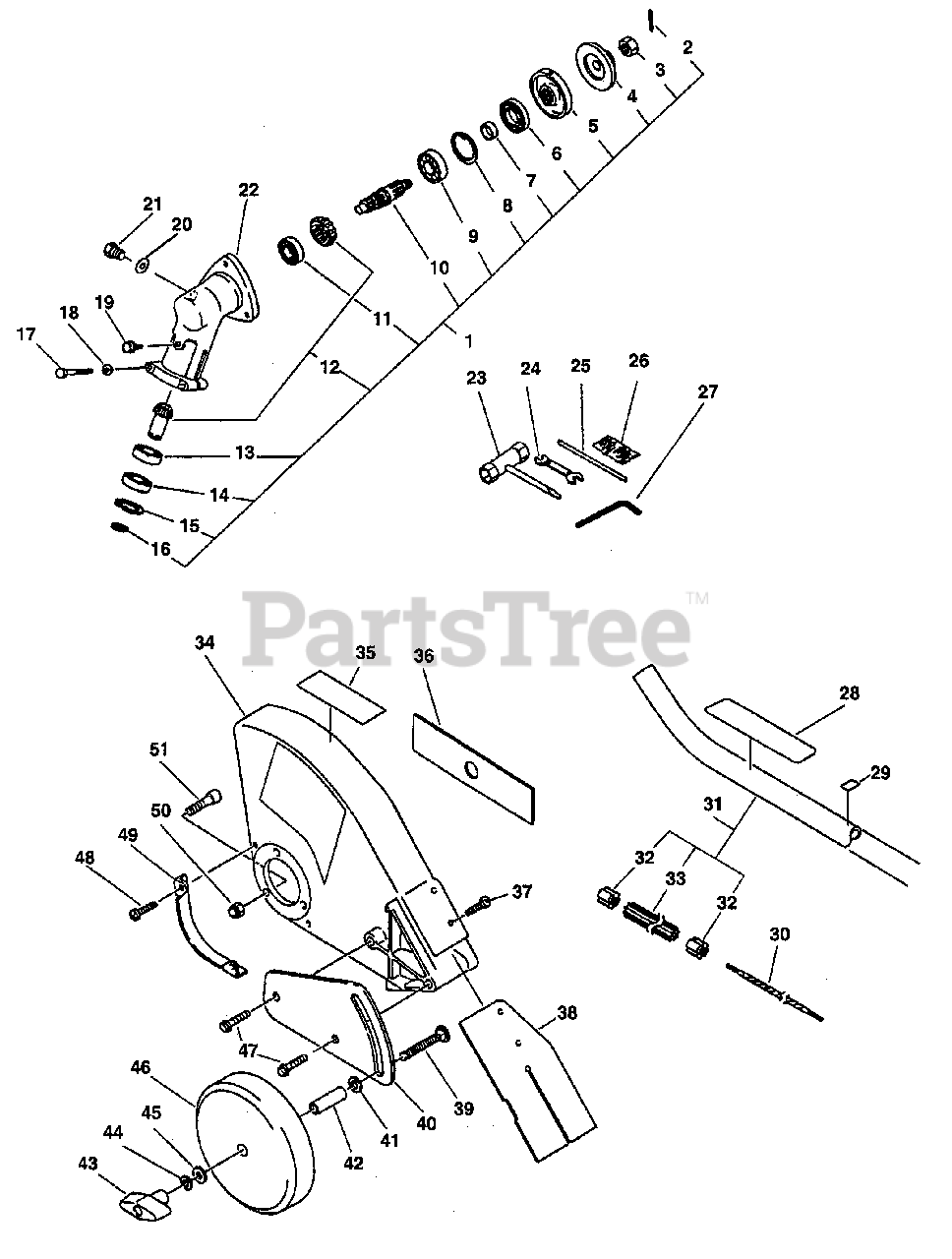

Optional Pe Gear Housing, Drive Shaft, Shield, Tools Parts Diagram

  • Title

1

Echo 61040040730

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 900300-20022

PIN, COTTER 2×22

Note: Includes items 2 - 22

$0.99

$

In Stock, Qty 14

0

3

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

4

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

5

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

6

Echo 61041355330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

7

Echo 61031555330

COLLAR 10

$3.49

$

Usually ships in 2-4 days

0

8

Echo 10023855330

RING, SNAP 20

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 2 left!

0

10

Echo 61031055330

GEAR, SHAFT
(Superseded to 61040040730)

$

$

Not available

11

Echo 90081400629

BEARING, BALL 626

$13.99

$

Usually ships in 2-4 days

0

12

Echo 61030040730

GEAR SET
(Superseded to Discontinued)

$

$

Not available

13

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

14

Echo 90080400609

BEARING, BALL 609ZZ

$18.99

$

In Stock, only 2 left!

0

15

Echo 10022955330

RING, SNAP
(Superseded to Discontinued)

$

$

Not available

16

Echo 61033555330

RING, RETAINING - 18
(Superseded to Discontinued)

$

$

Not available

17

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

18

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

20

Echo 61051155330

WASHER

$0.99

$

Usually ships in 2-4 days

0

21

Echo 61051055330

FITTING, GREASE

$0.99

$

Usually ships in 2-4 days

0

22

Echo 61041055330

CASE, GEAR
(Superseded to 61040040730)

$

$

Not available

23

Echo 89541008030

T-WRENCH
(Superseded to X602000020)

$4.49

$

In Stock, Qty 7

0

24

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

25

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

26

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

27

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

28

Echo 89016048030

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

29

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

30

Echo 61001356730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000000)

$17.99

$

In Stock, only 2 left!

0

31

Echo 61020649230

MAIN PIPE ASSY
(Superseded to 61020646130)

Note: Includes items 32 & 33

$30.99

$

In Stock, Qty 5

0

32

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

33

Echo 61021752630

LINER - FLEXIBLE
(Superseded to C507000240)

$20.99

$

In Stock, only 3 left!

0

34

Echo 69901052830

SHIELD, DEBRIS

$24.99

$

In Stock, only 1 left!

0

35

Echo 89016052630

LABEL, CAUTION

$2.49

$

Usually ships in 2-4 days

0

36

Echo 69601552632

BLADE - 2 PK

$11.99

$

In Stock, Qty 20+

0

37

Echo 90008000200

SCREW

$0.99

$

Usually ships in 2-4 days

0

38

Echo 69901755330

FLAP, DEBRIS

$14.99

$

In Stock, only 2 left!

0

39

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$2.49

$

In Stock, Qty 20+

0

40

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$9.49

$

In Stock, only 3 left!

0

41

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

42

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 19

0

43

Echo 17811355330

KNOB, FASTENER
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

44

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

45

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

46

Echo 30241052631

WHEEL
(Superseded to C730000030)

$12.99

$

In Stock, only 4 left!

0

47

Echo 90008000100

BOLT 8

$1.99

$

Usually ships in 2-4 days

0

48

Echo 90008000300

SCREW 4

$0.99

$

In Stock, Qty 5

0

49

Echo 69902552630

GUARD, SHIELD

$3.99

$

In Stock, Qty 12

0

50

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

51

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0
