SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Srm Drive Shaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

String Trimmer (Type 1/1E)

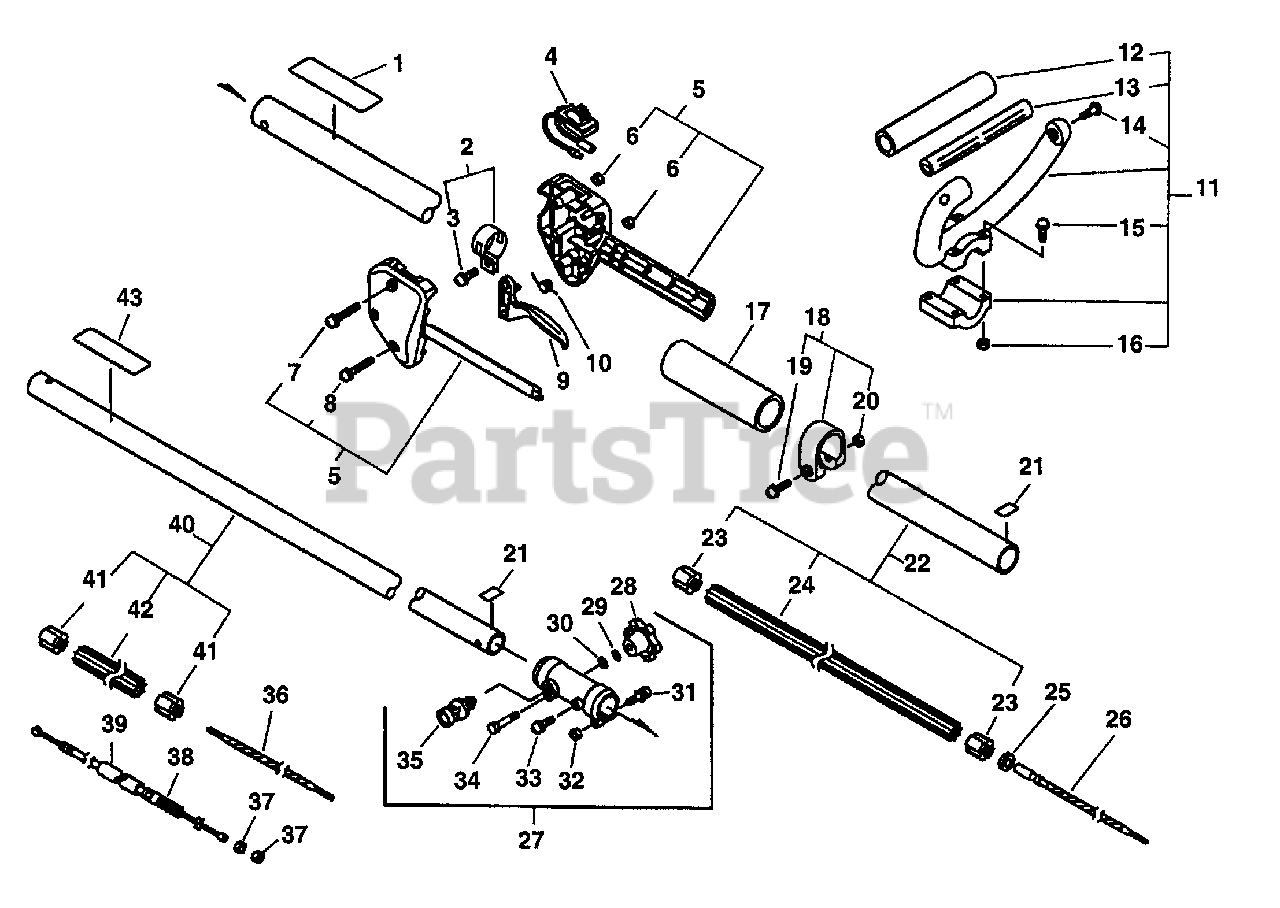

Srm Drive Shaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 89016054130

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes item 3

$11.99

$

In Stock, only 2 left!

0

3

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

4

Echo 16340155630

SWITCH, ON-OFF
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

5

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes items 6 -8

$5.99

$

In Stock, only 3 left!

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

8

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

10

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

11

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes items 12 - 16

$78.99

$

Usually ships in 2-4 days

0

12

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

13

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

14

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

16

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

18

Echo 61027252130

CLAMP KIT

Note: Includes items 19 & 20

$11.99

$

In Stock, only 2 left!

0

19

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

22

Echo 61020656730

MAIN PIPE ASSY
(Superseded to C050001240)

Note: Includes items 23 & 24

$30.99

$

In Stock, Qty 8

0

23

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

24

Echo 61021756730

LINER - FLEXIBLE
(Superseded to C507000230)

$19.99

$

In Stock, only 2 left!

0

25

Echo 10025115130

STOPPER
(Superseded to 10025156630)

$0.99

$

In Stock, Qty 15

0

26

Echo 61001355630

DRIVESHAFT - FLEXIBLE

$30.99

$

In Stock, only 2 left!

0

27

Echo 61060156730

COUPLER ASSY
(Superseded to 61060156731)

Note: Includes items 28 - 35

$

$

Not available

28

Echo 35232527630

KNOB, FASTENER
(Superseded to V299000100)

$

$

Not available

29

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

30

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 90014205030

BOLT 5×30

$0.99

$

In Stock, only 1 left!

0

32

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

33

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

34

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

35

Echo 17830256630

LATCH ASSY

$16.99

$

In Stock, only 2 left!

0

36

Echo 61001356730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000000)

$17.99

$

In Stock, only 1 left!

0

37

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

38

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

39

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

40

Echo 61020654130

MAIN PIPE ASSY
(Superseded to C050001250)

Note: Includes items 41 & 42

$45.99

$

In Stock, only 2 left!

0

41

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

42

Echo 61021752630

LINER - FLEXIBLE
(Superseded to C507000240)

$20.99

$

In Stock, only 3 left!

0

43

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0
