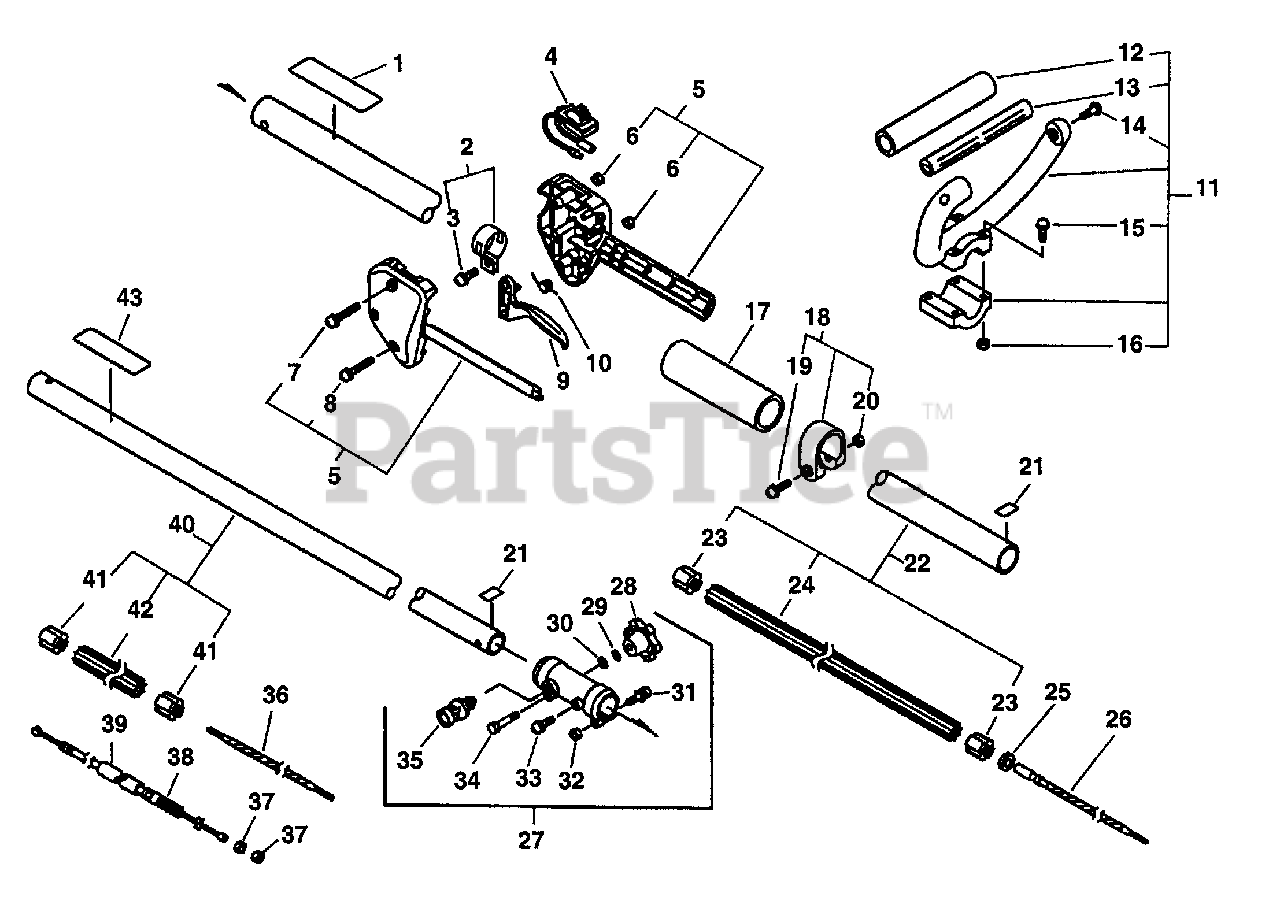

SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Srm Drive Shaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

String Trimmer (Type 1/1E)

Srm Drive Shaft, Coupling, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 89016054130

Label, caution

$1.49

$

Usually ships in 2-4 days

0

2

Echo 30120029430

Band asy
(Superseded to 30120029431)

Note: Includes item 3

$11.99

$

In Stock, only 3 left!

0

3

Echo 90024205014

Screw 5x14

$0.99

$

In Stock, Qty 20+

0

4

Echo 16340155630

Switch, ignition
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

5

Echo 17800352130

Bracket set, throttle

Note: Includes items 6 -8

$5.99

$

In Stock, only 3 left!

0

6

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

8

Echo 90024205025

Screw 5x25

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801052130

Control, throttle

$4.49

$

In Stock, Qty 20+

0

10

Echo 17804342230

Spring, throttle return

$0.99

$

In Stock, Qty 20+

0

11

Echo 35120152130

Handle asy, loop

Note: Includes items 12 - 16

$78.99

$

Usually ships in 2-4 days

0

12

Echo 35121351730

Grip, front handle

$9.99

$

In Stock, only 2 left!

0

13

Echo 35121051730

Handle, front

$5.49

$

Usually ships in 2-4 days

0

14

Echo 90024605030

Screw 5x30

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90024205035

Screw 5x35

$0.99

$

In Stock, Qty 20+

0

16

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 35121352130

Grip, rear handle

$11.99

$

In Stock, Qty 19

0

18

Echo 61027252130

Band

Note: Includes items 19 & 20

$11.99

$

In Stock, only 2 left!

0

19

Echo 90024205028

Screw 5x28

$0.99

$

In Stock, Qty 7

0

20

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 89015204930

Label, location

$0.99

$

In Stock, Qty 14

0

22

Echo 61020656730

Housing asy, d. Shaft (upper)
(Superseded to C050001240)

Note: Includes items 23 & 24

$30.99

$

In Stock, Qty 8

0

23

Echo 61024644730

Stopper

$1.49

$

In Stock, Qty 20+

0

24

Echo 61021756730

Liner, flexible (upper)
(Superseded to C507000230)

$19.99

$

In Stock, only 1 left!

0

25

Echo 10025115130

Cushion
(Superseded to 10025156630)

$0.99

$

In Stock, Qty 15

0

26

Echo 61001355630

Shaft, flexible (upper)

$30.99

$

Usually ships in 2-4 days

0

27

Echo 61060156730

Bracket asy
(Superseded to 61060156731)

Note: Includes items 28 - 35

$

$

Not available

28

Echo 35232527630

Locknut
(Superseded to V299000100)

$

$

Not available

29

Echo 90060500005

Washer, spring 5

$0.99

$

In Stock, Qty 7

0

30

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 90014205030

Bolt 5x30 (w/w,sw)

$0.99

$

In Stock, only 1 left!

0

32

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 90024205012

Screw 5x12

$0.99

$

In Stock, Qty 20+

0

34

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 9

0

35

Echo 17830256630

Latch asy

$16.99

$

In Stock, only 1 left!

0

36

Echo 61001356730

Shaft, flexible (lower)
(Superseded to C506000000)

$17.99

$

In Stock, only 2 left!

0

37

Echo 90050200006

Nut 6

$0.99

$

In Stock, Qty 20+

0

38

Echo 17800144430

Wire, throttle

$12.99

$

In Stock, only 2 left!

0

39

Echo 17812750330

Tube

$1.49

$

In Stock, Qty 8

0

40

Echo 61020654130

Housing asy, d. Shaft (lower-srm)
(Superseded to C050001250)

Note: Includes items 41 & 42

$45.99

$

In Stock, only 2 left!

0

41

Echo 61024644730

Stopper

$1.49

$

In Stock, Qty 20+

0

42

Echo 61021752630

Liner, flexible (lower)
(Superseded to C507000240)

$20.99

$

In Stock, only 3 left!

0

43

Echo 89017740630

Label, caution
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0
