SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Srm Gear Housing, Shield, Tools Parts Diagram

String Trimmer (Type 1/1E)

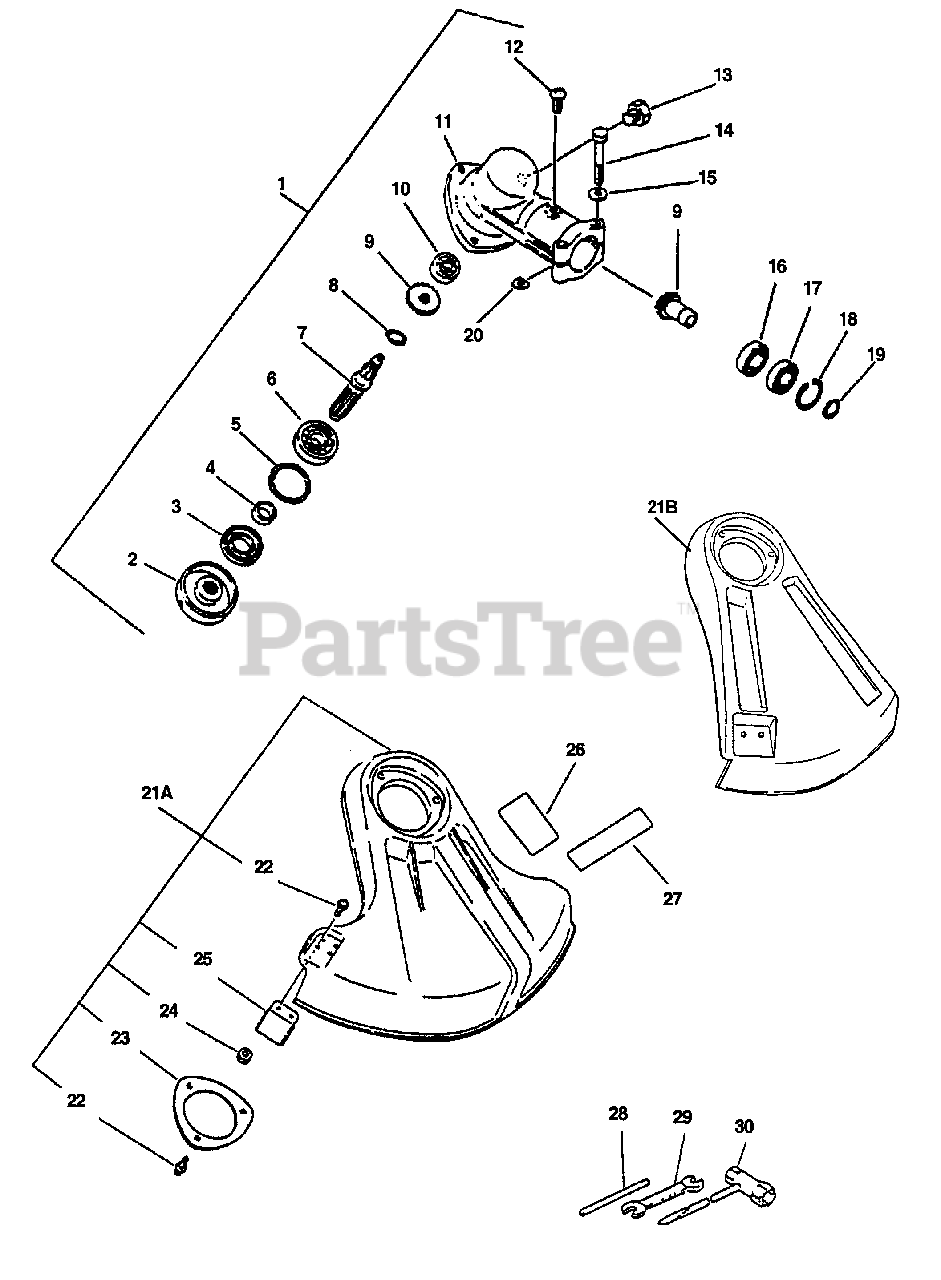

Srm Gear Housing, Shield, Tools Parts Diagram

  • Title

1

Echo 61040247731

GEAR CASE ASSY
(Superseded to 61040247732)

Note: Includes items 2 - 20

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

PLATE, ADAPTOR - UPPER

$14.99

$

In Stock, only 2 left!

0

3

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

4

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

5

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

6

Echo 90081006201

BEARING, BALL 6201

$8.49

$

In Stock, only 2 left!

0

7

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

8

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

9

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

10

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

11

Echo 61046027430

HOUSING, GEAR CASE
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

12

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

13

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

14

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

15

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

17

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

18

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

19

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

20

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

21A

Echo 69900040931

DEBRIS SHIELD KIT
(Superseded to 69900440931)

Note: Includes items 22 - 25

$30.99

$

In Stock, only 3 left!

0

21B

Echo P021001260

DEBRIS SHIELD KIT
(Superseded to P021001391)

Note: Includes items 22, 24 & 25

$17.99

$

In Stock, Qty 20+

0

22

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

23

Echo 69901840830

BRACKET, SHIELD
(Superseded to C552000110)

$2.99

$

In Stock, only 3 left!

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 69901644330

CUTTER, LINE
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

26

Echo 89016844830

LABEL, CAUTION

$3.99

$

Usually ships in 2-4 days

0

27

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

28

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

29

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

30

Echo 89541008030

T-WRENCH
(Superseded to X602000020)

$4.49

$

In Stock, Qty 7

0
