SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Starter, Ignition, Clutch, Fuel System Parts Diagram

String Trimmer (Type 1/1E)

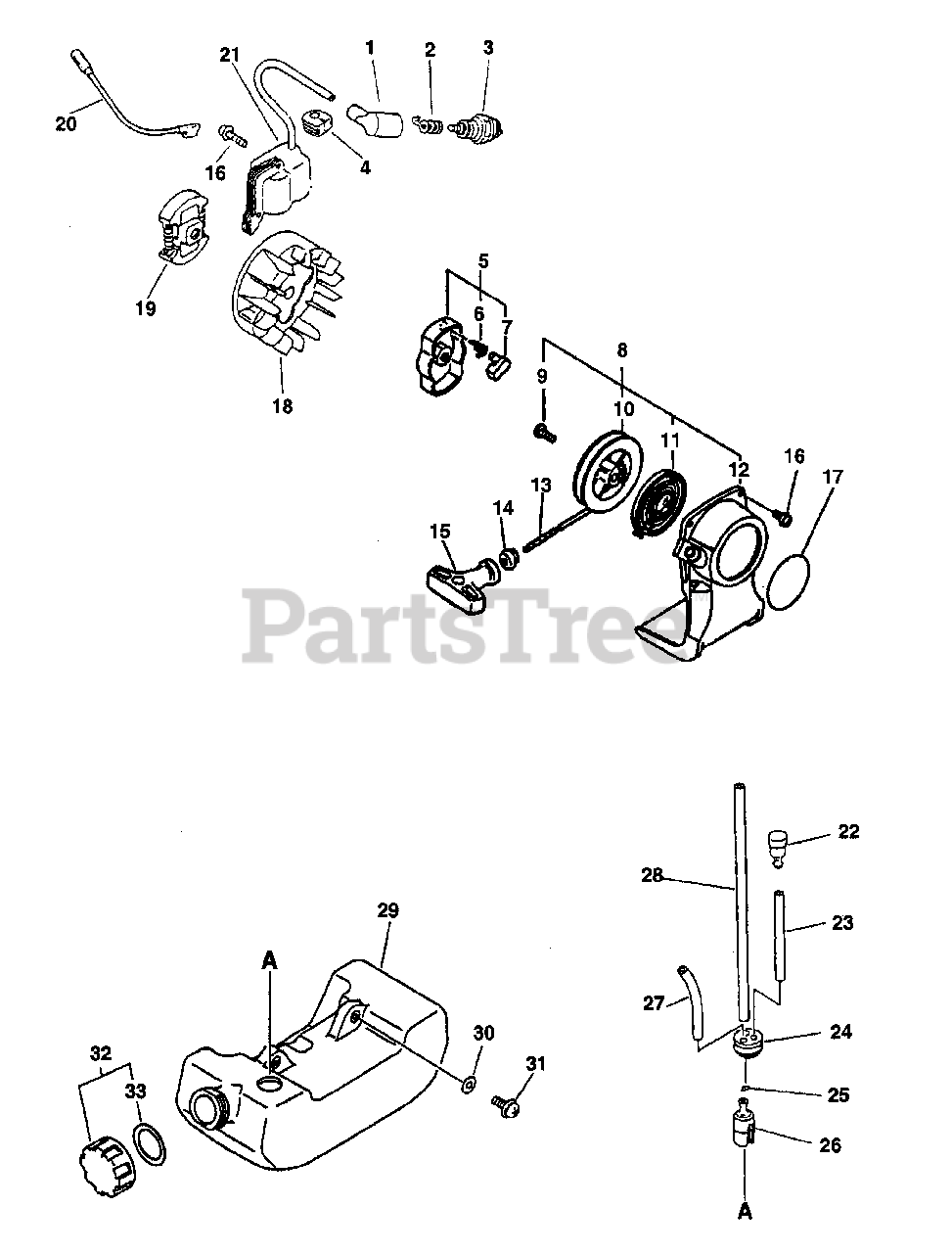

Starter, Ignition, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

3

Echo 15901010230

SPARK PLUG - BPMR7A

Note: Canadian models only

$3.99

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

5

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes items 6 & 7

$11.99

$

In Stock, Qty 9

0

6

Echo 177234-42030

SPRING, RETURN
(Superseded to 17723412220)

$4.99

$

In Stock, Qty 13

0

7

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

8

Echo 17720054130

STARTER ASSY

Note: Includes items 9 - 15

$53.99

$

In Stock, only 3 left!

0

9

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

10

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

11

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

12

Echo 17723244333

CASE, RECOIL STARTER

$48.99

$

In Stock, only 1 left!

0

13

ROPE, STARTER

Note: Use bulk rope 999444 00040 Dia. 3mm (.12 in.) X 890mm (35.0 in.)

$

$

Not available

14

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

15

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

16

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

17

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

18

Echo 156801-44731

FLYWHEEL

Note: S/n 001001 - 007699 type 1

$126.99

$

Usually ships in 2-4 days

0

18

Echo 15680109660

FLYWHEEL

Note: S/n 007700 & up type 1 S/n 501001 & up type 1e

$90.99

$

Usually ships in 2-4 days

0

19

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

20

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

21

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/n 001001 - 007699 type 1

$143.99

$

In Stock, only 1 left!

0

21

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: S/n 007700 & up type 1 S/n 501001 & up type 1e

$124.99

$

Usually ships in 2-4 days

0

22

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

Note: Included in kit 90010

$8.99

$

In Stock, Qty 7

0

23

Echo 13131244330

PIPE K43B3×5×70
(Superseded to 13131239130)

$2.49

$

In Stock, Qty 20+

0

24

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

25

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

26

Echo 131205-07320

FILTER, FUEL

Note: Included in kit 90008

$6.49

$

In Stock, Qty 20+

0

27

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

$3.49

$

In Stock, Qty 10

0

28

Echo 13201013930

PIPE, FUEL
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

29

Echo 13100546830

TANK, FUEL
(Superseded to 13100546831)

$18.99

$

In Stock, only 2 left!

0

30

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

31

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

32

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes item 33 (included in kit 90010)

$5.49

$

In Stock, only 2 left!

0

33

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available
