SRM-2100 SB - Echo String Trimmer (Type 1/1E) (SN: 001001 - 999999) Starter, Ignition, Clutch, Fuel System Parts Diagram

String Trimmer (Type 1/1E)

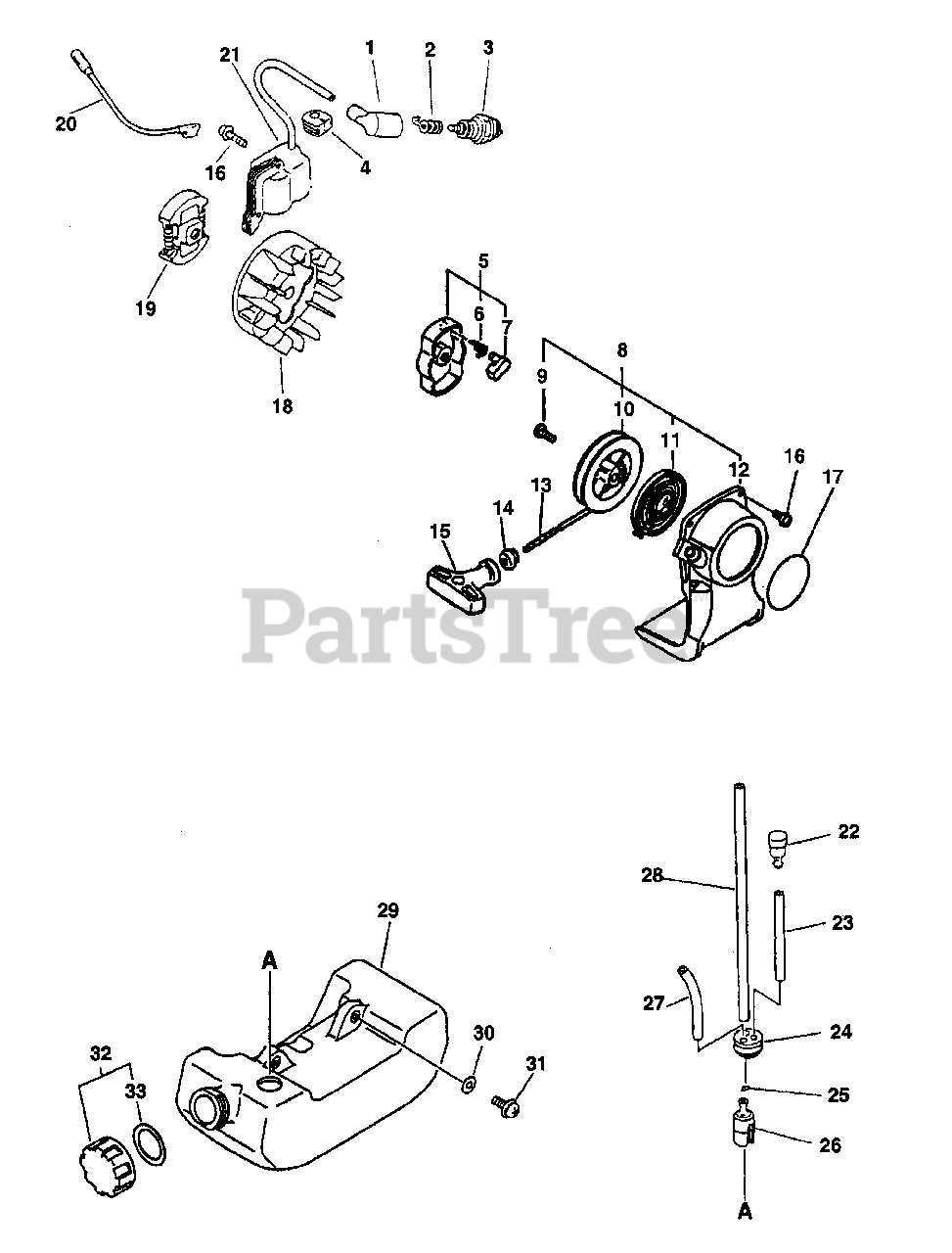

Starter, Ignition, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

2

Echo 15901103432

COIL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 15901010630

PLUG, SPARK BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

3

Echo 15901010230

PLUG, SPARK BPMR-7A

Note: Canadian models only

$3.99

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.49

$

In Stock, Qty 20+

0

5

Echo 17720244330

PAWL ASY, STARTER
(Superseded to 17720244331)

Note: Includes items 6 & 7

$18.99

$

In Stock, Qty 7

0

6

Echo 17723442030

SPRING, RETURN
(Superseded to 17723412220)

$4.49

$

In Stock, Qty 20+

0

7

Echo 17721844330

PAWL, STARTER

$3.99

$

In Stock, Qty 20+

0

8

Echo 17720054130

STARTER ASY

Note: Includes items 9 - 15

$50.99

$

In Stock, Qty 14

0

9

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

10

Echo 17721544430

DRUM, STARTER

$9.99

$

In Stock, Qty 6

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

12

Echo 17723244333

CASE, STARTER

$45.99

$

In Stock, only 1 left!

0

13

ROPE, STARTER

Note: Use bulk rope 999444 00040 Dia. 3mm (.12 in.) X 890mm (35.0 in.)

$

$

Not available

14

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

15

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

16

Echo 90016204022

BOLT, H.S. 4X22

$0.99

$

In Stock, Qty 20+

0

17

Echo 89011849130

LABEL, BRAND
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

18

Echo 15680144731

FLYWHEEL

Note: S/n 001001 - 007699 type 1

$117.99

$

Usually ships in 2-4 days

0

18

Echo 15680109660

FLYWHEEL

Note: S/n 007700 & up type 1 S/n 501001 & up type 1e

$83.99

$

Usually ships in 2-4 days

0

19

Echo 17500049030

CLUTCH ASY
(Superseded to 17500056830)

$30.99

$

In Stock, only 2 left!

0

20

Echo 16202152130

LEAD
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

21

Echo 15660152130

COIL, IGNITION W/O LEAD
(Superseded to 15660152131)

Note: S/n 001001 - 007699 type 1

$133.99

$

In Stock, only 1 left!

0

21

Echo 15662609660

COIL, IGNTION
(Superseded to 15662609661)

Note: S/n 007700 & up type 1 S/n 501001 & up type 1e

$115.99

$

Usually ships in 2-4 days

0

22

Echo 13130056430

VENT ASY
(Superseded to 13130056431)

Note: Included in kit 90010

$8.49

$

In Stock, Qty 12

0

23

Echo 13131244330

PIPE 3X5X70L
(Superseded to 13131239130)

$2.49

$

In Stock, Qty 20+

0

24

Echo 13211546730

GROMMET

$2.49

$

In Stock, Qty 20+

0

25

Echo 13201309820

CLIP

$0.99

$

In Stock, Qty 20+

0

26

Echo 13120507320

STRAINER, FUEL
(Superseded to 13120507321)

Note: Included in kit 90008

$6.49

$

In Stock, Qty 20+

0

27

Echo 13201056330

PIPE 3X6X90

$2.99

$

In Stock, Qty 20+

0

28

Echo 13201013930

PIPE, FUEL
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

29

Echo 13100546830

TANK, FUEL
(Superseded to 13100546831)

$16.99

$

In Stock, only 2 left!

0

30

Echo 90060300005

WASHER 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 90023805016

SCREW 5X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 13100455830

CAP ASY, FUEL TANK
(Superseded to P200000830)

Note: Includes item 33 (included in kit 90010)

$4.99

$

In Stock, Qty 12

0

33

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+
