SRM-211 - Echo String Trimmer (SN: 02001001 - 02999999) Control Handle, Throttle Cable, Ignition Switch Parts Diagram

String Trimmer

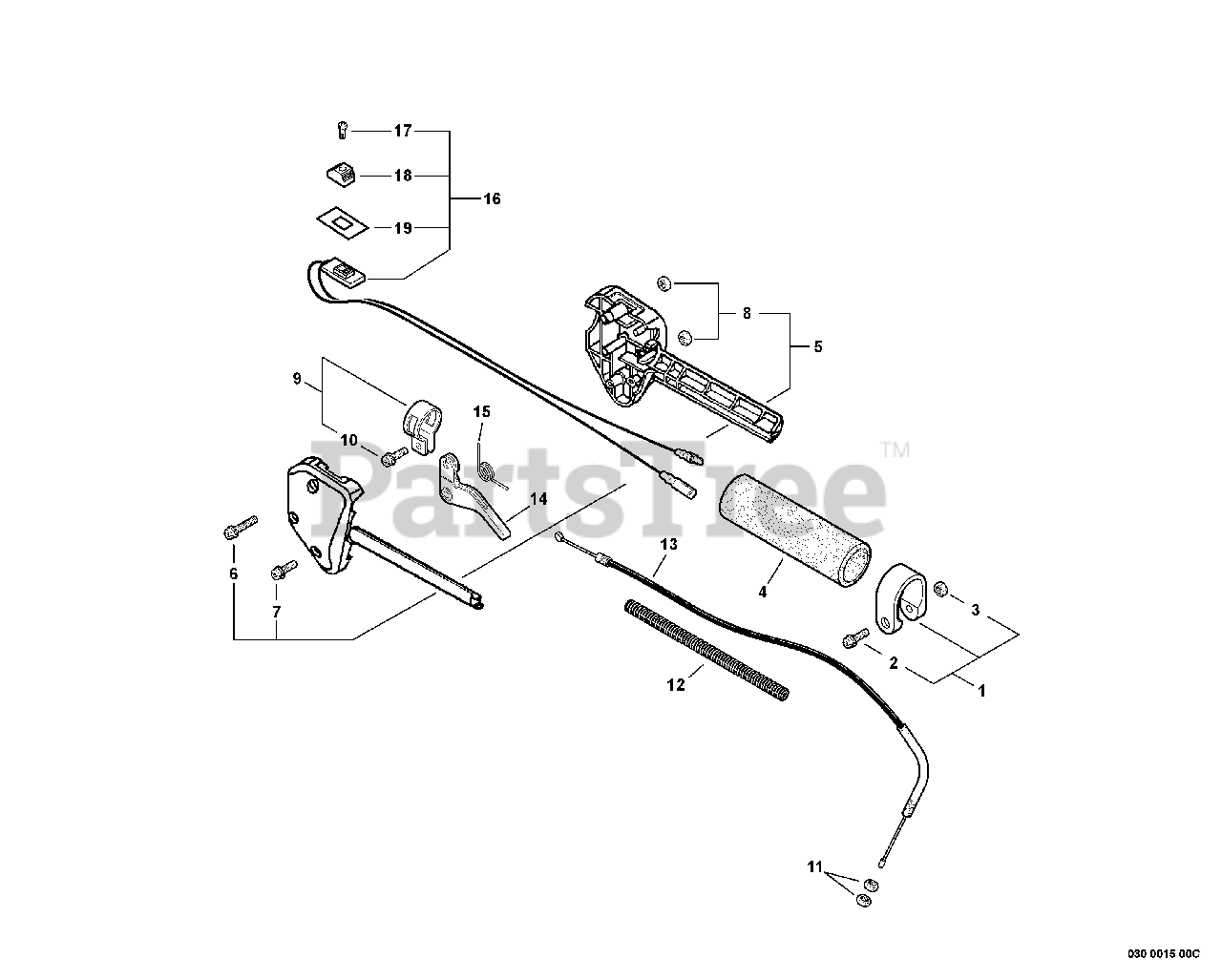

Control Handle, Throttle Cable, Ignition Switch Parts Diagram

  • Title

1

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 2-3

$11.99

$

In Stock, only 2 left!

0

2

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

3

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

5

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes ITEMS 6-8

$5.99

$

In Stock, only 3 left!

0

6

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

7

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 11

$11.99

$

In Stock, only 2 left!

0

10

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

11

Echo 900502-00005

NUT M5

$0.99

$

In Stock, Qty 8

0

12

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

13

Echo 17800156730

CABLE, THROTTLE

$12.99

$

In Stock, only 1 left!

0

14

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

15

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

16

Echo 16340155631

SWITCH ASSY, ON-OFF

Note: INCLUDES ITEMS 18-19

$10.99

$

In Stock, only 2 left!

0

17

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

18

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

19

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0
