SRM-211 - Echo String Trimmer (SN: 02001001 - 02999999) Starter -- Standard Parts Diagram

String Trimmer

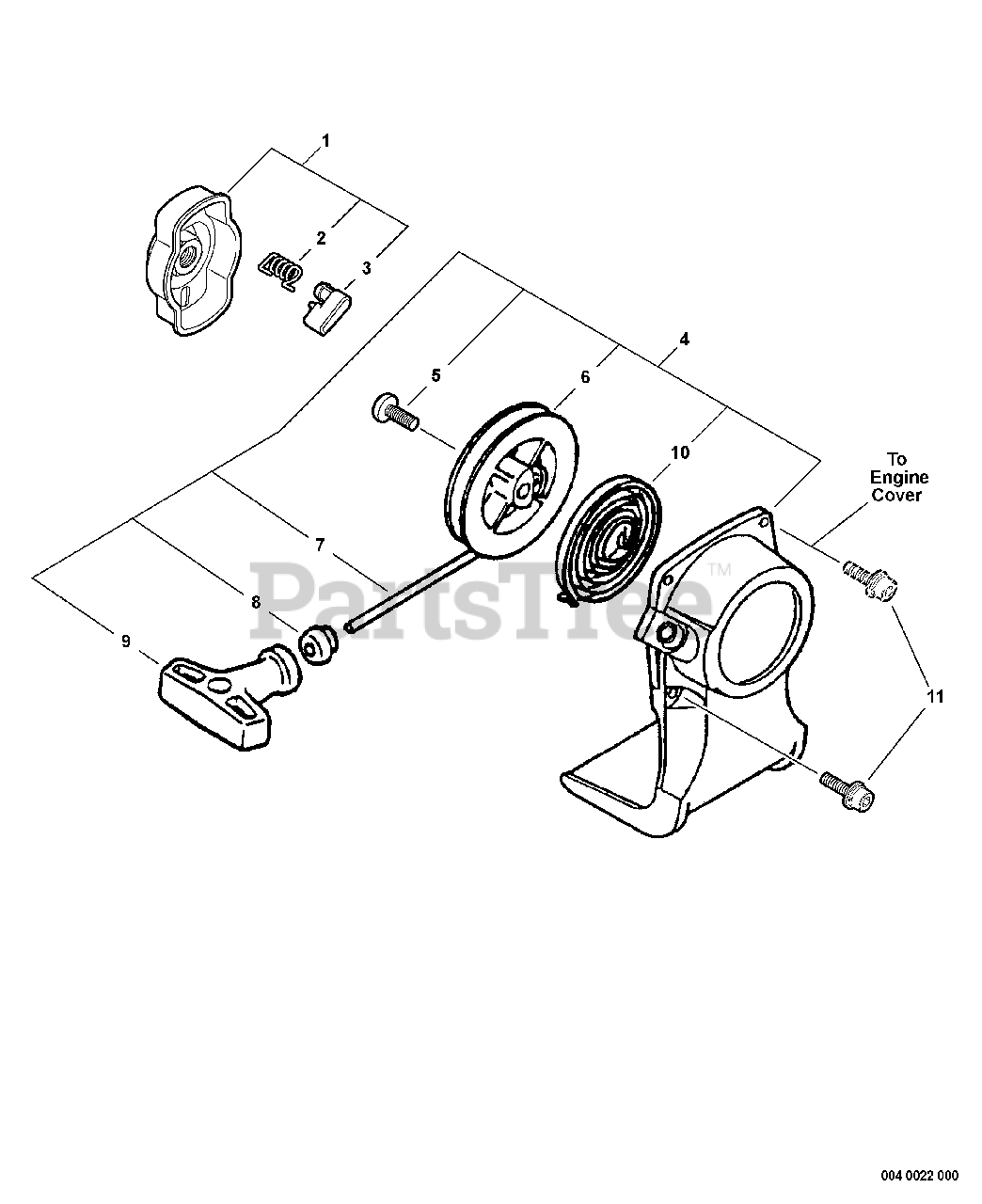

Starter -- Standard Parts Diagram

  • Title

1

Echo 17720244331

PAWL ASSY, STARTER
(Superseded to 17720212220)

Note: INCLUDES ITEMS 2-3

$19.99

$

In Stock, only 2 left!

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720054130

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$53.99

$

In Stock, only 3 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

7

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

10

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

11

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0
