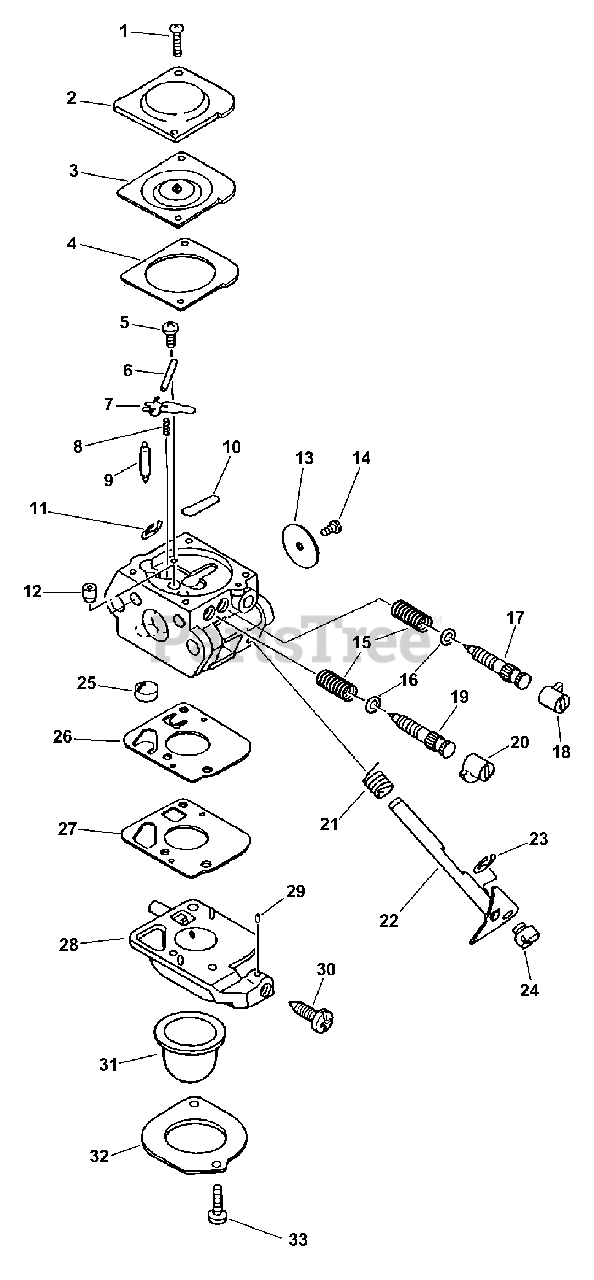

SRM-2110 - Echo String Trimmer (Type 1) Carburetor S/N: 205482 - 290322, 018530 - 024170 Parts Diagram

String Trimmer (Type 1)

Carburetor S/N: 205482 - 290322, 018530 - 024170 Parts Diagram

  • Title

Echo 12520049030

CARBURETOR C1U-K47
(Superseded to 12520013311)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$87.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$0.99

$

In Stock, Qty 10

0

2

Echo 12534213210

COVER, METERING
(Superseded to 12534252130)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$4.49

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: USE REPAIR KIT P/N 12530049030 AND GASKET/DIAPHRAGM KIT P/N 12530349030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

4

------------------

GASKET, METERING

Note: USE REPAIR KIT P/N 12530049030 AND GASKET/DIAPHRAGM KIT P/N 12530349030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

7

------------------

LEVER, METERING

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

10

------------------

PLUG, WELCH

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

11

Echo 12532715130

RING, RETAINING

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$0.99

$

In Stock, Qty 7

0

12

Echo 12537649030

NOZZLE, CHECK VALVE
(Superseded to Discontinued)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

13

Echo 12531649030

VALVE, THROTTLE

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$2.99

$

Usually ships in 2-4 days

0

14

Echo 12531413930

SCREW

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531942030

SPRING

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.49

$

In Stock, only 1 left!

0

16

Echo 12535320560

WASHER

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$0.99

$

Usually ships in 2-4 days

0

17

Echo 12531807360

NEEDLE - LOW SPEED

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$6.49

$

Usually ships in 2-4 days

0

18

Echo 12532909860

CAP, LIMITER

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$2.49

$

In Stock, Qty 13

0

19

Echo 12532007360

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

20

Echo 12532939030

CAP, LIMITER

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.99

$

In Stock, Qty 11

0

21

Echo 12531342030

SPRING, RETURN

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.49

$

In Stock, Qty 12

0

22

Echo 12531749030

SHAFT, THROTTLE
(Superseded to Discontinued)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

23

Echo 12532713930

RING, RETAINING

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$0.99

$

In Stock, Qty 7

0

24

Echo 12537242030

SWIVEL

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$4.99

$

Usually ships in 2-4 days

0

25

------------------

STRAINER

Note: USE REPAIR KIT P/N 12530049030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

26

------------------

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12530049030 AND GASKET/DIAPHRAGM KIT P/N 12530349030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

27

------------------

GASKET, PUMP

Note: USE REPAIR KIT P/N 12530049030 AND GASKET/DIAPHRAGM KIT P/N 12530349030; SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$

$

Not available

28

Echo P005000990

BASE, PURGE

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$25.99

$

In Stock, only 2 left!

0

29

Echo 12537813930

PIECE, FRICTION

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12533413930

SCREW, IDLE ADJUST

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.99

$

In Stock, only 4 left!

0

31

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$6.99

$

In Stock, Qty 20+

0

32

Echo 12536311610

RETAINER, PURGE BULB

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$2.49

$

In Stock, Qty 20+

0

33

Echo 12531011610

SCREW, RETAINER

Note: SRM-2100 S/N 205482-290322 & SRM-2110 S/N 018530-024170

$1.49

$

In Stock, Qty 9

0

Echo 12530049030

REPAIR KIT
(Superseded to 12530013310)

$20.99

$

In Stock, only 3 left!

0

Echo 12530349030

DIAPHRAGM/GASKET KIT
(Superseded to 12530313310)

$9.99

$

In Stock, only 2 left!

0
