SRM-2110 - Echo String Trimmer (Type 1) Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1)

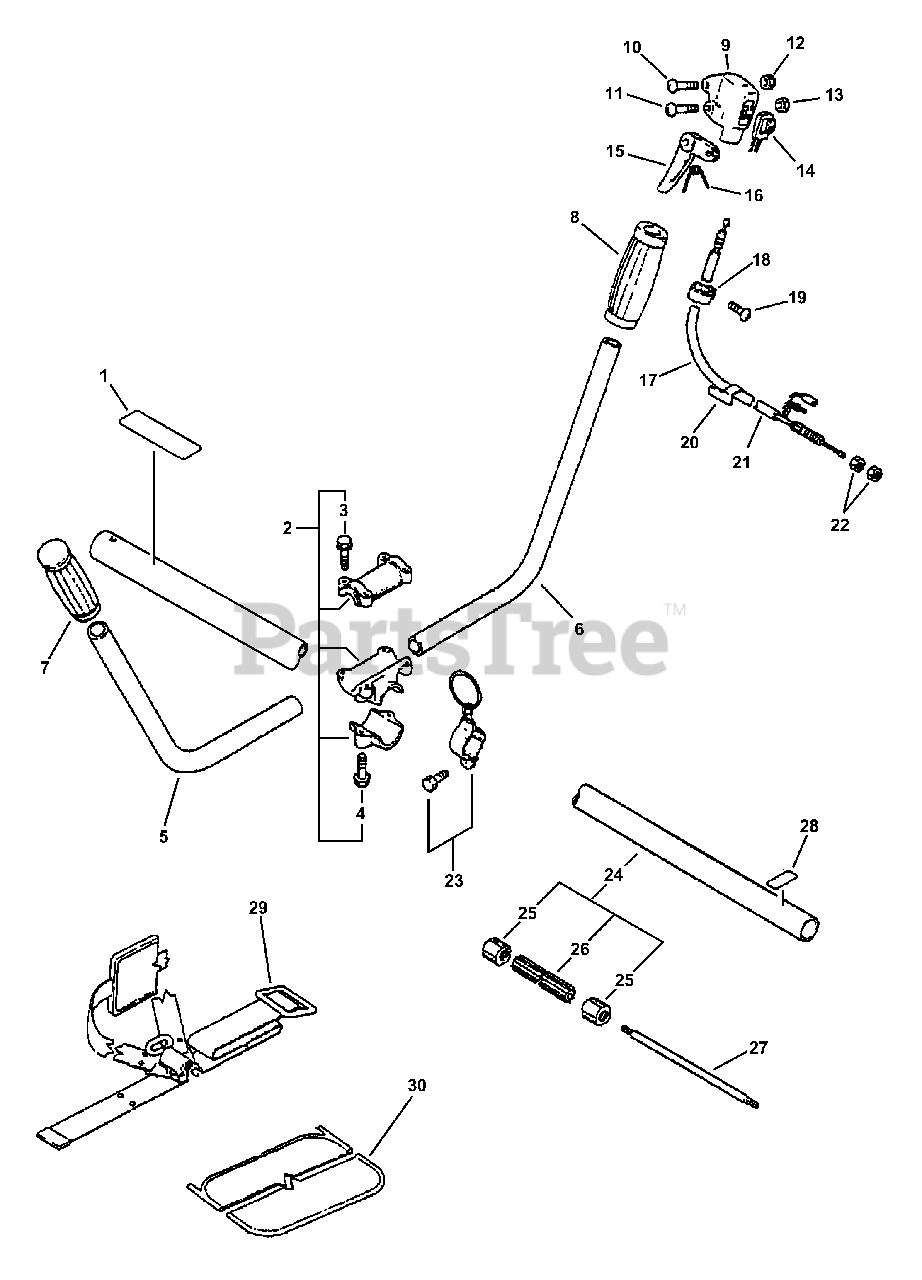

Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 89016054130

LABEL, CAUTION

Note: S/N 001001-503953

$1.49

$

Usually ships in 2-4 days

0

2

Echo P021000460

BRACKET KIT, HANDLE

Note: INCLUDES ITEMS 3-4; S/N 001001-503953

$34.99

$

Usually ships in 2-4 days

0

3

Echo 900142-05025

BOLT - 5×25

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 9

0

4

Echo 900142-06030

BOLT - 6×30

Note: S/N 001001-503953

$0.99

$

Usually ships in 2-4 days

0

5

Echo 351210-05530

HANDLE, LEFT

Note: S/N 001001-503953

$

$

Not available

6

Echo 35101005530

HANDLE

Note: S/N 001001-503953

$33.99

$

Usually ships in 2-4 days

0

7

Echo 351311-02330

GRIP, HANDLE

Note: S/N 001001-503953

$7.49

$

In Stock, only 2 left!

0

8

Echo 35131522130

GRIP

Note: S/N 001001-503953

$12.99

$

Usually ships in 2-4 days

0

9

Echo 17802451830

BODY, THROTTLE CONTROL

Note: S/N 001001-503953

$8.49

$

Usually ships in 2-4 days

0

10

Echo 90022005025

SCREW 5×25

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 19

0

11

Echo 17811005330

SCREW

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 11

0

12

Echo 90056000005

NUT, LOCK M5

Note: S/N 001001-503953

$1.49

$

In Stock, Qty 14

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 20+

0

14

Echo 163401-49230

IGNITION SWITCH ASSY
(Superseded to A440000340)

Note: S/N 001001-503953

$14.99

$

In Stock, only 1 left!

0

15

Echo 17801006460

TRIGGER, THROTTLE

Note: S/N 001001-503953

$5.99

$

In Stock, only 2 left!

0

16

Echo 17804305230

SPRING

Note: S/N 001001-503953

$0.99

$

In Stock, only 3 left!

0

17

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

Note: S/N 001001-503953

$

$

Not available

18

Echo 17810605330

CLAMP

Note: S/N 001001-503953

$5.99

$

Usually ships in 2-4 days

0

19

Echo 90022005010

SCREW 5×10

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 7

0

20

Echo 17811104930

BRACKET

Note: S/N 001001-503953

$1.99

$

Usually ships in 2-4 days

0

21

Echo 17812708030

TUBE
(Superseded to V475002270)

Note: S/N 001001-503953

$1.99

$

Usually ships in 2-4 days

0

22

Echo 178021-05530

NUT

Note: S/N 001001-503953

$3.49

$

Usually ships in 2-4 days

0

23

Echo C646000060

HANGER SET, HARNESS
(Superseded to P021046740)

Note: S/N 001001-503953

$3.99

$

In Stock, Qty 20+

0

24

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: INCLUDES ITEMS 25-26; S/N 001001-503953

$55.99

$

Usually ships in 2-4 days

0

25

Echo 61024644730

STOPPER

Note: S/N 001001-503953

$1.49

$

In Stock, Qty 20+

0

26

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

Note: S/N 001001-503953

$30.99

$

In Stock, Qty 7

0

27

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

Note: S/N 001001-503953

$20.99

$

In Stock, Qty 5

0

28

Echo 890152-04930

LABEL - ALIGNMENT

Note: S/N 001001-503953

$0.99

$

In Stock, Qty 11

0

29

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

Note: S/N 001001-503953

$25.99

$

In Stock, only 2 left!

0

30

Echo C652000000

PAD, HIP

$28.99

$

Usually ships in 2-4 days

0
