SRM-2110 - Echo String Trimmer (Type 1) Engine, Crankcase, Cylinder Cover Parts Diagram

String Trimmer (Type 1)

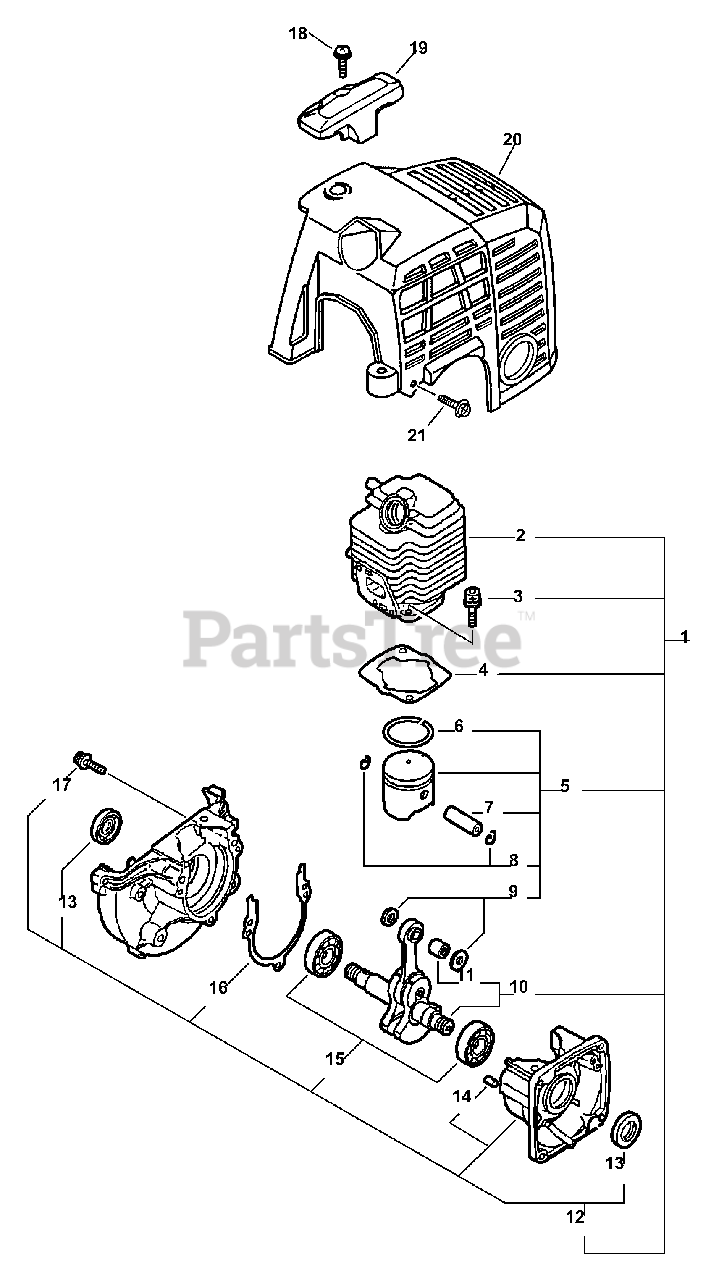

Engine, Crankcase, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1026

SHORT BLOCK -- SB1026
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-17; Optional Engine Repower

$

$

Not available

2

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

4

Echo 10101044332

GASKET, CYLINDER

Note: CONTAINED IN GASKET KIT P/N 88900042033

$4.99

$

In Stock, Qty 13

0

5

Echo 10000044331

PISTON KIT

Note: INCLUDES ITEMS

$78.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 15

0

7

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

10

Echo 10010044733

CRANKSHAFT ASSY
(Superseded to A011000101)

Note: Includes ITEM 11

$186.99

$

Usually ships in 2-4 days

0

11

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 13-17

$157.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 7

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

15

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

16

Echo 10024242030

GASKET, CRANKCASE

Note: CONTAINED IN GASKET KIT P/N 88900042033

$1.99

$

In Stock, Qty 10

0

17

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 11

0

18

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

19

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

20

Echo 10151448930

COVER, ENGINE

$14.99

$

In Stock, only 2 left!

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

Echo 88900042033

GASKET KIT
(Superseded to 88900042034)

Note: GASKET KIT; CONTAINS THE FOLLOWING

$19.99

$

In Stock, only 2 left!

0

Echo 10101044332

GASKET, CYLINDER

Note: GASKET KIT

$4.99

$

In Stock, Qty 13

0

Echo 10024242030

GASKET, CRANKCASE

Note: GASKET KIT

$1.99

$

In Stock, Qty 10

0

Echo 13001642031

GASKET, INTAKE

Note: GASKET KIT

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: GASKET KIT

$2.99

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

Note: GASKET KIT

$2.99

$

In Stock, Qty 6

0

Echo V104000160

GASKET, EXHAUST

Note: GASKET KIT

$2.49

$

In Stock, Qty 20+

0
