SRM-2110 - Echo String Trimmer (Type 1) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1)

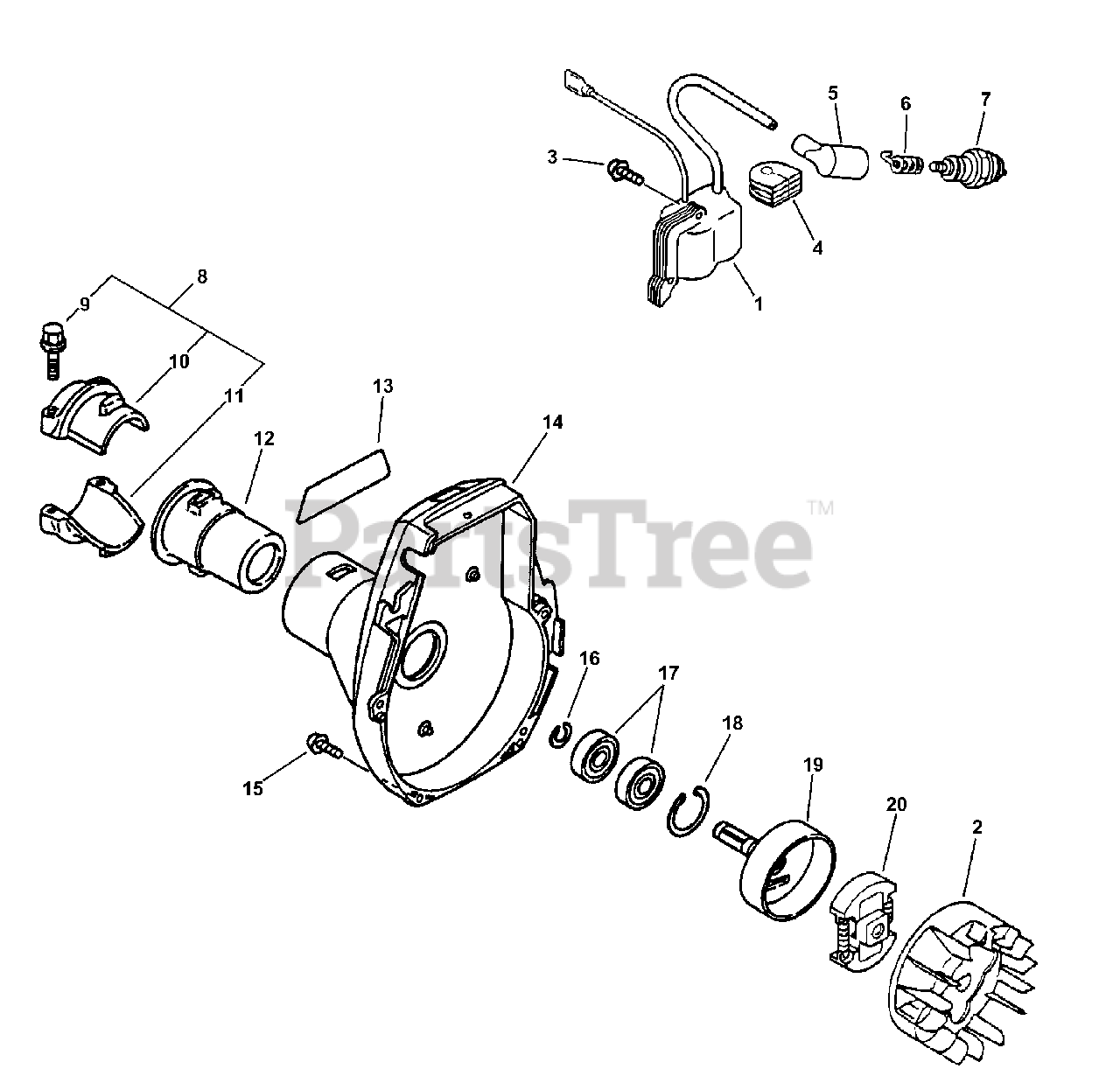

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 15660144731

COIL, IGNITION
(Superseded to 15660144732)

Note: SRM-2100 S/N 001001 - 289257 & SRM-2110 S/N 001001 - 024169

$

$

Not available

2

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

Note: SRM-2100 S/N 001001 - 289257 & SRM-2110 S/N 001001 - 024169

$126.99

$

Usually ships in 2-4 days

0

1

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: SRM-2100 S/N 289258 & UP & SRM-2110 S/N 024170 & UP

$124.99

$

Usually ships in 2-4 days

0

2

Echo 15680109660

FLYWHEEL

Note: SRM-2100 S/N 289258 & UP & SRM-2110 S/N 024170 & UP

$90.99

$

Usually ships in 2-4 days

0

3

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 16

0

5

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

6

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

7

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

8

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 9-11

$21.99

$

Usually ships in 2-4 days

0

9

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

10

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

11

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$9.99

$

Usually ships in 2-4 days

0

12

Echo 61091055230

CUSHION

$8.49

$

In Stock, only 2 left!

0

13

Echo 89011554130

LABEL - MODEL SRM-2100

$3.99

$

Usually ships in 2-4 days

0

13

Echo 89011254130

LABEL - MODEL SRM-2110

$3.99

$

Usually ships in 2-4 days

0

14

Echo 10150352131

CASE, FAN

$78.99

$

Usually ships in 2-4 days

0

15

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 12

0

16

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

17

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

18

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$16.99

$

In Stock, Qty 5

0

20

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 2 left!

0
