SRM-2110 - Echo String Trimmer (Type 1E) Ignition, Fan Case Parts Diagram

String Trimmer (Type 1E)

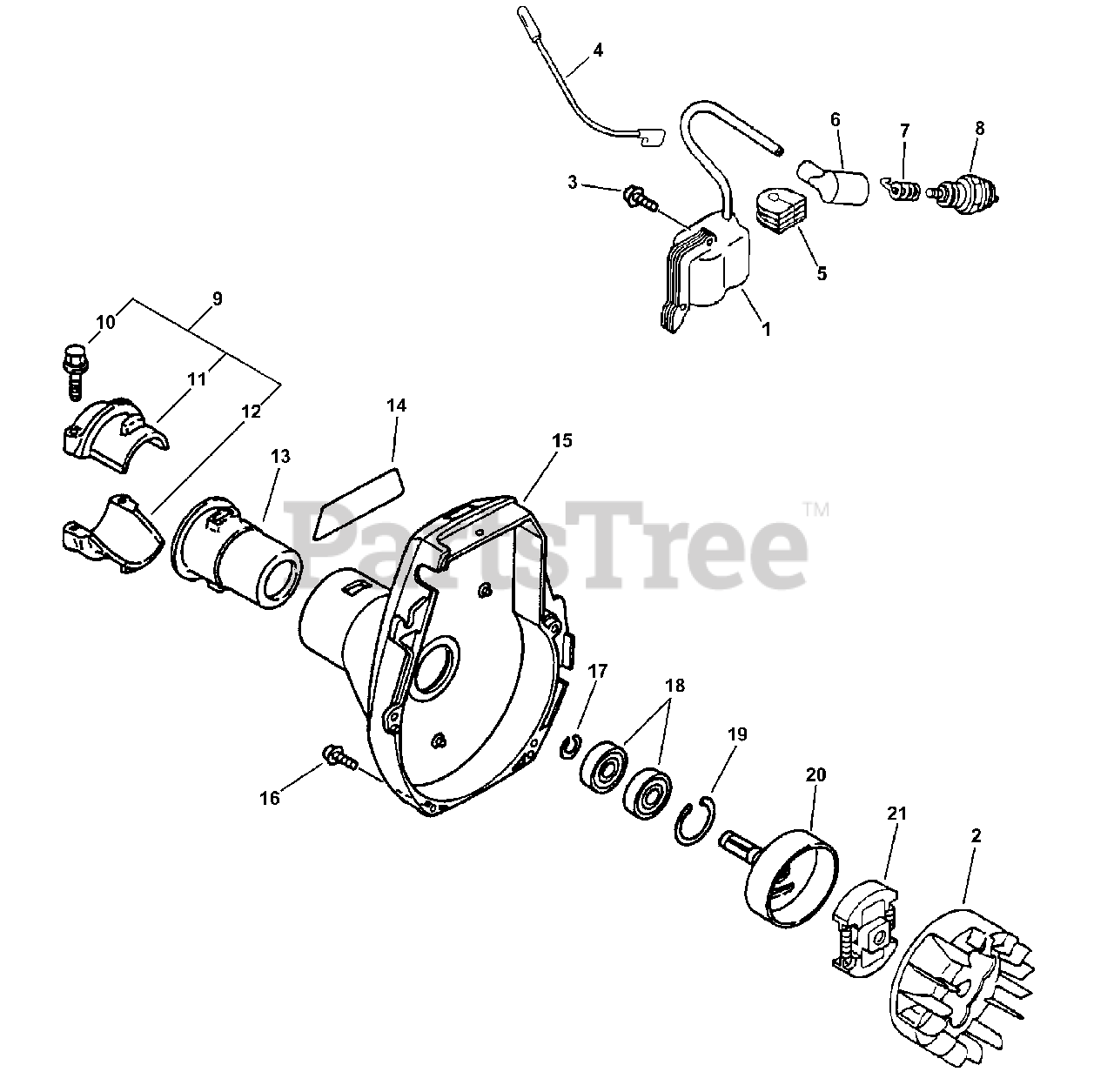

Ignition, Fan Case Parts Diagram

  • Title

1

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042

$143.99

$

In Stock, only 1 left!

0

2

Echo 156801-44731

FLYWHEEL

Note: SRM-2100 TYPE 1E & SRM-2110 TYPE 1E - S/N 001001-008042

$126.99

$

Usually ships in 2-4 days

0

1

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP

$124.99

$

Usually ships in 2-4 days

0

2

Echo 15680109660

FLYWHEEL

Note: SRM-2100 TYPE 1E - S/N 008043 & UP & SRM-2110 TYPE 1E - S/N 501001 & UP

$90.99

$

Usually ships in 2-4 days

0

3

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

4

Echo 16202152830

LEAD
(Superseded to V485001080)

$4.49

$

In Stock, only 2 left!

0

5

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

6

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

7

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

9

Echo 61090355230

RETAINER KIT

Note: Includes ITEMS 10-12

$21.99

$

Usually ships in 2-4 days

0

10

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

11

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

12

Echo A575000100

HOLDER - LOWER

$9.99

$

Usually ships in 2-4 days

0

13

Echo 61091055230

CUSHION Ø25

$8.49

$

In Stock, only 2 left!

0

14

Echo 89011554130

LABEL - MODEL SRM-2100

$3.99

$

In Stock, only 1 left!

0

14

Echo 89011254130

LABEL - MODEL SRM-2110

$3.99

$

Usually ships in 2-4 days

0

15

Echo 10150352131

COVER ASSY, FAN

$78.99

$

Usually ships in 2-4 days

0

16

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

17

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

18

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

19

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

20

Echo 17500548931

DRUM, CLUTCH

$16.99

$

In Stock, only 2 left!

0

21

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0
