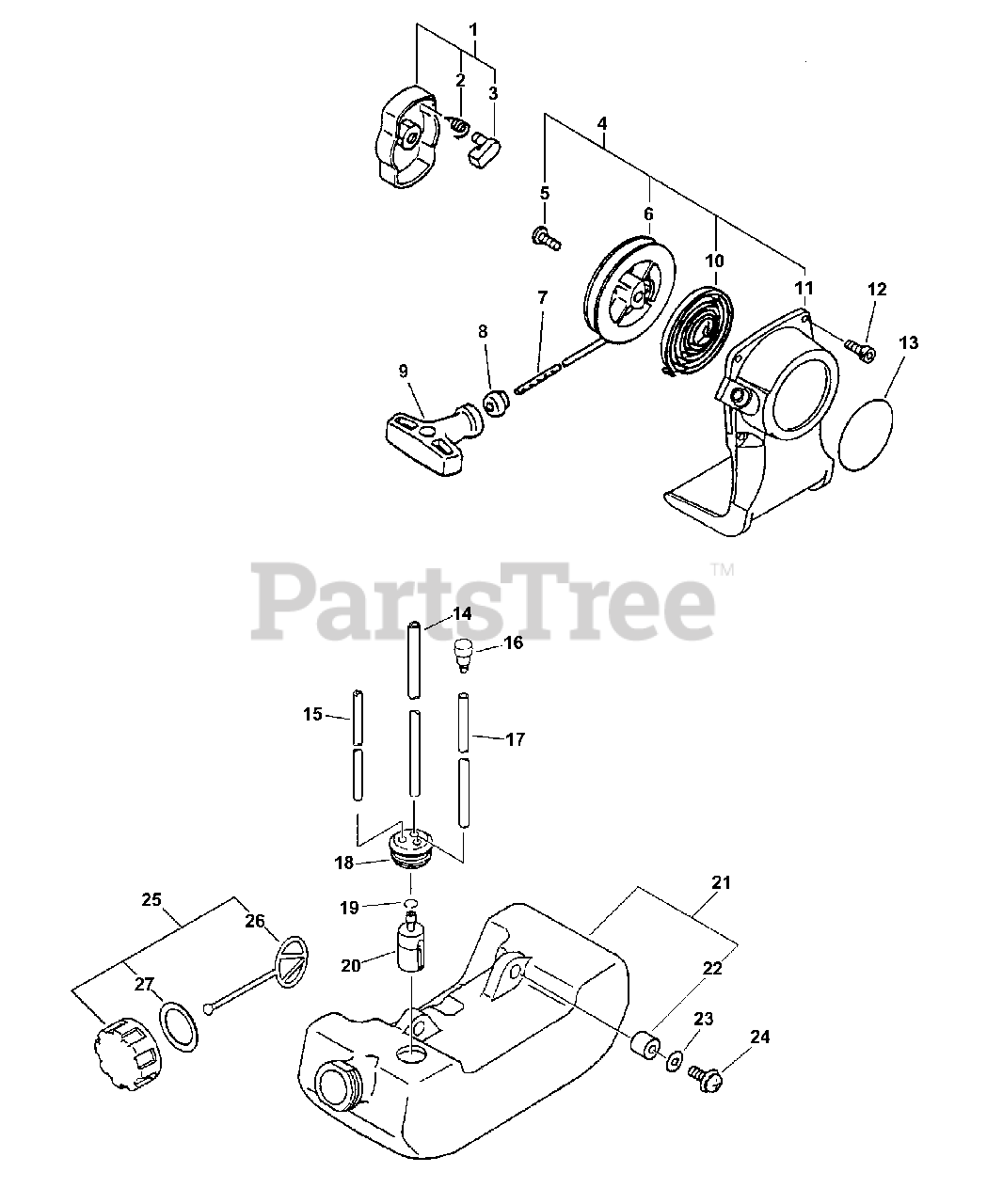

SRM-2110 - Echo String Trimmer (Type 1E) Starter, Fuel System Parts Diagram

String Trimmer (Type 1E)

Starter, Fuel System Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 2-3

$11.99

$

In Stock, Qty 9

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720054130

STARTER ASSY

Note: INCLUDES ITEMS 5-11

$53.99

$

In Stock, only 3 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

7

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

10

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

11

Echo 17723244333

CASE, RECOIL STARTER

$48.99

$

In Stock, only 1 left!

0

12

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

14

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

15

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

16

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

17

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

18

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

19

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

20

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

21

Echo 13100546831

TANK, FUEL

Note: Includes ITEM 22

$18.99

$

In Stock, only 2 left!

0

22

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

23

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEM 26

$7.49

$

In Stock, Qty 9

0

26

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

27

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

Echo 99944444000

3 MM (1/8")×1000 MM (39-1/2"), BULK

Note: OPTIONAL

$

$

Currently unavailable

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: OPTIONAL

$50.99

$

In Stock, only 2 left!

0

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!
