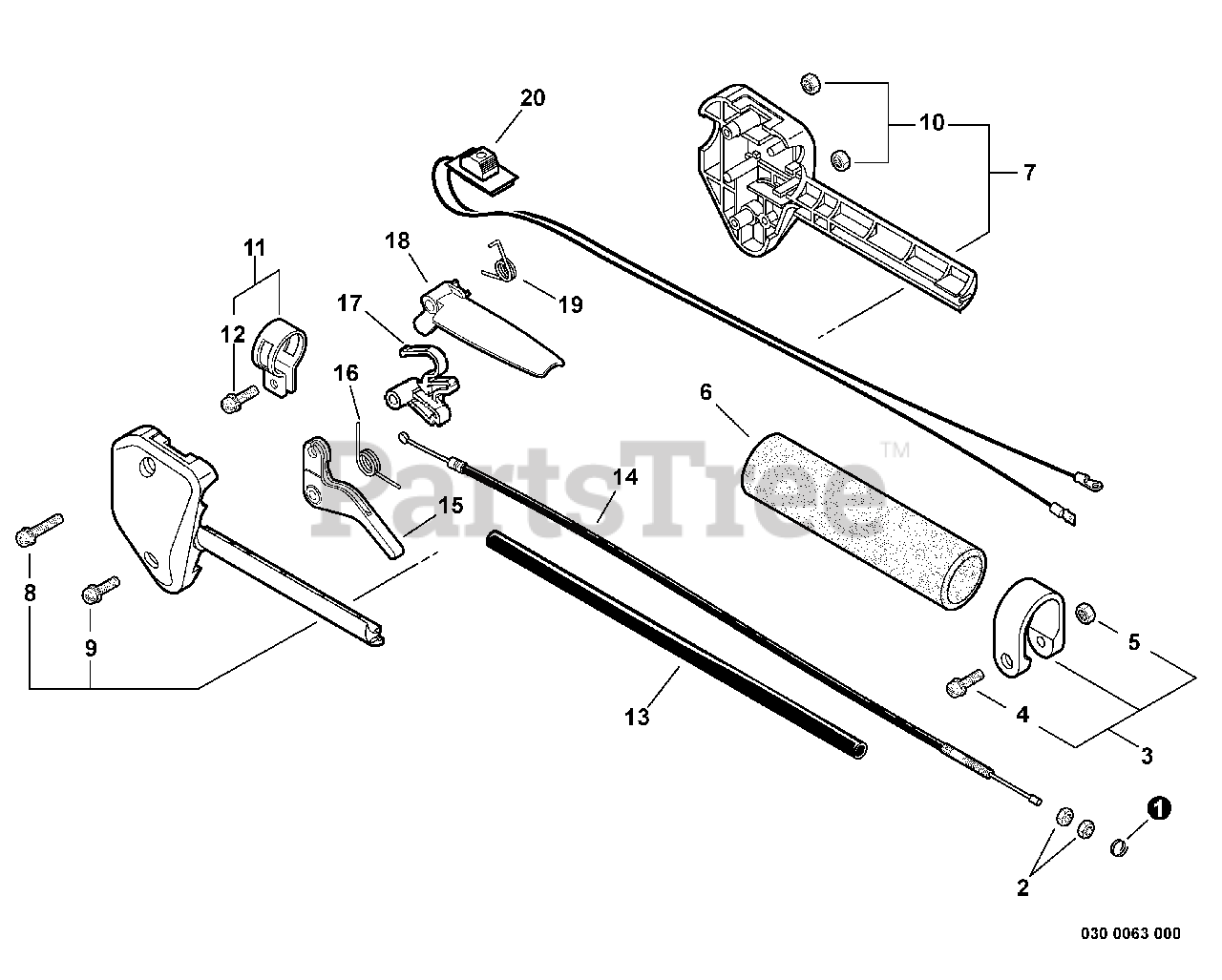

SRM-22 GES - Echo String Trimmer (Original Version) Control Handle, Throttle Cable, Ignition Switch Parts Diagram

String Trimmer

Control Handle, Throttle Cable, Ignition Switch Parts Diagram

  • Title

1

Echo V490000440

CLIP

$2.99

$

Usually ships in 2-4 days

0

2

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 4-5

$11.99

$

In Stock, only 2 left!

0

4

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo C403000140

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

7

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 8-10

$5.99

$

In Stock, only 3 left!

0

8

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

9

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 12

$11.99

$

In Stock, only 3 left!

0

12

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

13

Echo 17812724430

TUBE, PROTECTIVE

$1.49

$

Usually ships in 2-4 days

0

14

Echo V430001520

CABLE, THROTTLE

$13.99

$

Usually ships in 2-4 days

0

15

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

16

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

17

Echo 17801252630

LOCKOUT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

18

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$3.99

$

In Stock, only 3 left!

0

19

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 17

0

20

Echo A440000651

IGNITION SWITCH ASSY

$13.99

$

Usually ships in 2-4 days

0
