SRM-22 GES - Echo String Trimmer (SN: S55822001001 - S55822999999) Gear Case S/N: S55822007543 - S55822999999 Parts Diagram

String Trimmer

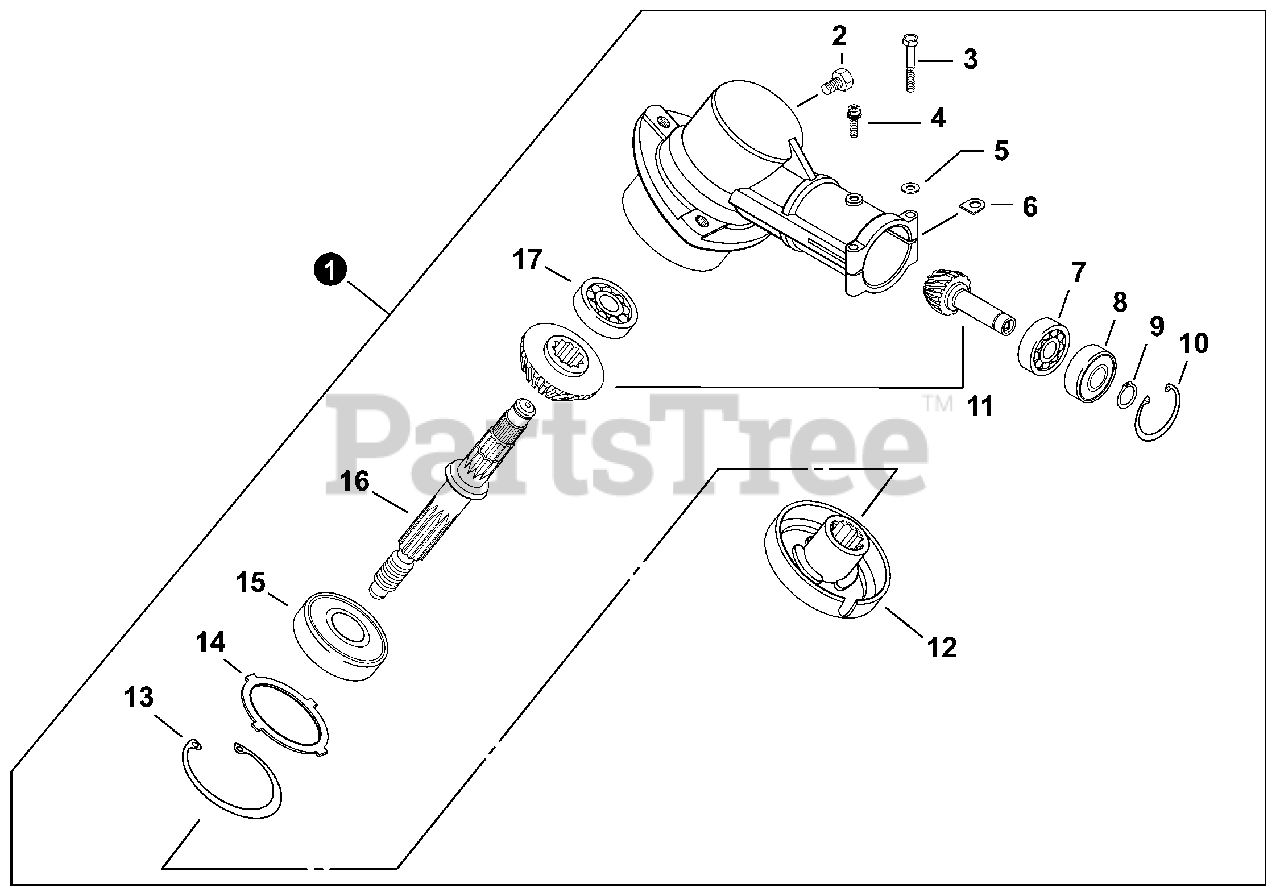

Gear Case S/N: S55822007543 - S55822999999 Parts Diagram

  • Title

1

Echo P021009543

GEAR CASE ASSY

Note: Includes Items 2-17

$146.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8x8

$1.99

$

In Stock, only 1 left!

0

3

Echo 90010005035

BOLT 5x35 SP

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024205010

SCREW 5x10

$0.99

$

In Stock, Qty 20+

0

5

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 7

0

7

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 7

0

8

Echo 90085806900

BEARING, BALL 6900Z

$22.99

$

In Stock, Qty 8

0

9

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, SNAP 22

$1.99

$

In Stock, only 2 left!

0

11

Echo 61030044830

GEAR SET

$88.99

$

Usually ships in 2-4 days

0

12

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$19.99

$

In Stock, only 1 left!

0

13

Echo 90070200032

RING, SNAP 32

$1.99

$

In Stock, Qty 20+

0

14

Echo V340000180

WASHER

$1.49

$

In Stock, Qty 20+

0

15

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, Qty 8

0

16

Echo C534000270

SHAFT, GEAR

$67.99

$

In Stock, Qty 6

0

17

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 16

0
