SRM-22 GES - Echo String Trimmer (SN: U54126001001 - U54126999999) Gear Case Parts Diagram

String Trimmer

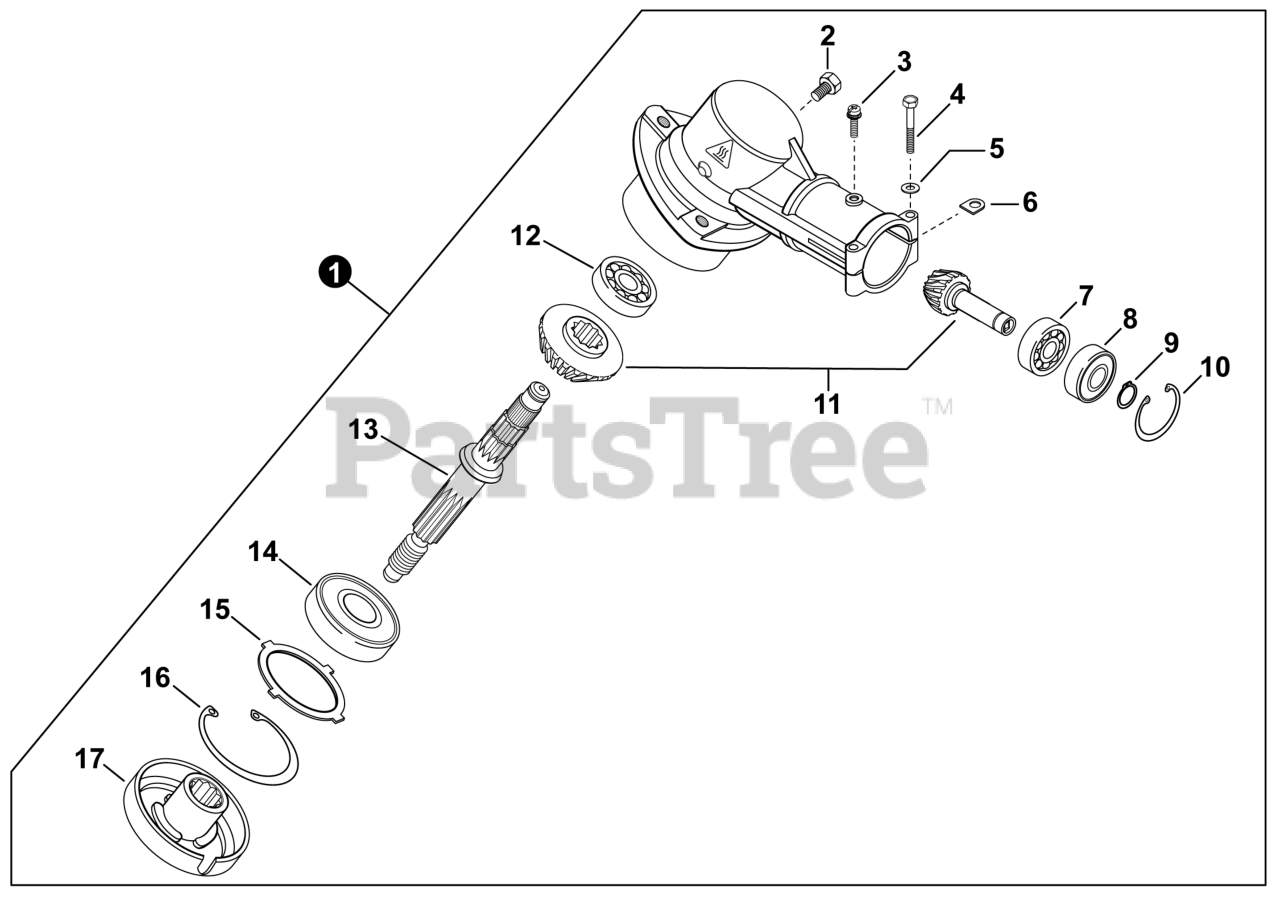

Gear Case Parts Diagram

  • Title

1

Echo P021054170

GEAR CASE ASSY

Note: Includes Items 2-17

$158.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8x8

$2.49

$

In Stock, only 4 left!

0

3

Echo 90024205010

SCREW 5x10

$0.99

$

In Stock, Qty 20+

0

4

Echo 9111905035

BOLT HSH CB-5x35

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

7

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

8

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

9

Echo 90070600010

RING, SNAP 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, SNAP 22

$2.49

$

In Stock, Qty 14

0

11

Echo 61030044830

GEAR SET

$106.99

$

Usually ships in 2-4 days

0

12

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

13

Echo C534000270

SHAFT, GEAR

$80.99

$

In Stock, only 4 left!

0

14

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 4 left!

0

15

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 12

0

16

Echo 90070200032

RING, SNAP 32

$2.49

$

In Stock, only 2 left!

0

17

Echo C535001240

PLATE, ADAPTOR - UPPER

$23.99

$

In Stock, Qty 9

0
