SRM-22 GESU - Echo Brush Cutter (SN: S55822001001 - S55822999999) Gear Case Parts Diagram

Brush Cutter

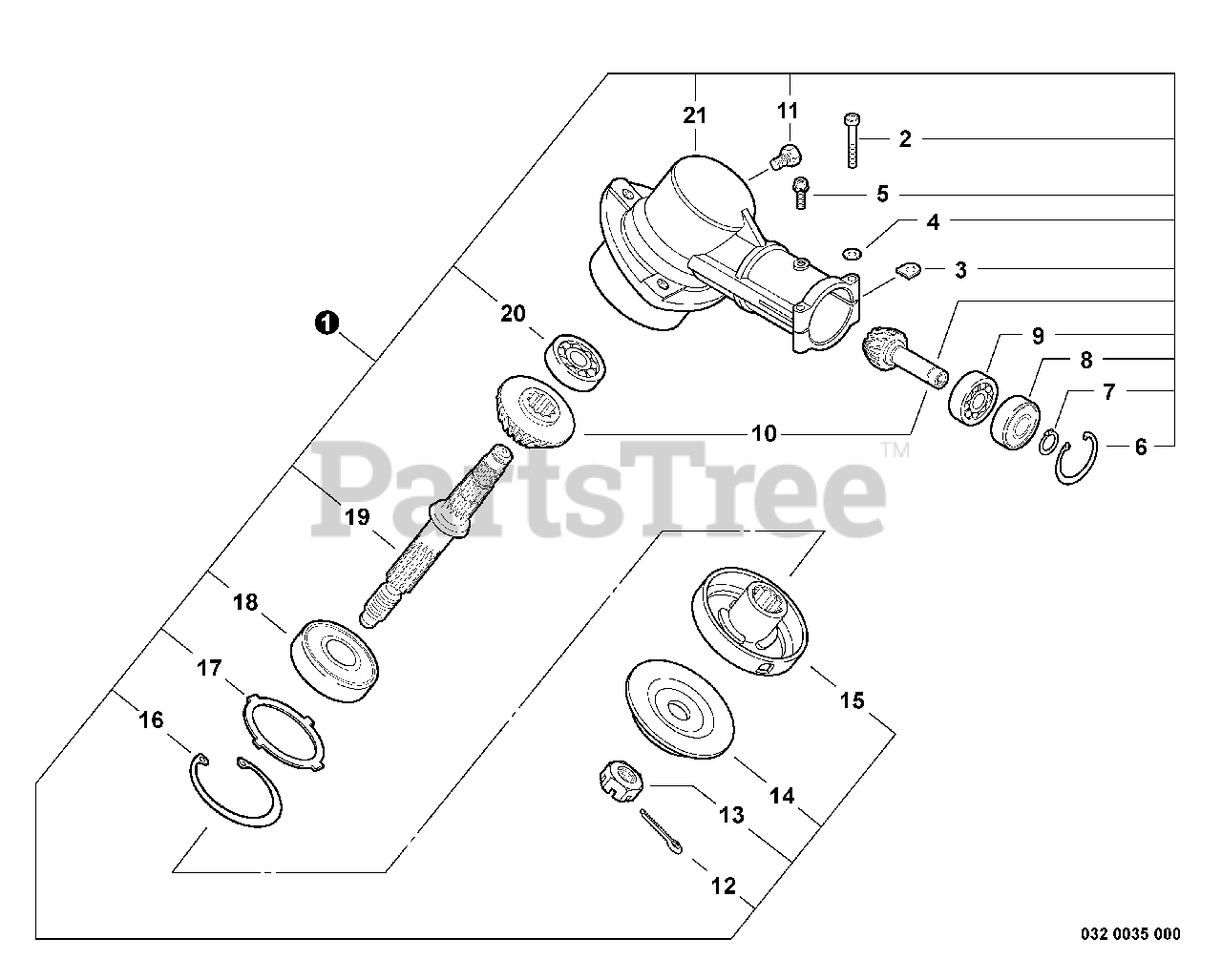

Gear Case Parts Diagram

  • Title

1

Echo P021013352

GEAR CASE ASSY
(Superseded to P021013353)

Note: Includes ITEMS 2-21

$207.99

$

Usually ships in 2-4 days

0

2

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 12

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

6

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 15

0

7

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

8

Echo 9406306900

BEARING, BALL - 6900Z
(Superseded to 90085806900)

$25.99

$

In Stock, only 3 left!

0

9

Echo 9406006900

BEARING, BALL - 6900
(Superseded to 90085506900)

$20.99

$

In Stock, only 2 left!

0

10

Echo 61030044830

GEAR SET - BEVEL

$98.99

$

Usually ships in 2-4 days

0

11

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

14

Echo 61031404131

ADAPTOR, BLADE - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 20+

0

15

Echo 61031347731

ADAPTOR, BLADE - UPPER

$13.99

$

In Stock, only 3 left!

0

16

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 10

0

17

Echo C340000180

WASHER

$

$

Currently unavailable

18

Echo 90081206201

BEARING, BALL - 6201

$13.99

$

In Stock, Qty 8

0

19

Echo C534000270

GEAR - SHAFT

$74.99

$

In Stock, only 3 left!

0

20

Echo 940600609

BEARING, BALL - 609

$

$

Currently unavailable

21

Echo C351000311

CASE, GEAR

$

$

Currently unavailable
