SRM-22 GESU - Echo Brush Cutter (SN: S55822001001 - S55822999999) Handles, Throttle Control Parts Diagram

Brush Cutter

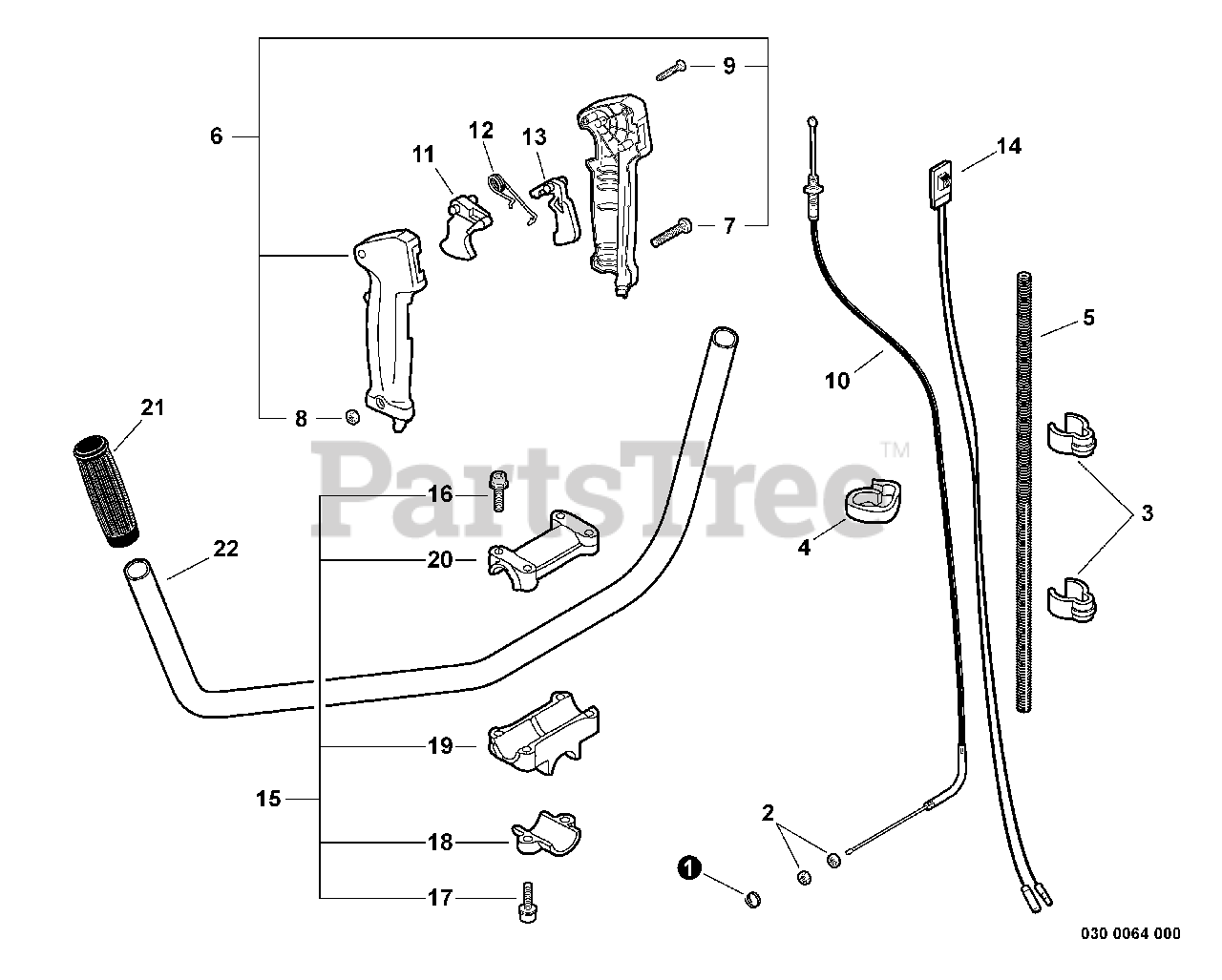

Handles, Throttle Control Parts Diagram

  • Title

1

Echo V490000440

CLIP

$2.49

$

Usually ships in 2-4 days

0

2

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 22492452130

CLIP

$7.49

$

In Stock, only 3 left!

0

4

Echo 15911209961

CLIP

$4.49

$

Usually ships in 2-4 days

0

5

Echo 16211056430

TUBE, PROTECTIVE - CORRUGATED

$6.99

$

Usually ships in 2-4 days

0

6

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes ITEMS 7-9

$38.99

$

In Stock, Qty 7

0

7

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

10

Echo V430001980

CABLE, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

11

Echo 17801005960

TRIGGER, THROTTLE

$5.99

$

In Stock, only 3 left!

0

12

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 7

0

13

Echo 17801205960

LOCKOUT, THROTTLE

$6.49

$

In Stock, only 2 left!

0

14

Echo A440000880

SWITCH, IGNITION
(Superseded to A440000881)

$14.99

$

Usually ships in 2-4 days

0

15

Echo 35130122333

HANDLE BRACKET KIT

Note: Includes ITEMS 16-20

$27.99

$

Usually ships in 2-4 days

0

16

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

17

Echo 9111805025

SCREW - 5X25

$0.99

$

Usually ships in 2-4 days

0

18

Echo 35131422332

BRACKET, MOUNTING

$9.49

$

Usually ships in 2-4 days

0

19

Echo 35131222331

BRACKET, HANDLE - LOWER

$10.99

$

Usually ships in 2-4 days

0

20

Echo 35131322332

BRACKET, HANDLE - UPPER

$8.49

$

Usually ships in 2-4 days

0

21

Echo 35131102330

GRIP, HANDLE - LEFT

$6.99

$

In Stock, Qty 6

0

22

Echo C400000211

HANDLE - FRONT

$51.99

$

Usually ships in 2-4 days

0
