SRM-22 GESU - Echo Brush Cutter (SN: S55822001001 - S55822999999) Starter Parts Diagram

Brush Cutter

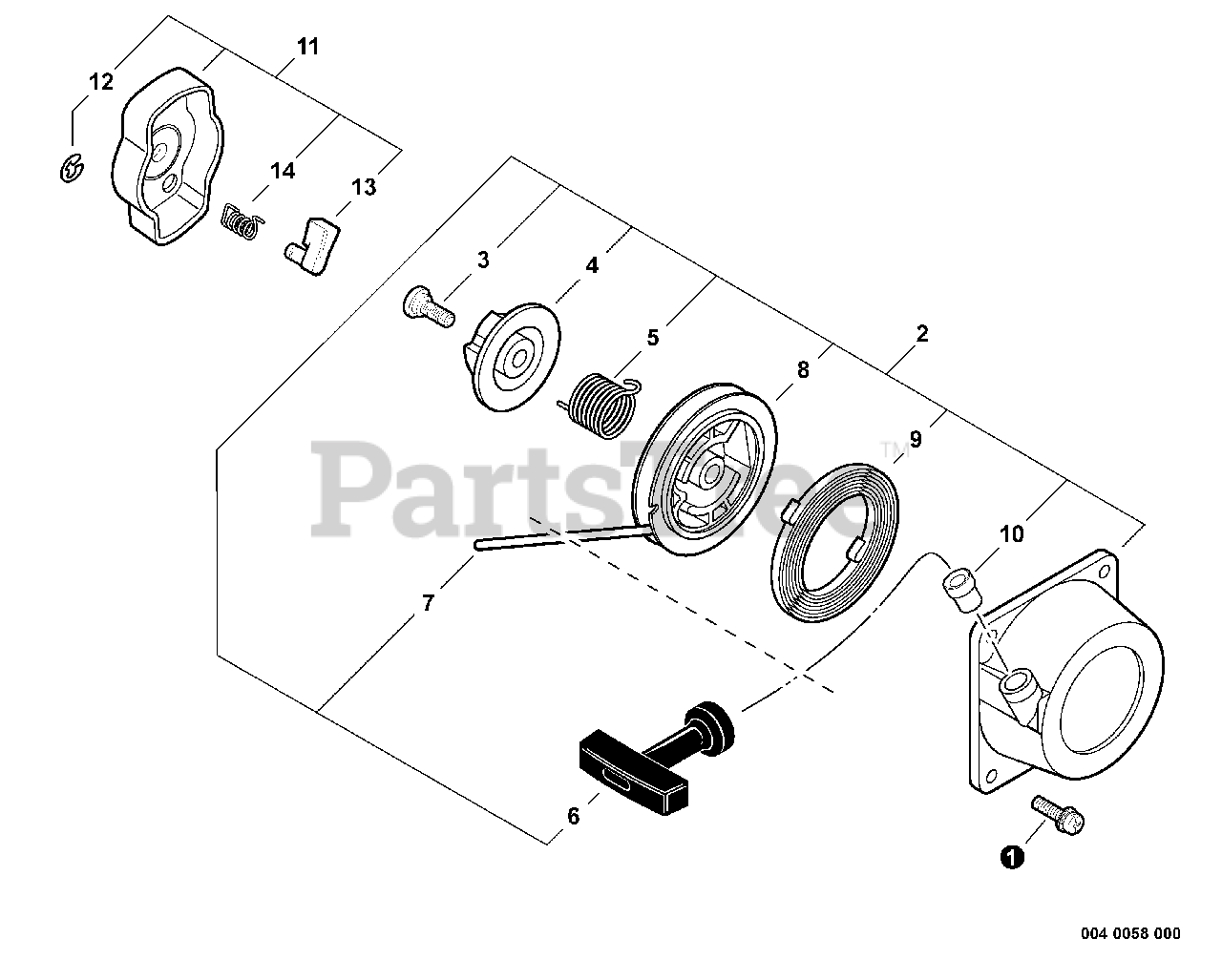

Starter Parts Diagram

  • Title

1

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

2

Echo A051001410

STARTER ASSY
(Superseded to A051001411)

Note: Includes ITEMS 3-10

$115.99

$

Usually ships in 2-4 days

0

3

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 5

0

4

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

5

Echo P022008270

SPRING, DAMPER

$9.49

$

In Stock, only 4 left!

0

6

Echo P022023170

GRIP, STARTER
(Superseded to P022036700)

$11.99

$

In Stock, only 2 left!

0

7

Echo P022025730

ROPE, STARTER

$6.99

$

Usually ships in 2-4 days

0

8

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$18.99

$

In Stock, Qty 20+

0

9

Echo P022019680

SPRING, REWIND

$11.99

$

In Stock, Qty 6

0

10

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

11

Echo A052000180

STARTER PAWL ASSY

Note: Includes ITEMS 12-14

$10.99

$

In Stock, Qty 12

0

12

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 7

0

13

Echo P022006850

PAWL, STARTER

$3.99

$

In Stock, Qty 5

0

14

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0
