SRM-22 GESU - Echo Brush Cutter (SN: S89720001001 - S89720999999) Gear Case - Metal Shield Parts Diagram

Brush Cutter

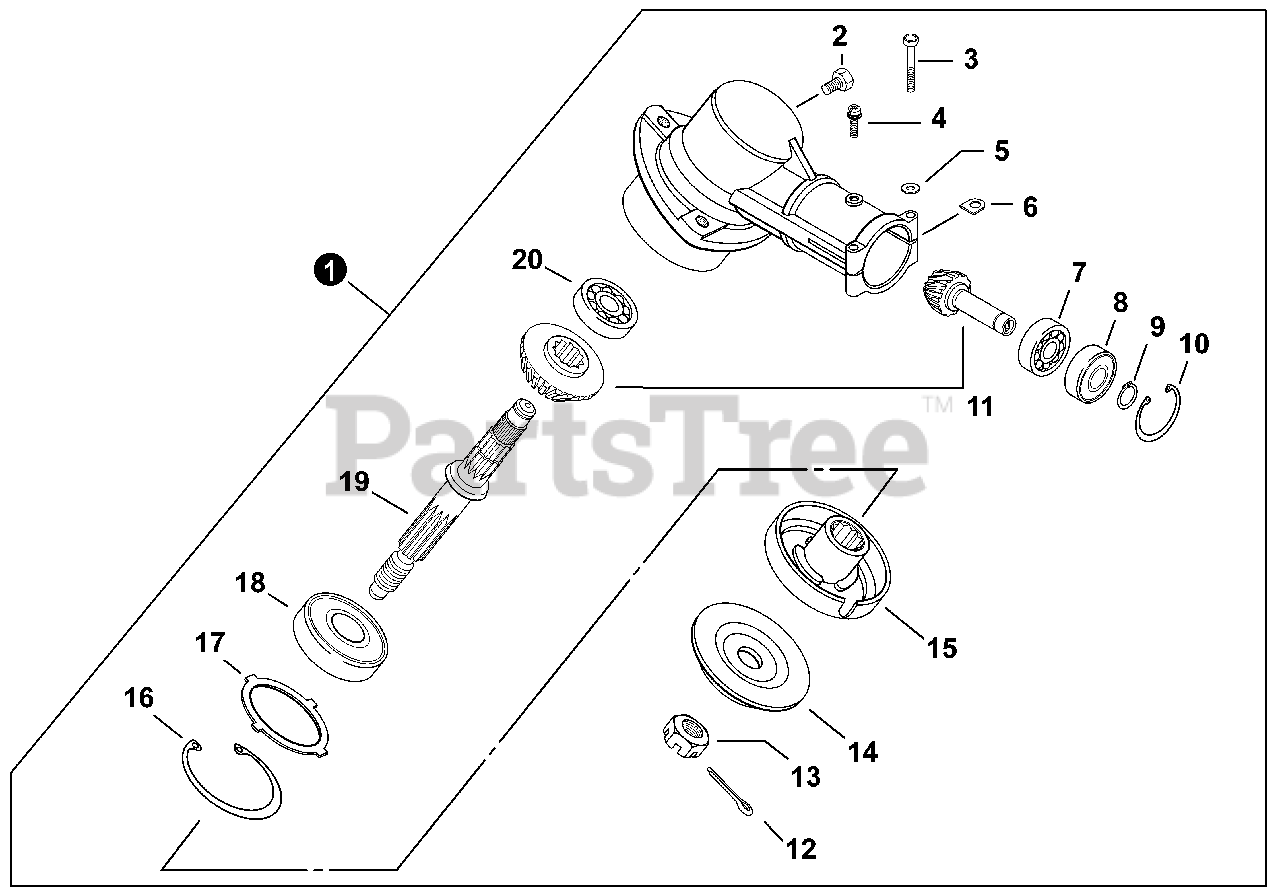

Gear Case - Metal Shield Parts Diagram

  • Title

1

Echo P021013353

GEAR CASE ASSY

Note: Includes Items 2-20

$207.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 20+

0

3

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 12

0

4

Echo 90024205010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

5

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

7

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

8

Echo 90085806900

BEARING, BALL 6900Z

$25.99

$

In Stock, only 3 left!

0

9

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0

11

Echo 61030044830

GEAR SET

$98.99

$

Usually ships in 2-4 days

0

12

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 20+

0

14

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 20+

0

15

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$22.99

$

In Stock, only 3 left!

0

16

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 10

0

17

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 15

0

18

Echo 90081206201

BEARING, BALL 6201

$13.99

$

In Stock, Qty 8

0

19

Echo C534000270

SHAFT, GEAR

$74.99

$

In Stock, only 4 left!

0

20

Echo 90080000609

BEARING, BALL 609

$10.99

$

In Stock, Qty 6

0
