SRM-2200 - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

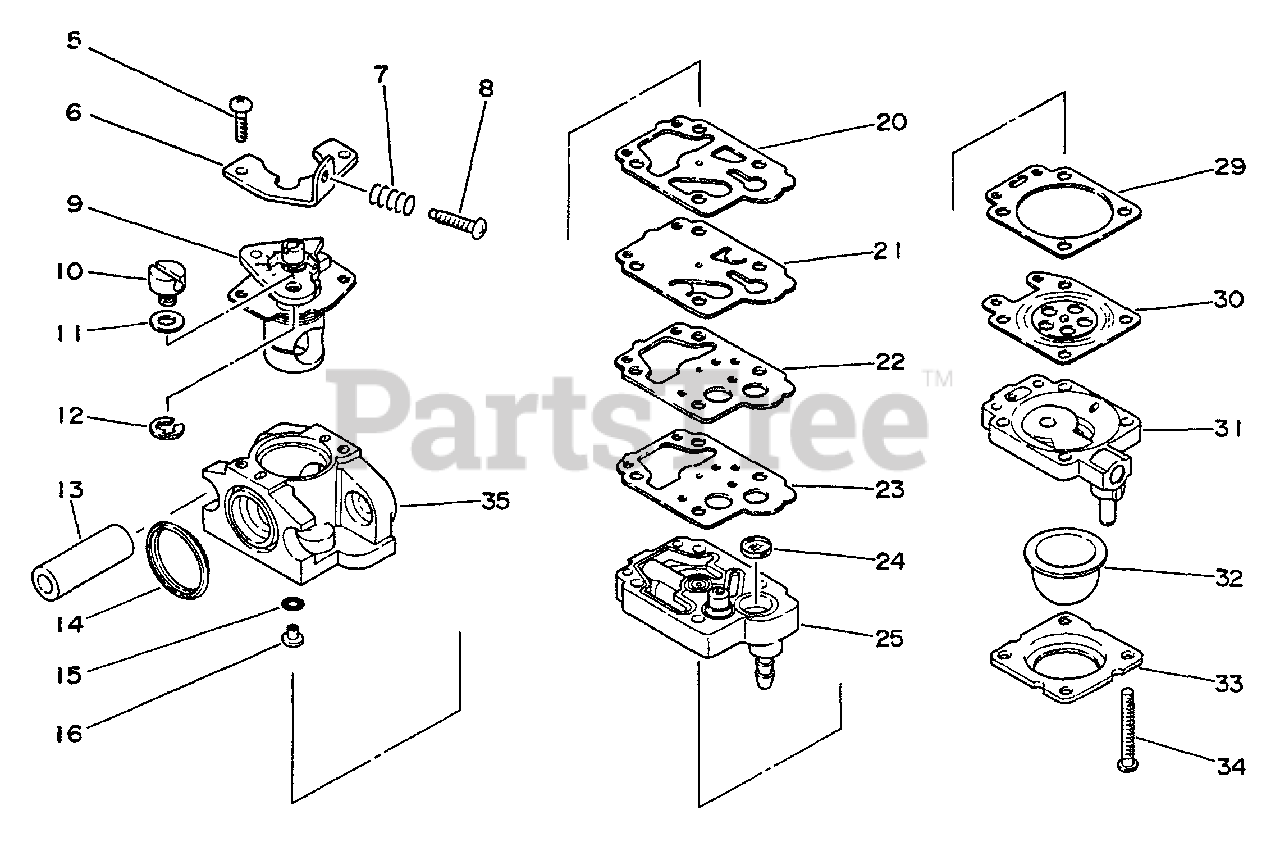

Carburetor Parts Diagram

  • Title

Echo 12300040630

CARBURETOR - WY-18
(Superseded to Discontinued)

$

$

Not available

5

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

6

Echo 12312840630

BRACKET, IDLE ADJUST

$

$

Not available

7

Echo 12313326030

SPRING

$1.49

$

Usually ships in 2-4 days

0

8

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12311640630

VALVE, THROTTLE

$24.99

$

Usually ships in 2-4 days

0

10

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

11

Echo 12314926030

WASHER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

13

Echo 12315840630

SLEEVE, MOUNTING
(Superseded to Discontinued)

$

$

Not available

14

SEAL

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

15

O-RING

Note: Included in Carburetor repair kit P/N 12310040630

$

$

Not available

16

JET

Note: Included in Carburetor repair kit P/N 12310040630

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

22

Echo 12316040630

COVER, PUMP

$4.99

$

Usually ships in 2-4 days

0

23

GASKET, PLATE

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

24

STRAINER

Note: Included in Carburetor repair kit P/N 12310040630

$

$

Not available

25

BASE, PURGE

Note: Included in Carburetor repair kit P/N 12310040630

$

$

Not available

29

GASKET, METERING

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

30

DIAPHRAGM, METERING

Note: Included in Carburetor repair kit P/N 12310040630 & Carburetor diaphragm/gasket kit P/N 12310140630

$

$

Not available

31

Echo 12318040630

BASE, PURGE
(Superseded to 12318046130)

$14.99

$

In Stock, only 2 left!

0

32

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

33

Echo 12314202960

RETAINER, PURGE BULB

$5.49

$

In Stock, only 2 left!

0

34

Echo 12311040630

SCREW

$0.99

$

Usually ships in 2-4 days

0

35

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12310040630

REPAIR KIT, CARBURETOR

$35.99

$

Usually ships in 2-4 days

0

Echo 12310140630

DIAPHRAGM KIT

$10.99

$

In Stock, only 2 left!

0
