SRM-2200 - Echo String Trimmer Shield, Gear Case, Harness, Tools Parts Diagram

String Trimmer

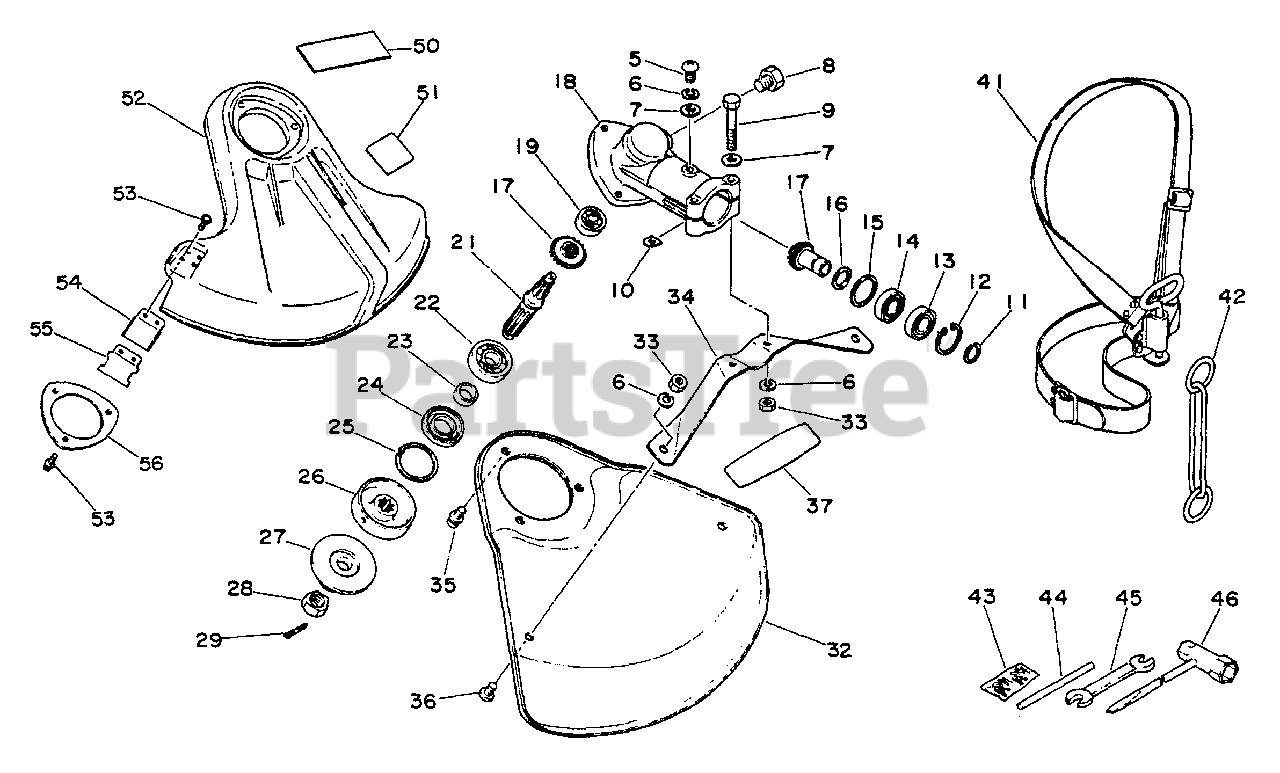

Shield, Gear Case, Harness, Tools Parts Diagram

  • Title

Echo 61040040830

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

9

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

10

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

11

Echo 61033722830

RING, RETAINING
(Superseded to 90070600010)

$1.49

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

13

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

14

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

15

Echo 61031622830

WASHER

$0.99

$

In Stock, only 1 left!

0

16

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 5

0

17

Echo 610300-40830

GEAR SET

$149.99

$

Usually ships in 2-4 days

0

18

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

19

Echo 90081000626

BEARING, BALL 626

$13.99

$

In Stock, only 1 left!

0

21

Echo 610310-40830

SHAFT, GEAR
(Superseded to Discontinued)

$

$

Not available

22

Echo 90080006000

BEARING, BALL 6000

$13.99

$

In Stock, only 2 left!

0

23

Echo 610315-22830

SPACER

$7.49

$

In Stock, only 2 left!

0

24

Echo 610413-22830

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

25

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

26

Echo 61031340830

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

27

Echo 61031406030

PLATE, ADAPTER - LOWER
(Superseded to Discontinued)

$

$

Not available

28

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

29

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

32

Echo 69901009130

SHIELD
(Superseded to 69901023531)

$17.99

$

In Stock, only 1 left!

0

33

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901544630

BRACKET, SHIELD
(Superseded to Discontinued)

$

$

Not available

35

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

37

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

41

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

$98.99

$

Usually ships in 2-4 days

0

42

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

43

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

44

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

45

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

46

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

50

Echo 89013840630

LABEL, ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

51

Echo 89017140730

LABEL

$

$

Currently unavailable

52

Echo 69900040830

SHIELD ASSY
(Superseded to 69900040831)

$30.99

$

In Stock, only 3 left!

0

53

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, only 3 left!

0

54

Echo 69921223230

PROTECTOR
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

55

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

56

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0
