SRM-225 i - Echo String Trimmer (SN: S08712001001 - S08712999999) Fuel System S/N: S08712016798 - S08712999999 Parts Diagram

String Trimmer

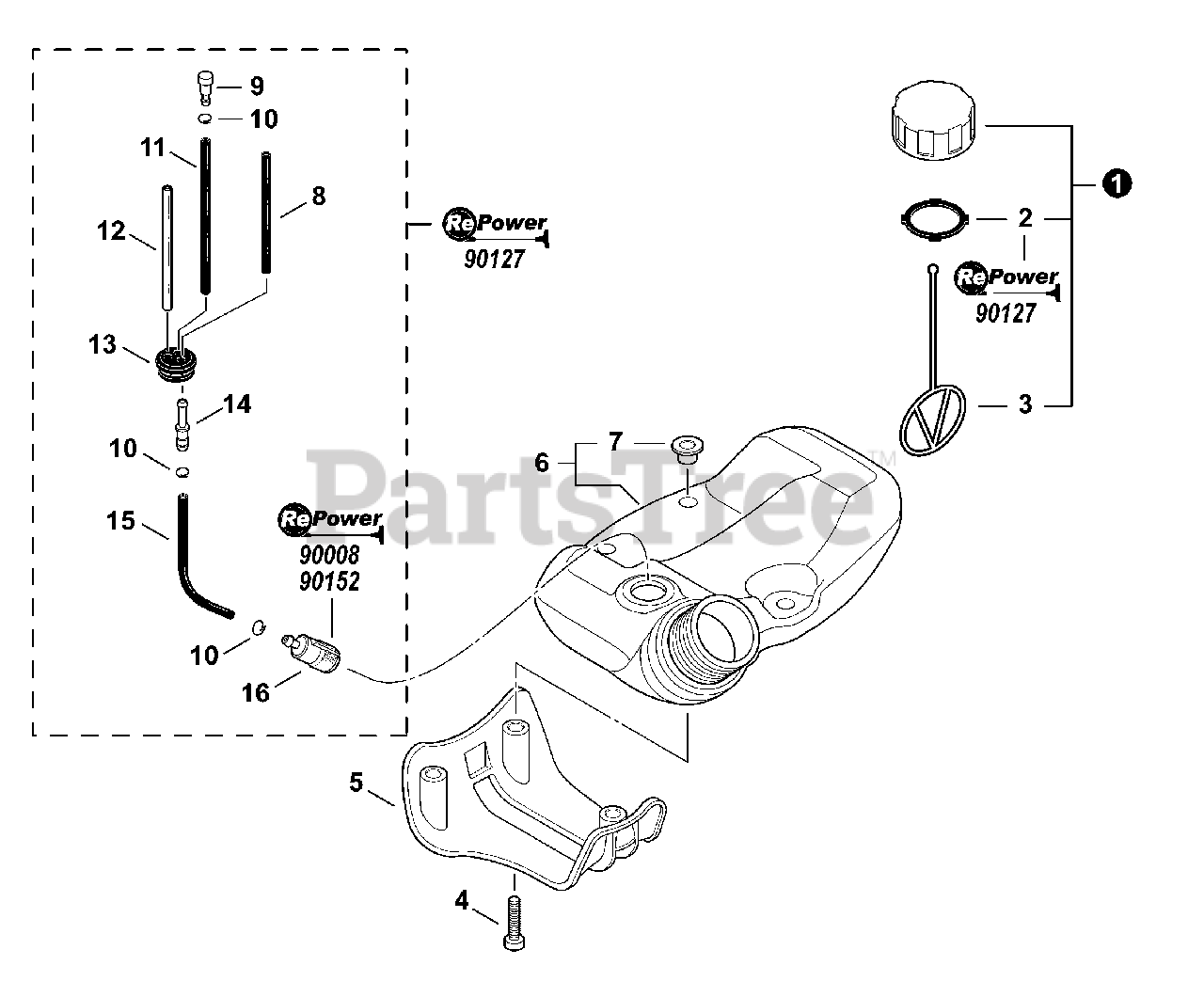

Fuel System S/N: S08712016798 - S08712999999 Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY, FUEL

Note: Includes Items 2 - 3

$6.99

$

In Stock, Qty 10

0

2

Echo V107000150

GASKET, FUEL CAP

Note: See RePower Maintenance Page

$4.99

$

In Stock, only 4 left!

0

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo A175000070

GUARD, FUEL TANK

$5.49

$

In Stock, only 1 left!

0

6

Echo A350000780

TANK ASSY, FUEL

Note: Includes Item 7

$25.99

$

In Stock, only 2 left!

0

7

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

8

Echo V471003691

PIPE, FUEL 3×5×74 BLACK
(Superseded to V471005620)

Note: See RePower Maintenance Page

$3.99

$

In Stock, Qty 13

0

9

Echo A356000031

VENT ASSY

Note: See RePower Maintenance Page

$9.49

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP Ø6

Note: See RePower Maintenance Page

$0.99

$

In Stock, Qty 9

0

11

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: See RePower Maintenance Page

$0.99

$

In Stock, Qty 20+

0

12

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: See RePower Maintenance Page

$3.49

$

In Stock, Qty 20+

0

13

Echo 13211546730

GROMMET, FUEL Ø5

Note: See RePower Maintenance Page

$2.49

$

In Stock, Qty 20+

0

14

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

Note: See RePower Maintenance Page

$0.99

$

In Stock, Qty 20+

0

15

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

Note: See RePower Maintenance Page

$1.49

$

In Stock, only 4 left!

0

16

Echo 131205-07320

FILTER, FUEL

Note: See RePower Maintenance Page

$6.49

$

In Stock, Qty 20+

0
