SRM-225 i - Echo String Trimmer (SN: S55013001001 - S55013999999) Fuel System S/N: S55013001001 - S55013002253 Parts Diagram

String Trimmer

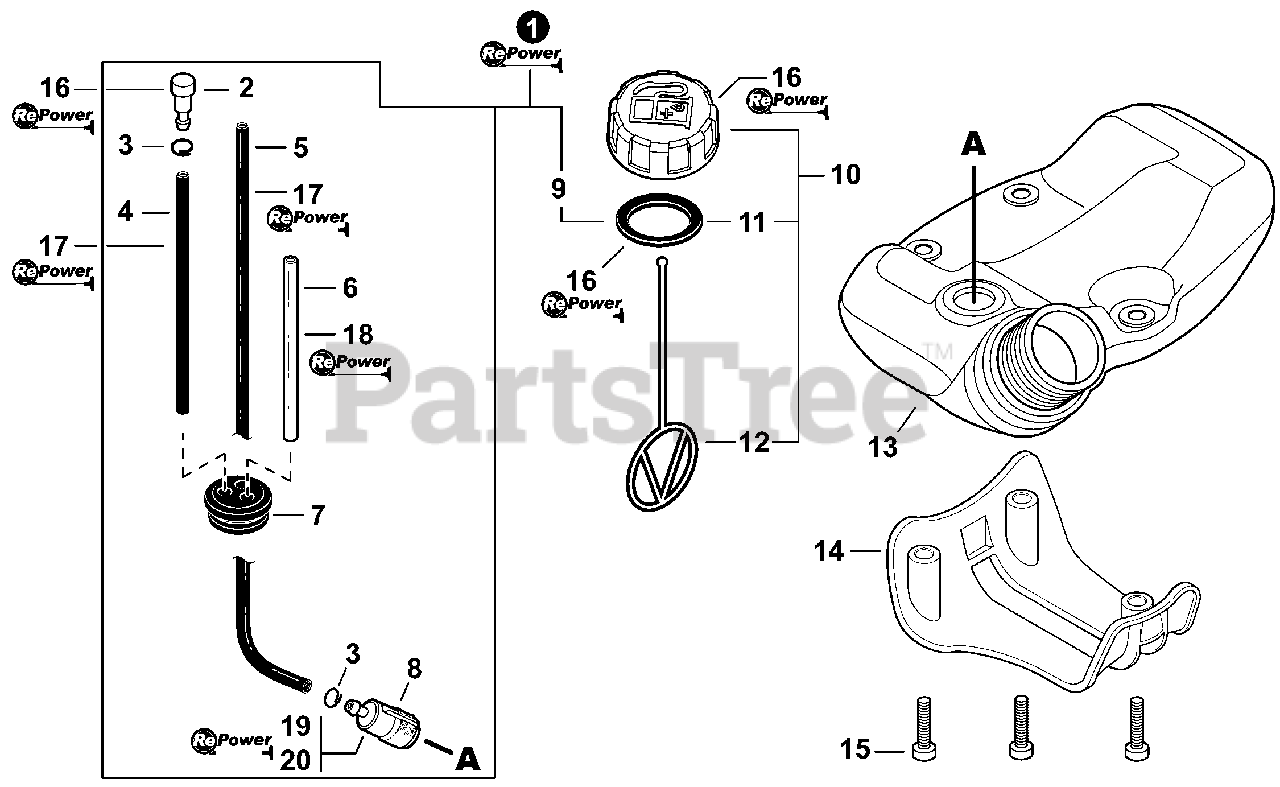

Fuel System S/N: S55013001001 - S55013002253 Parts Diagram

  • Title

1

Echo 90117

FUEL SYSTEM KIT - REPOWER
(Superseded to 90127)

Note: Includes items 2-9

$30.99

$

Usually ships in 2-4 days

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

$5.99

$

In Stock, Qty 20+

0

6

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

7

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

9

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

10

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes items 11-12

$5.99

$

In Stock, only 1 left!

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

13

Echo A350000930

TANK, FUEL

$22.99

$

In Stock, only 1 left!

0

14

Echo A175000070

GUARD, FUEL TANK

$4.99

$

Usually ships in 2-4 days

0

15

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

17

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 20+

0

18

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$58.99

$

In Stock, Qty 20+

0

19

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0

20

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0
