SRM-225 i - Echo String Trimmer (SN: S96511001001 - S96511999999) Engine Cover, Starter Parts Diagram

String Trimmer

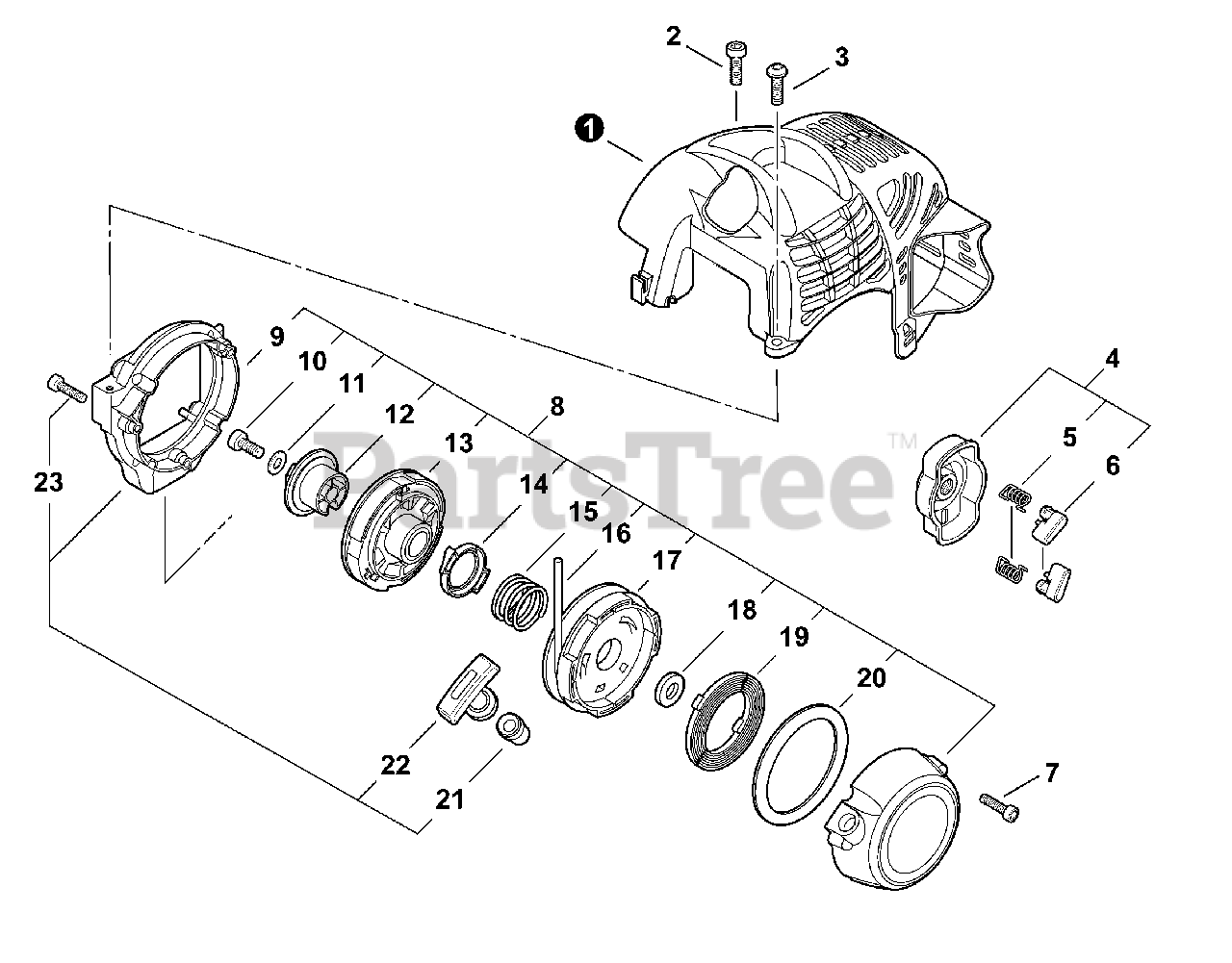

Engine Cover, Starter Parts Diagram

  • Title

1

Echo A160001090

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

2

Echo V805000150

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

3

Echo V805000000

SCREW - 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo 17720212220

STARTER PAWL ASSY

Note: Includes Items 5 - 6

$18.99

$

In Stock, Qty 7

0

5

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

6

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

7

Echo V804000060

SCREW - 4×16

$0.99

$

In Stock, Qty 20+

0

8

Echo A051001390

STARTER ASSY
(Superseded to A051003320)

Note: Includes Items 9 - 23

$98.99

$

Usually ships in 2-4 days

0

9

Echo V376001080

BRACKET, STARTER

$12.99

$

Usually ships in 2-4 days

0

10

Echo V805000140

SCREW - 5×12

$0.99

$

In Stock, Qty 20+

0

11

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo A520000070

CAM

$7.49

$

Usually ships in 2-4 days

0

13

Echo A556000360

CLUTCH ASSY
(Superseded to P021015540)

$65.99

$

Usually ships in 2-4 days

0

14

Echo A514000060

PAWL

$3.99

$

Usually ships in 2-4 days

0

15

Echo V450000440

SPRING

$3.99

$

Usually ships in 2-4 days

0

16

Echo 17722656030

ROPE, STARTER - 3×900

$6.49

$

Usually ships in 2-4 days

0

17

Echo A506000060

PULLEY

$14.99

$

Usually ships in 2-4 days

0

18

Echo V355000080

COLLAR - 8

$1.99

$

Usually ships in 2-4 days

0

19

Echo A504000001

SPRING, REWIND

$17.99

$

Usually ships in 2-4 days

0

20

Echo A503000020

PLATE, STARTER

$4.49

$

Usually ships in 2-4 days

0

21

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

22

Echo A511000000

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

23

Echo V804000010

SCREW - 4×16 -- TAPPING

$0.99

$

In Stock, Qty 11

0
