SRM-225 SB - Echo String Trimmer (SN: S79312001001 - S79312999999) Engine Cover, Starter Parts Diagram

String Trimmer

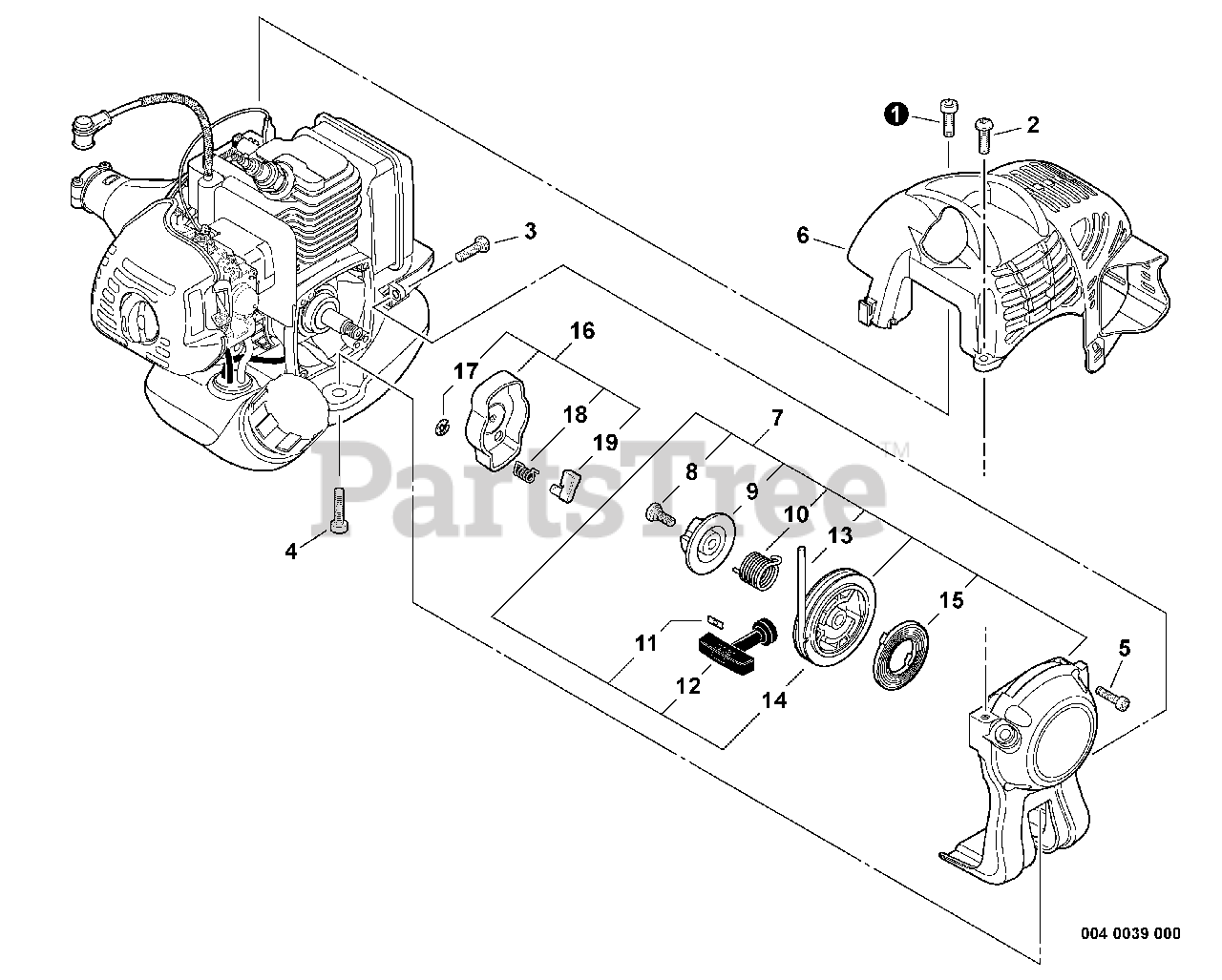

Engine Cover, Starter Parts Diagram

  • Title

1

Echo V805000150

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo V805000000

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

3

Echo V805000000

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

5

Echo V804000060

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

6

Echo A160001090

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

7

Echo A051001311

STARTER ASSY
(Superseded to A051001312)

Note: Includes ITEMS 8-15

$25.99

$

In Stock, Qty 20+

0

8

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 20+

0

9

Echo P022008280

PLATE, CAM
(Superseded to Discontinued)

$

$

Not available

10

Echo P022008270

SPRING, DAMPER

$8.99

$

In Stock, Qty 20+

0

11

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 8

0

12

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

13

Echo P022019990

ROPE, STARTER - 3X700
(Superseded to P022008260)

Note: RePower BULK OPTION: 99944440000

$

$

Not available

14

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

15

Echo P022019680

SPRING, REWIND

$9.99

$

In Stock, Qty 20+

0

16

Echo A052000180

STARTER PAWL ASSY

Note: Includes ITEMS 17-19

$8.99

$

In Stock, Qty 20+

0

17

Echo P022002100

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

18

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 20+

0

19

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 3 left!

0
