SRM-225 SB - Echo String Trimmer (SN: S79312001001 - S79312999999) Fuel System S/N: S79312001001 - S79312017454 Parts Diagram

String Trimmer

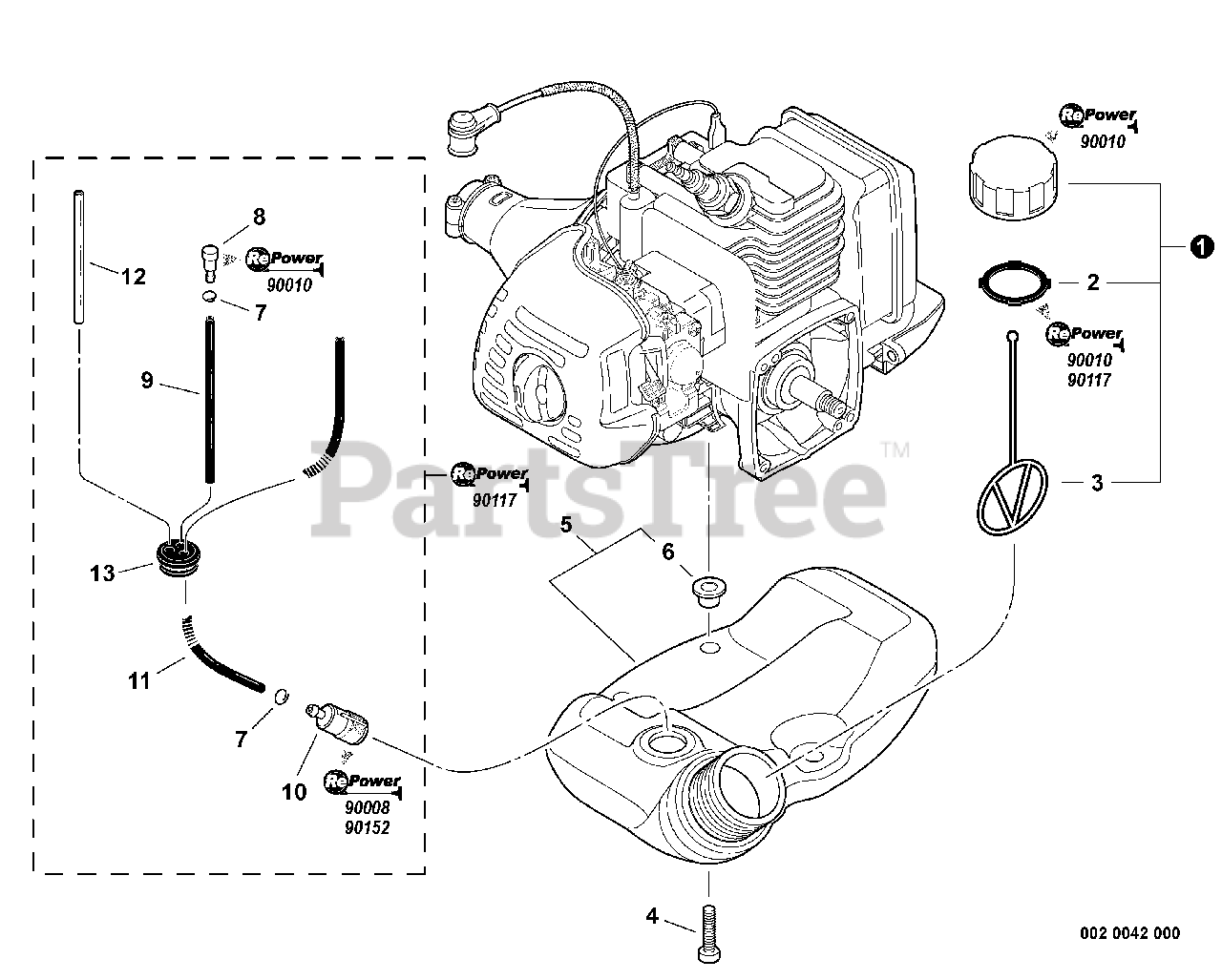

Fuel System S/N: S79312001001 - S79312017454 Parts Diagram

  • Title

1

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes ITEMS 2-3

$

$

Not available

2

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

5

Echo A350000780

TANK ASSY, FUEL

Note: Includes ITEM 6

$25.99

$

In Stock, only 1 left!

0

6

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

7

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

8

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

9

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, Qty 20+

0

10

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

11

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

Note: RePower BULK OPTION: 90014

$5.99

$

In Stock, only 2 left!

0

12

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

13

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

14

Echo 90117

FUEL SYSTEM KIT
(Superseded to 90127)

$30.99

$

Usually ships in 2-4 days

0

15

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$21.99

$

In Stock, Qty 20+

0

16

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

17

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

18

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: BLACK

$50.99

$

In Stock, only 2 left!

0

19

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!

0
