SRM-225 SB - Echo String Trimmer (SN: S79312001001 - S79312999999) Main Pipe Assembly, Driveshaft, Coupler -- Upper Parts Diagram

String Trimmer

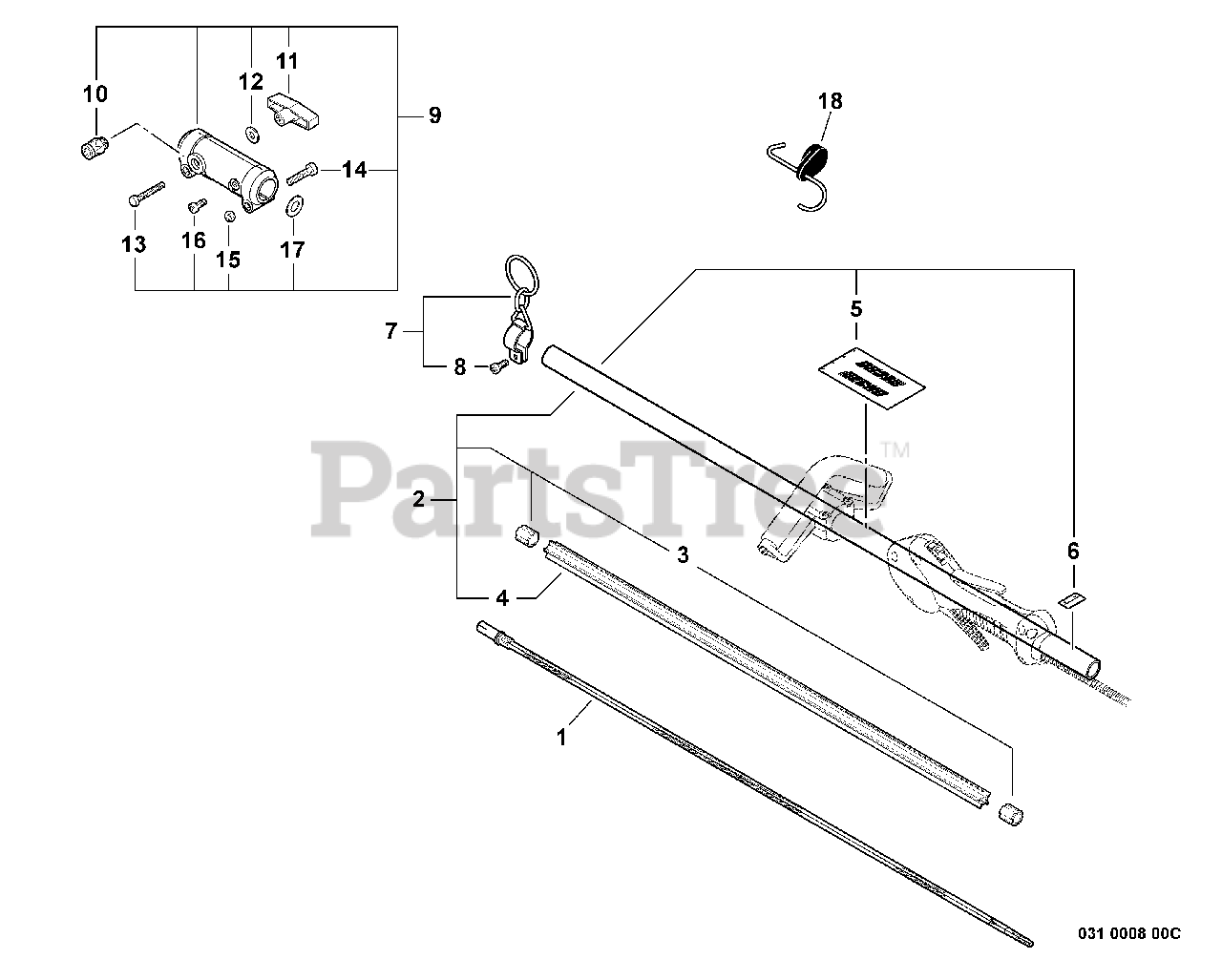

Main Pipe Assembly, Driveshaft, Coupler -- Upper Parts Diagram

  • Title

1

Echo C506000042

DRIVESHAFT - FLEXIBLE

$16.99

$

Usually ships in 2-4 days

0

2

Echo C050001240

MAIN PIPE ASSY

Note: Includes ITEMS 3-6

$30.99

$

In Stock, Qty 8

0

3

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

4

Echo C507000230

LINER - FLEXIBLE

$19.99

$

In Stock, only 2 left!

0

5

Echo X505001930

LABEL, HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

0

6

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

7

Echo C646000060

HANGER SET, HARNESS
(Superseded to P021046740)

$3.99

$

In Stock, Qty 20+

0

8

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

9

Echo C510000180

COUPLER ASSY
(Superseded to C510000330)

Note: Includes ITEMS 10-17

$47.99

$

In Stock, Qty 20+

0

10

Echo 17830256630

LATCH ASSY

$16.99

$

In Stock, only 2 left!

0

11

Echo V299000160

KNOB, FASTENER
(Superseded to V299000660)

$4.99

$

In Stock, Qty 5

0

12

Echo V304000040

WASHER 6.6×20×1.6

$0.99

$

In Stock, Qty 20+

0

13

Echo 9108506040

BOLT 6×40

$0.99

$

In Stock, Qty 8

0

14

Echo V806000020

BOLT, TORX 6×25

$0.99

$

In Stock, Qty 14

0

15

Echo 90051400006

NUT

$0.99

$

In Stock, Qty 5

0

16

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

17

Echo V312000010

WASHER 18 SPR STEEL

$0.99

$

In Stock, Qty 14

0

18

Echo 99944200631

HANGER, ATTACHMENT

Note: Includes 4 PER PACKAGE

$4.49

$

In Stock, Qty 20+

0
