SRM-225 SB - Echo String Trimmer (SN: S79411001001 - S79411999999) Control Handle, Control Cable Assembly Parts Diagram

String Trimmer

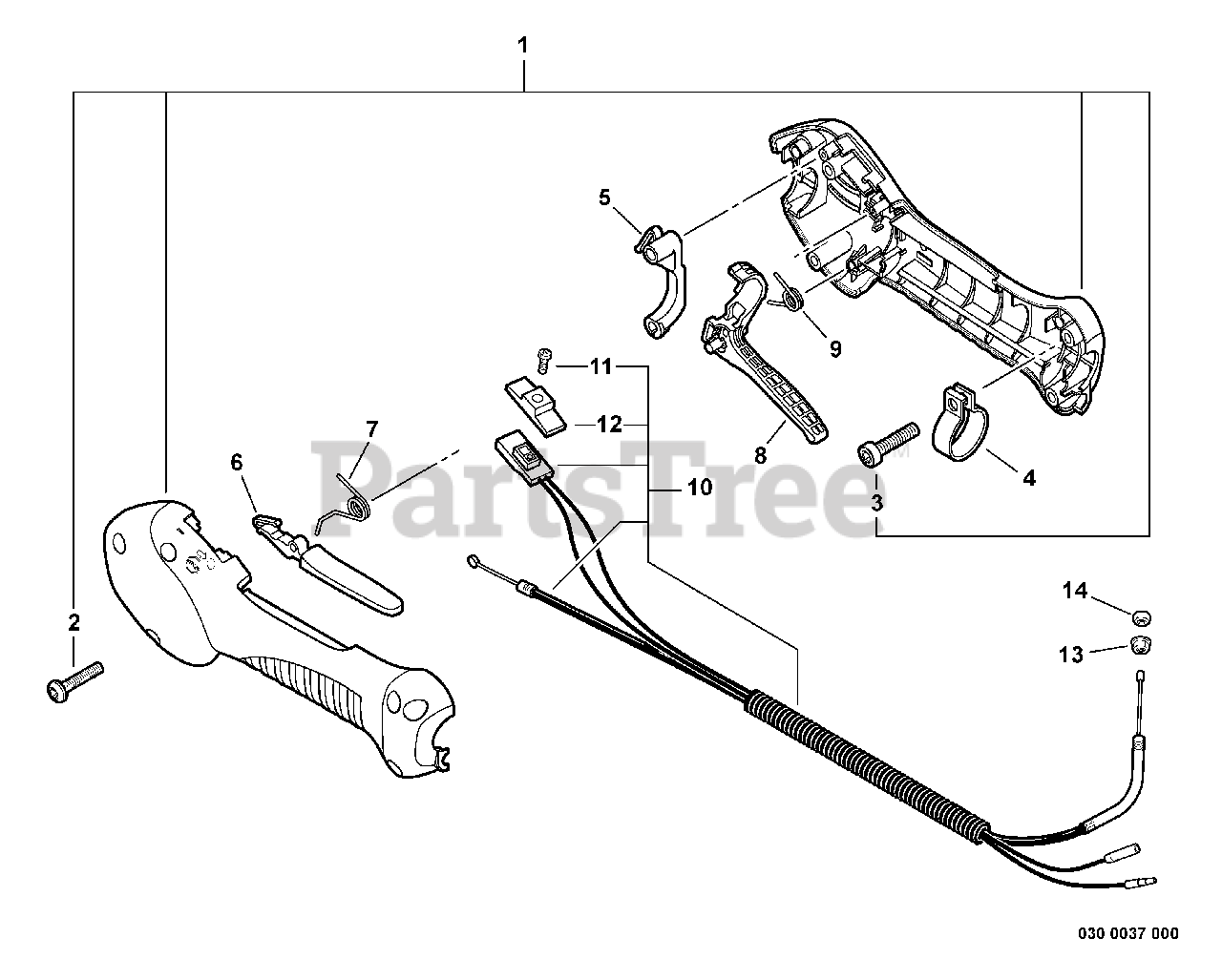

Control Handle, Control Cable Assembly Parts Diagram

  • Title

1

Echo P021015640

CONTROL HANDLE ASSY

Note: Includes ITEMS 2-3

$10.99

$

In Stock, Qty 6

0

2

Echo V804000020

SCREW - 4X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

3

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

4

Echo V495000680

CLAMP

$1.49

$

In Stock, Qty 10

0

5

Echo C453000151

LOCKOUT, THROTTLE

$2.99

$

In Stock, Qty 12

0

6

Echo C460000051

LEVER, TRIGGER LOCKOUT

$1.49

$

In Stock, Qty 20+

0

7

Echo V452000240

SPRING, LOCKOUT LEVER

$0.99

$

In Stock, Qty 20+

0

8

Echo C450000183

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 20+

0

9

Echo V452000210

SPRING, TRIGGER
(Superseded to V452000211)

$0.99

$

In Stock, Qty 20+

0

10

Echo P021015650

CONTROL CABLE ASSY

Note: Includes ITEMS 11-12

$17.99

$

In Stock, Qty 13

0

11

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

12

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

14

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0
