SRM-225 U - Echo Brush Cutter (SN: S79111001001 - S79111999999) Fuel System S/N: S79111001001 - S79111002294 Parts Diagram

Brush Cutter

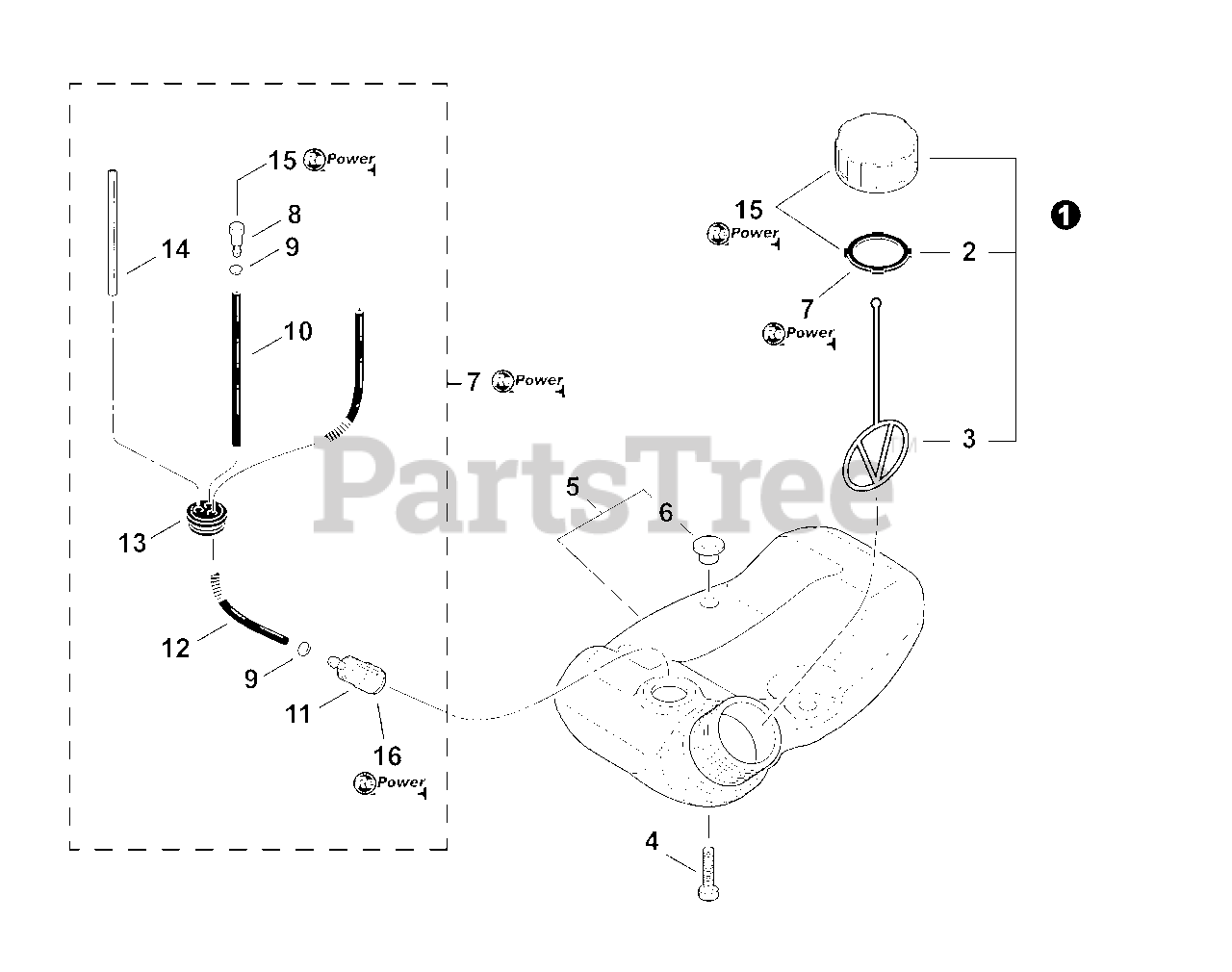

Fuel System S/N: S79111001001 - S79111002294 Parts Diagram

  • Title

1

Echo P021012210

CAP ASSY, FUEL
(Superseded to P021012211)

Note: Includes Items 2 - 3

$

$

Not available

2

Echo 131016-55830

GASKET, FUEL CAP

Note: See RePower Maintenance Page

$

$

Not available

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

5

Echo A350000780

TANK ASSY, FUEL

Note: Includes Item 6

$25.99

$

In Stock, Qty 7

0

6

Echo V353000231

COLLAR 5

$4.99

$

Usually ships in 2-4 days

0

7

Echo 90117

FUEL SYSTEM KIT
(Superseded to 90127)

Note: See RePower Maintenance Page

$30.99

$

Usually ships in 2-4 days

0

8

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

9

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 6

0

10

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

$3.49

$

In Stock, Qty 20+

0

11

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

12

Echo V471001230

PIPE, FUEL 3×5×210 BLACK
(Superseded to V471001231)

$5.99

$

In Stock, Qty 20+

0

13

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

14

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

Note: See RePower Maintenance Page

$

$

Not available

16

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

Note: See RePower Maintenance Page

$21.99

$

In Stock, Qty 14

0

16

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

Note: See RePower Maintenance Page

$21.99

$

In Stock, Qty 14

0
