SRM-225 U - Echo Brush Cutter (SN: S79213001001 - S79213999999) Handles, Throttle Control Parts Diagram

Brush Cutter

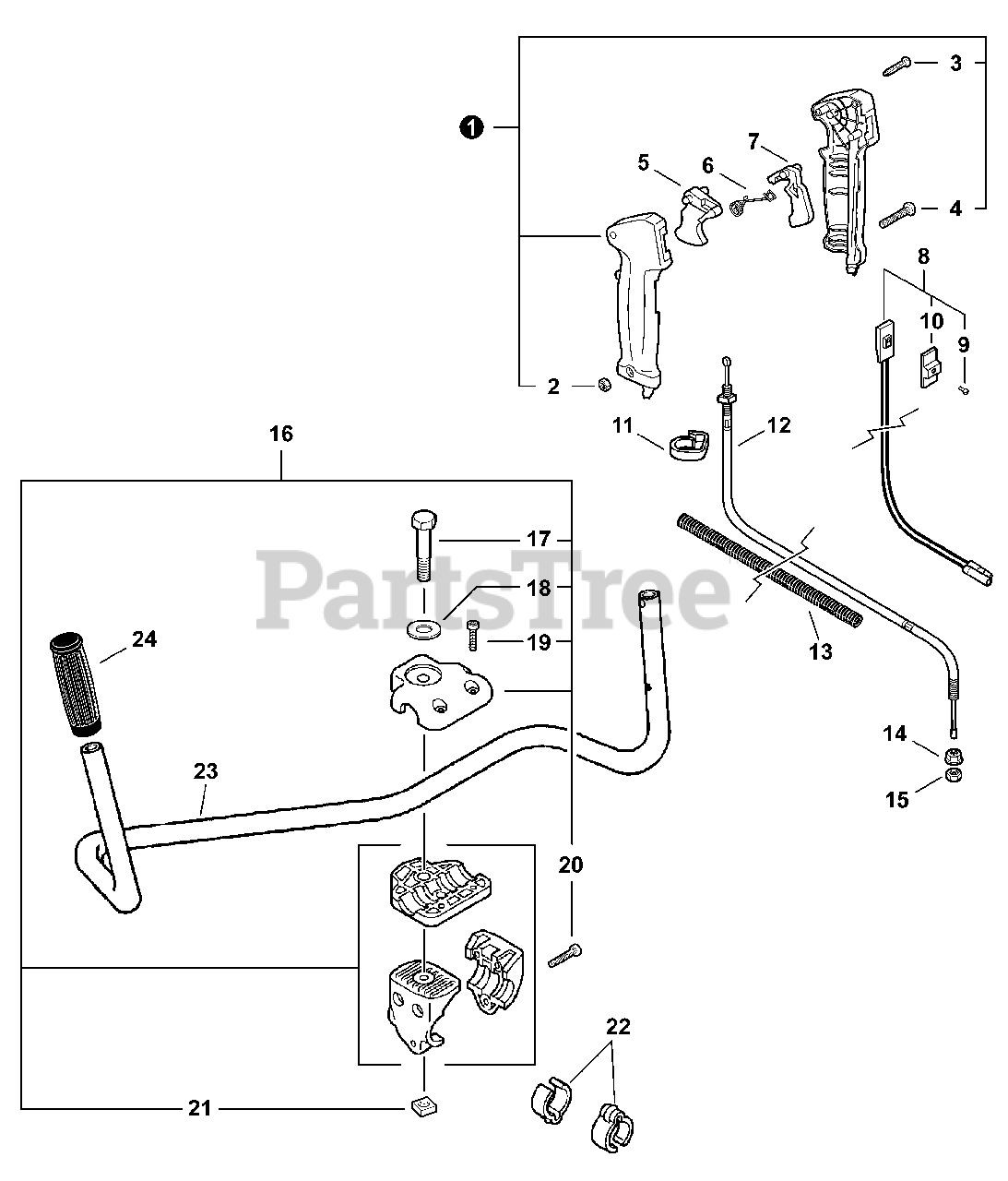

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes Items 2-4

$41.99

$

In Stock, only 2 left!

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90024603025

SCREW - 3×25

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90022005030

SCREW - 5×30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 17801005960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

6

Echo 17801335631

SPRING, THROTTLE LOCK

$2.99

$

In Stock, Qty 5

0

7

Echo 17801205960

LOCKOUT, TRIGGER

$6.99

$

In Stock, only 1 left!

0

8

Echo A440001250

SWITCH, IGNITION

Note: Includes Items 9-10

$14.99

$

Usually ships in 2-4 days

0

9

Echo 9154503010

SCREW - 3×10

$0.99

$

In Stock, Qty 20+

0

10

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

11

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

12

Echo V430002280

CABLE, THROTTLE

$21.99

$

Usually ships in 2-4 days

0

13

Echo V475000000

TUBE, PROTECTIVE - CORRUGATED

$6.49

$

Usually ships in 2-4 days

0

14

Echo 90051800006

NUT - 6 -- FLANGE

$1.99

$

In Stock, Qty 20+

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

16

Echo P021015820

HANDLE BRACKET KIT
(Superseded to P021015821)

Note: Includes Items 17-21

$102.99

$

Usually ships in 2-4 days

0

17

Echo 35142152130

BOLT - 8×55

$3.49

$

Usually ships in 2-4 days

0

18

Echo 60501454230

WASHER - 8

$4.49

$

Usually ships in 2-4 days

0

19

Echo V805000160

SCREW - 5×20

$0.99

$

In Stock, Qty 20+

0

20

Echo V805000170

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056550008

NUT - 8

$1.49

$

Usually ships in 2-4 days

0

22

Echo 22492452130

CLIP

$7.99

$

In Stock, only 3 left!

0

23

Echo C400000000

HANDLE - FRONT

$102.99

$

Usually ships in 2-4 days

0

24

Echo 35131102330

GRIP, HANDLE - LEFT

$7.49

$

In Stock, only 2 left!

0
