SRM-225 U - Echo Brush Cutter (SN: T49214001001 - T49214999999) Gear Case Parts Diagram

Brush Cutter

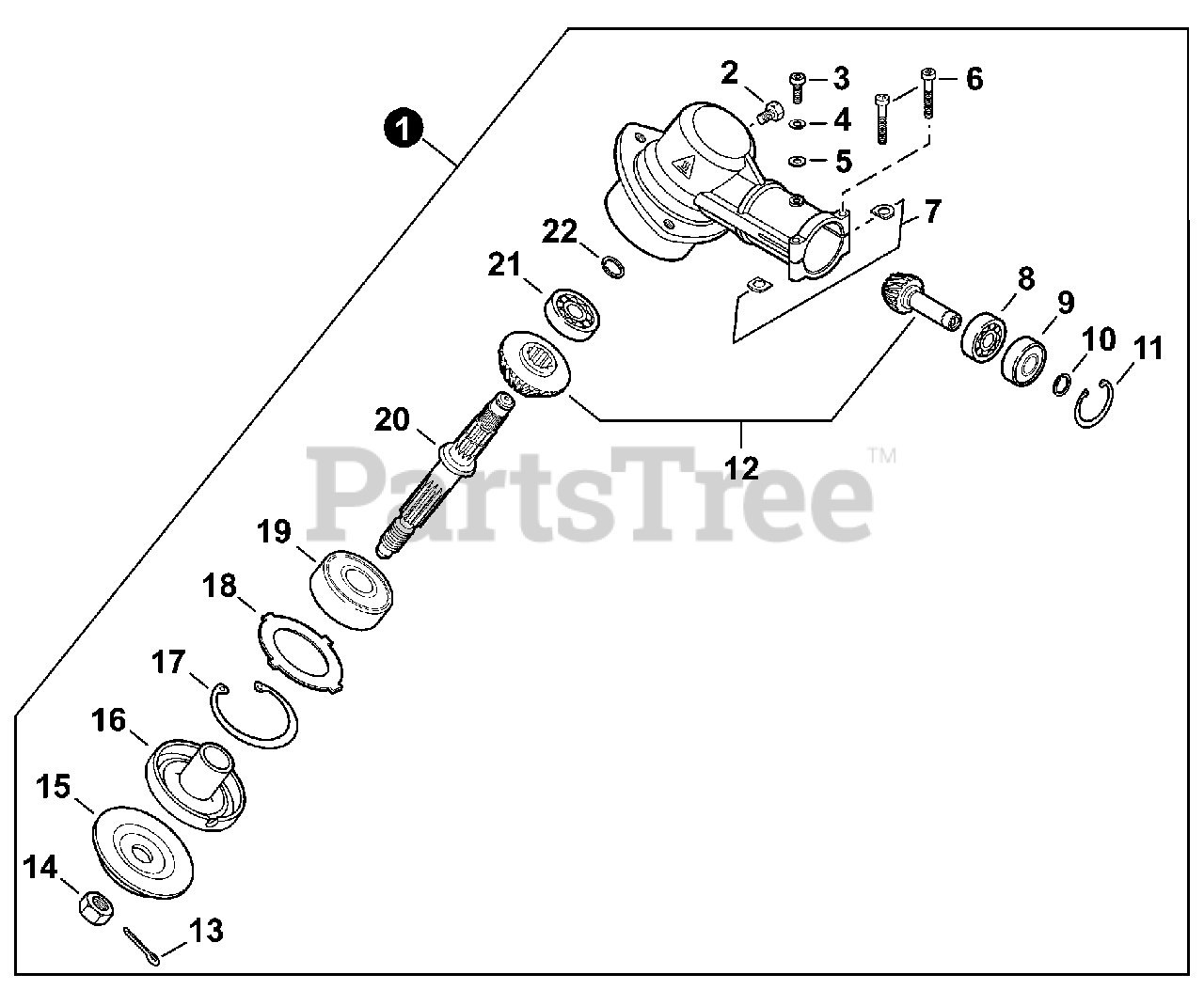

Gear Case Parts Diagram

  • Title

1

Echo P021046670

GEAR CASE ASSY

Note: Includes ITEMS 2-22

$175.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×1.25

$1.99

$

In Stock, Qty 20+

0

3

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 10

0

5

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo V805000060

BOLT 5×35

$0.99

$

In Stock, Qty 9

0

7

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

8

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL 6900-Z

$25.99

$

In Stock, only 3 left!

0

10

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0

12

Echo 61030044830

GEAR SET

$98.99

$

Usually ships in 2-4 days

0

13

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

14

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 20+

0

15

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 20+

0

16

Echo C535001160

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 2 left!

0

17

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 10

0

18

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 15

0

19

Echo 90081206201

BEARING, BALL 6201

$13.99

$

In Stock, Qty 8

0

20

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$74.99

$

In Stock, only 3 left!

0

21

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$10.99

$

In Stock, Qty 6

0

22

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 9

0
