SRM-230 - Echo String Trimmer (SN: U07815001001 - U07815999999) Intake Parts Diagram

String Trimmer

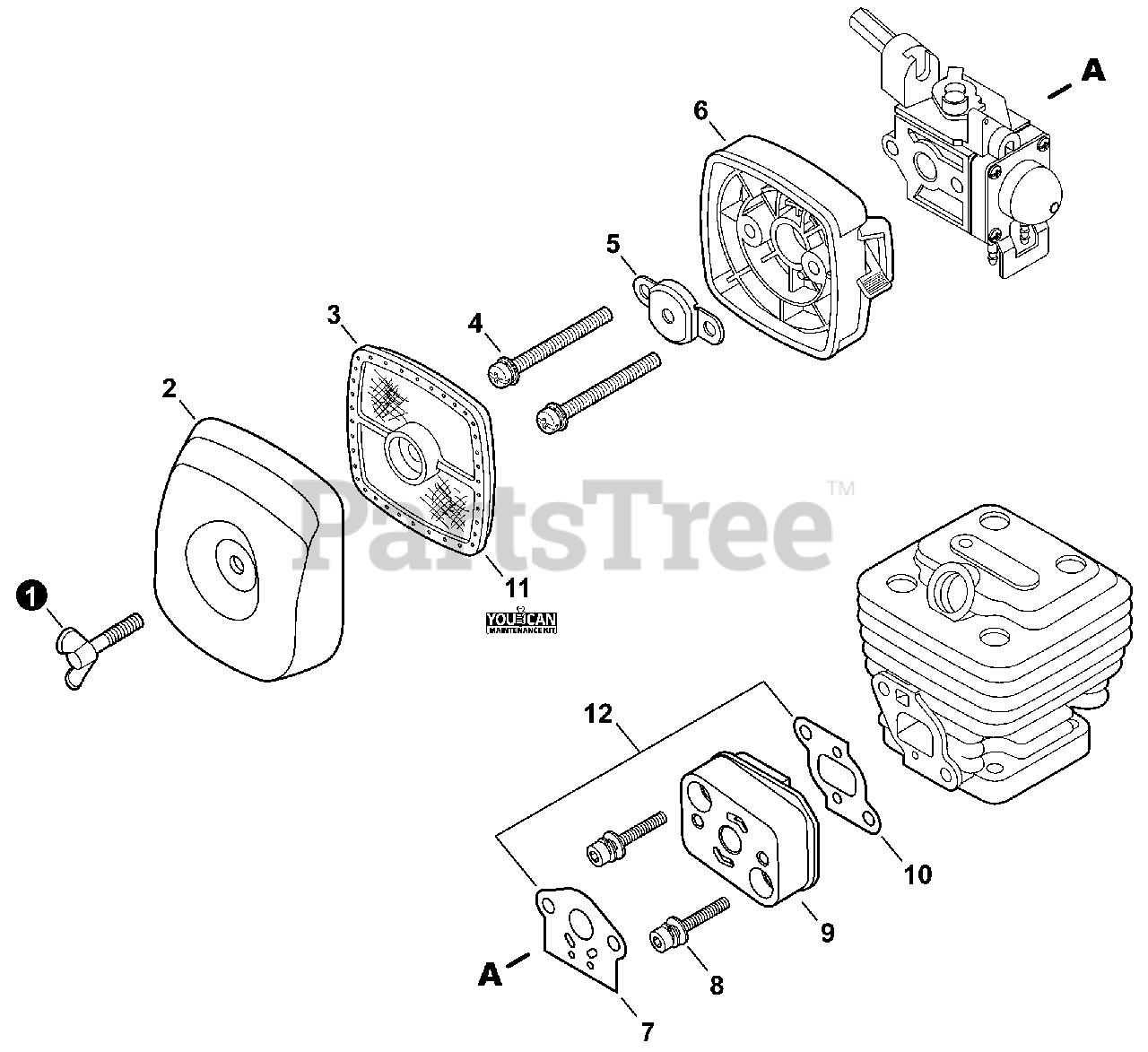

Intake Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

3

Echo A226001410

FILTER, AIR - DOUBLE LAYER

Note: Included in Tune-up Kit

$8.99

$

In Stock, Qty 20+

0

4

Echo 90024205060

SCREW 5×60

$0.99

$

In Stock, Qty 20+

0

5

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

6

Echo P021049750

CASE, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

7

Echo 13001013410

GASKET, CARBURETOR

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

8

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

9

Echo 13001756431

INSULATOR, INTAKE

$15.99

$

In Stock, only 2 left!

0

10

Echo 13001055930

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 5

0

11

Echo 90152Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, Qty 20+

0

12

Echo P021003900

GASKET KIT
(Superseded to Discontinued)

Note: See Maintenance Kits

$

$

Not available
