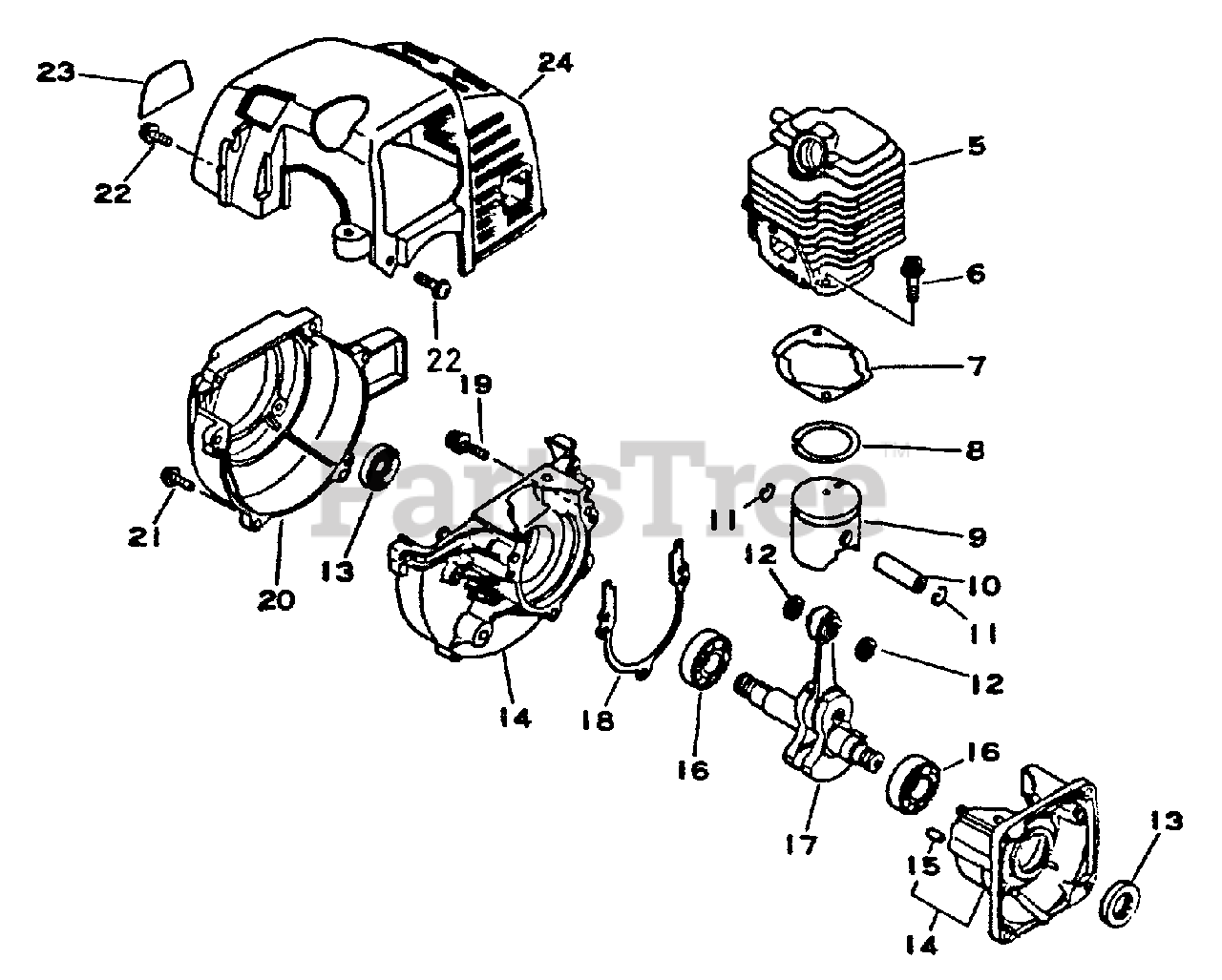

SRM-2300 - Echo String Trimmer Engine. Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine. Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$153.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

7

------------------

GASKET, CYLINDER

$

$

Not available

8

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 12

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001411520

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, only 4 left!

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$186.99

$

Usually ships in 2-4 days

0

18

------------------

GASKET, CRANKCASE

$

$

Not available

19

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10151144730

CASE, FAN - ORANGE

$57.99

$

Usually ships in 2-4 days

0

21

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

23

Echo 89011244730

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

24

Echo 10151444730

COVER, ENGINE
(Superseded to 10151442030)

$29.99

$

Usually ships in 2-4 days

0

22

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

Echo 88900044630

GASKET KIT
(Superseded to 88900044631)

$41.99

$

In Stock, only 2 left!

0
