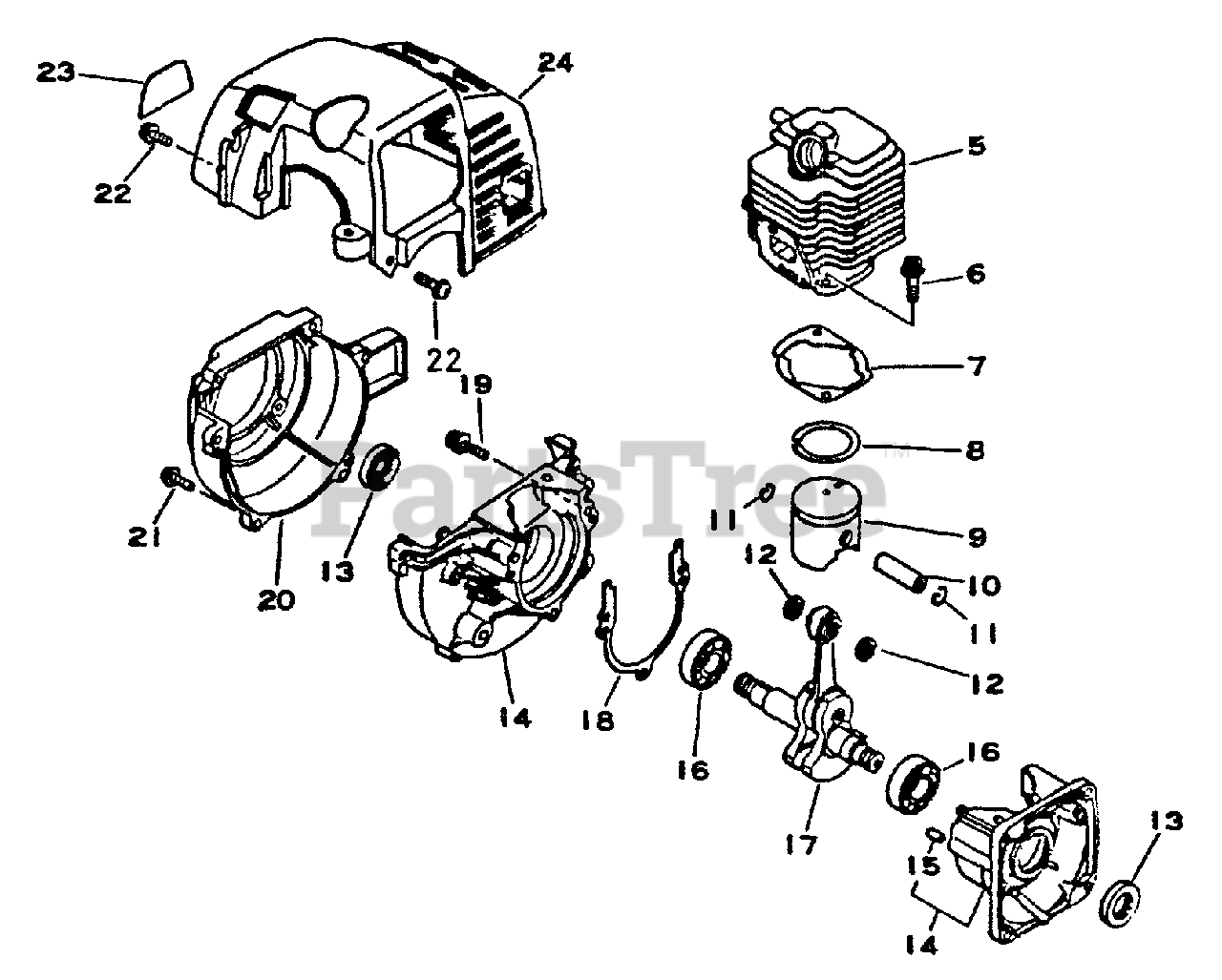

SRM-2300 - Echo String Trimmer Engine. Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine. Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$153.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

7

GASKET, CYLINDER

Note: Included In GASKET KIT 88900044630

$

$

Not available

8

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

$186.99

$

Usually ships in 2-4 days

0

18

GASKET, CRANKCASE

Note: Included In GASKET KIT 88900044630

$

$

Not available

19

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

20

Echo 10151144730

COVER, FAN - ORANGE

$57.99

$

Usually ships in 2-4 days

0

21

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

23

Echo 89011244730

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

24

Echo 10151444730

COVER, ENGINE
(Superseded to 10151442030)

$29.99

$

Usually ships in 2-4 days

0

22

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

Echo 88900044630

GASKET KIT
(Superseded to 88900044631)

$41.99

$

In Stock, only 2 left!

0
