SRM-2300 - Echo String Trimmer Gear Case, Shield, Metal, Harness Parts Diagram

String Trimmer

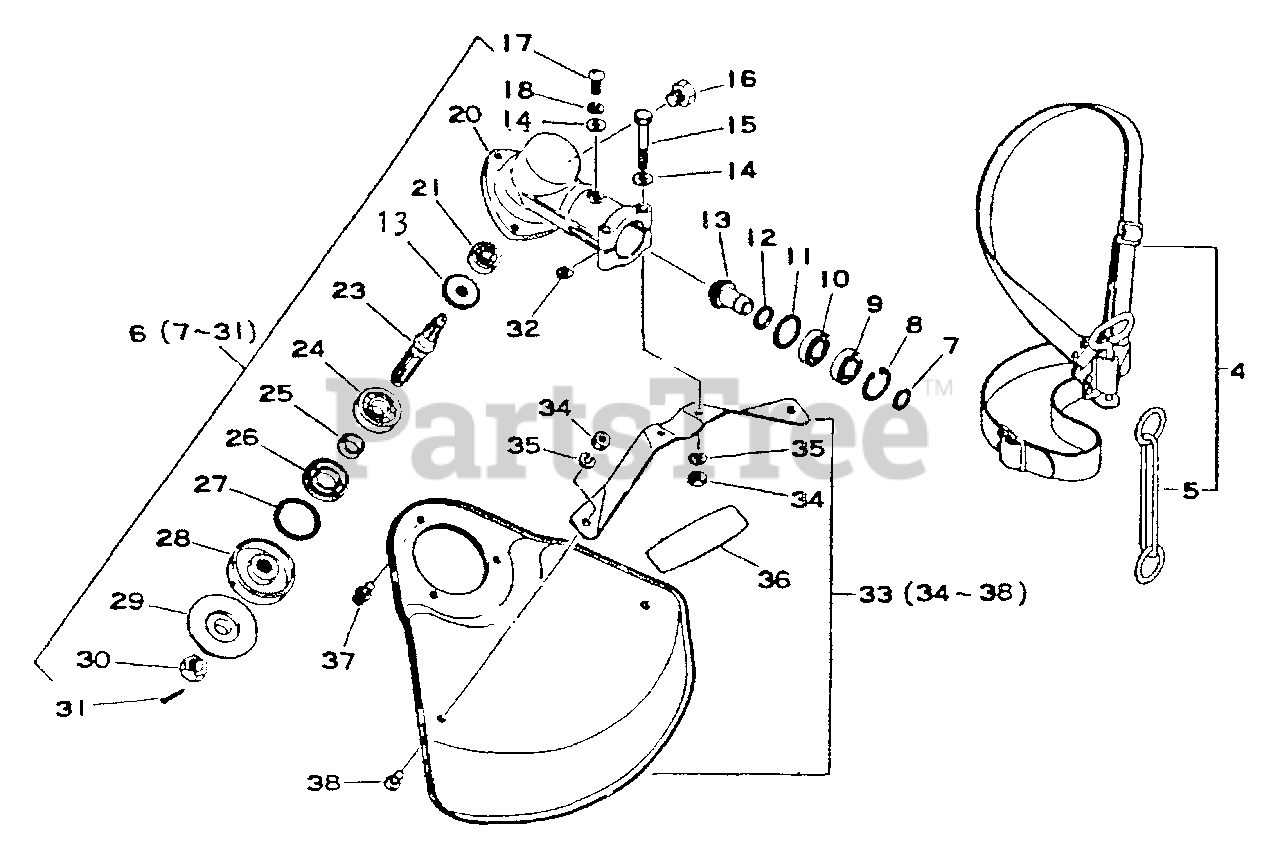

Gear Case, Shield, Metal, Harness Parts Diagram

  • Title

4

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

$98.99

$

Usually ships in 2-4 days

0

5

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

6

Echo 61040042330

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

9

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

10

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

11

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 5

0

12

Echo 61031622830

WASHER

$0.99

$

In Stock, only 1 left!

0

13

Echo 61030042330

GEAR SET

$

$

Not available

14

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

15

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

16

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

17

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

18

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

20

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

21

Echo 90081000626

BEARING, BALL 626

$13.99

$

In Stock, only 1 left!

0

23

Echo 610310-40830

SHAFT, GEAR
(Superseded to Discontinued)

$

$

Not available

24

Echo 90080006000

BEARING, BALL 6000

$13.99

$

In Stock, only 2 left!

0

25

Echo 610315-22830

SPACER

$7.49

$

In Stock, only 2 left!

0

26

Echo 610413-22830

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

27

Echo 90070200026

RING, SNAP 26

$2.49

$

In Stock, Qty 6

0

28

Echo 61031340830

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

29

Echo 61031406030

PLATE, ADAPTER - LOWER
(Superseded to Discontinued)

$

$

Not available

30

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

31

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

32

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

33

Echo 69900009131

SHIELD ASSY
(Superseded to Discontinued)

$

$

Not available

34

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

35

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

37

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

38

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, only 4 left!

0

36

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 5

0
