SRM-2300 - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

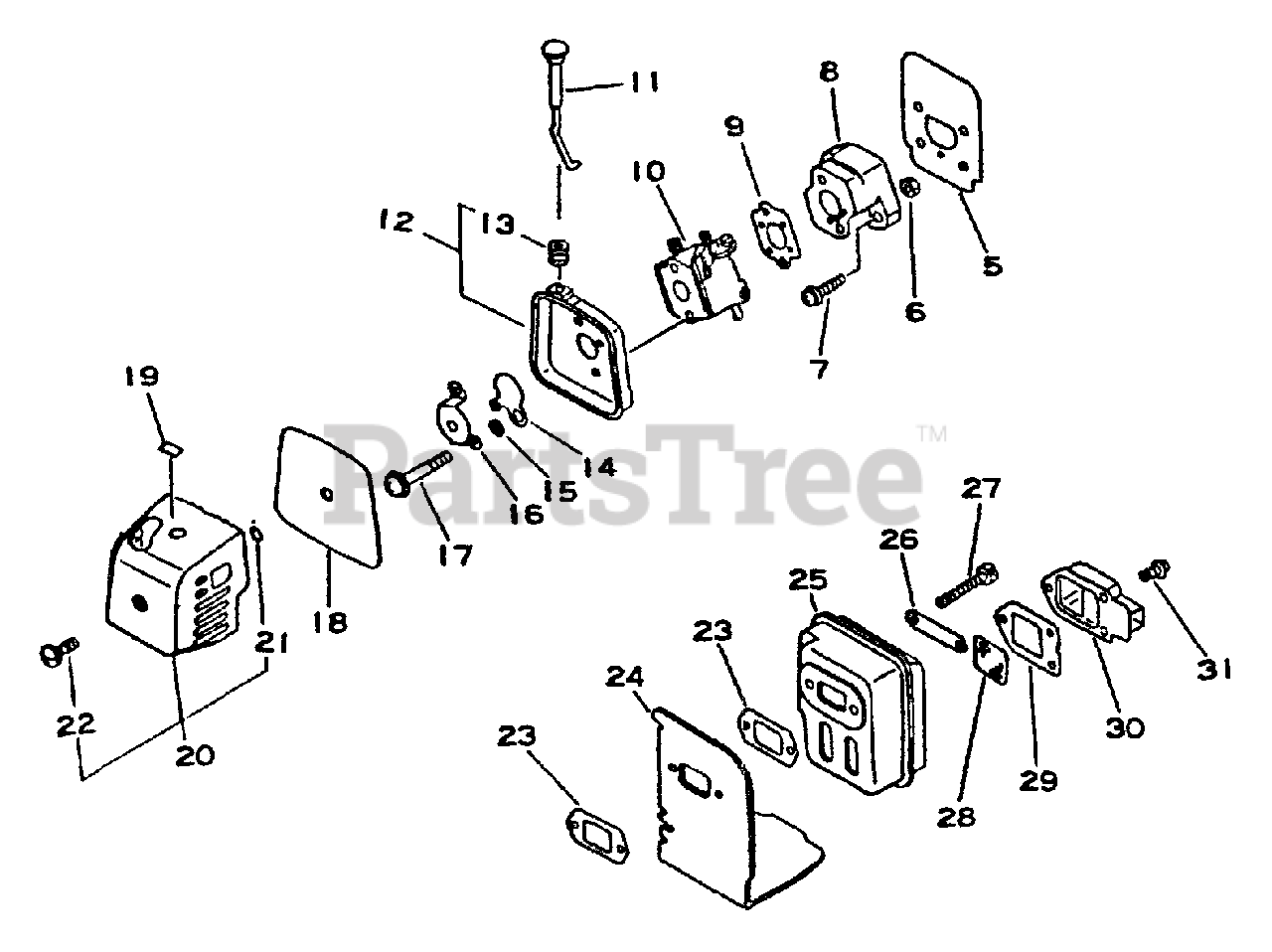

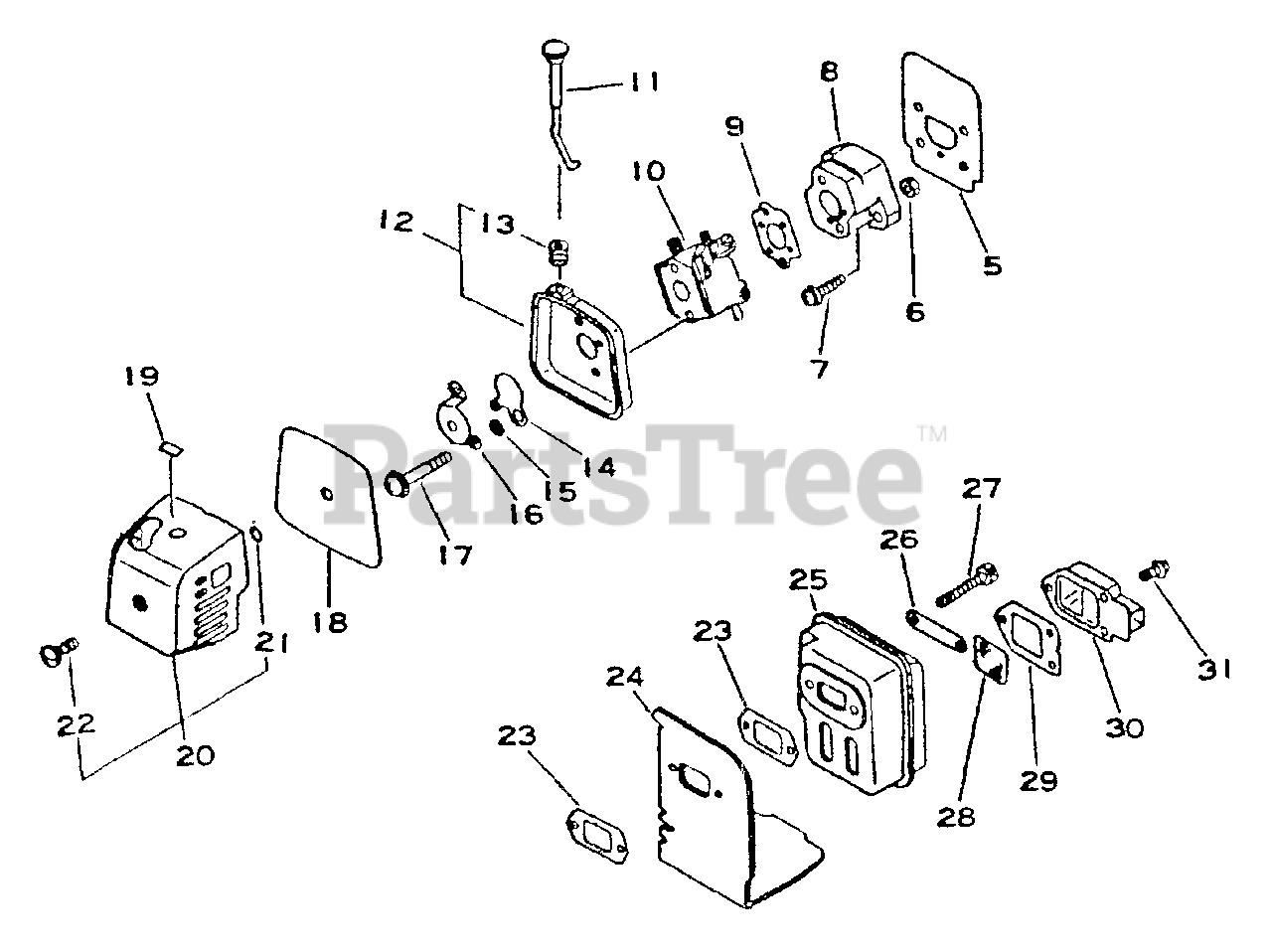

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

8

Echo 13001742030

INSULATOR, INTAKE
(Superseded to 13001742031)

$11.99

$

In Stock, Qty 20+

0

9

Echo 13001642030

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

10

Echo 12520044730

CARBURETOR - C1U-K9
(Superseded to 12520044731)

$

$

Not available

11

Echo 17851004560

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

12

Echo 13030104560

CASE, AIR FILTER

$10.99

$

In Stock, only 2 left!

0

13

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

14

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

15

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

16

Echo 13041044730

CASE, AIR FILTER

$11.99

$

Usually ships in 2-4 days

0

17

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, Qty 13

0

18

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 6

0

19

Echo 89012112330

LABEL - CHOKE

$0.99

$

Usually ships in 2-4 days

0

20

Echo 13030244730

COVER ASSY, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

22

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

23

Echo V104000160

GASKET, EXHAUST

Note: Included in Muffler Ass'y, P/N 14580042030

$2.49

$

In Stock, Qty 20+

0

24

Echo 14563142030

HEAT SHIELD, EXHAUST
(Superseded to A320000250)

$5.99

$

In Stock, Qty 12

0

25

Echo 145806-42030

MUFFLER

Note: Included in Muffler Ass'y, P/N 14580042030

$55.99

$

In Stock, Qty 7

0

26

Echo 14564204930

WASHER

$1.99

$

In Stock, Qty 5

0

27

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

28

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: Included in Muffler Ass'y, P/N 14580042030

$2.49

$

In Stock, Qty 20+

0

29

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Ass'y, P/N 14580042030

$2.99

$

In Stock, Qty 20+

0

30

Echo 145809-42030

GUIDE, EXHAUST - INNER

Note: Included in Muffler Ass'y, P/N 14580042030

$8.99

$

Usually ships in 2-4 days

0

31

Echo 900242-04010

SCREW 4×10

Note: Included in Muffler Ass'y, P/N 14580042030

$0.99

$

In Stock, Qty 20+

0

Echo 14580042030

MUFFLER ASSY
(Superseded to 14580042031)

$55.99

$

In Stock, Qty 7

0
