SRM-2301 - Echo String Trimmer (SN: 0001001 - 0031000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

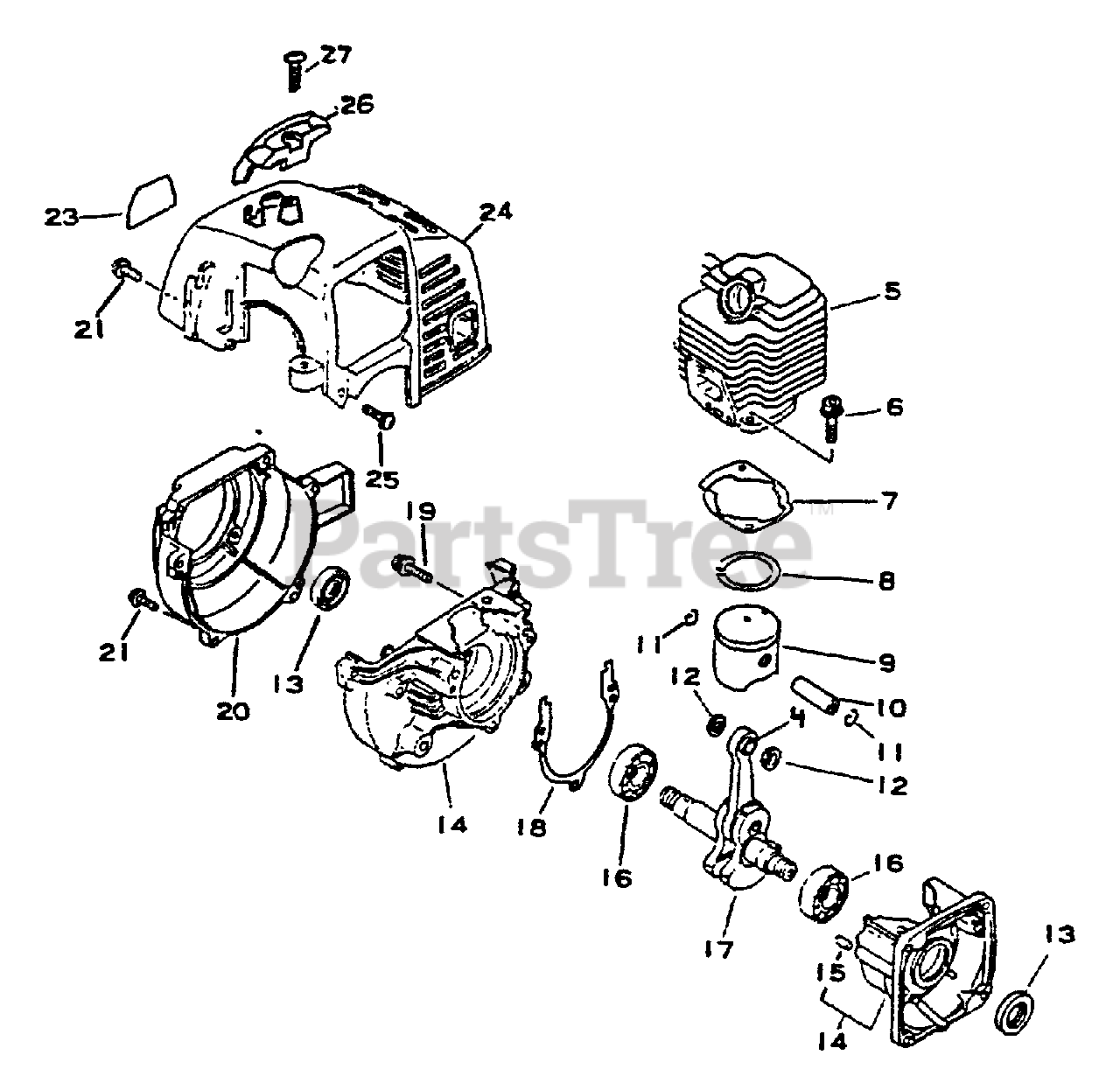

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101147630

CYLINDER
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

7

GASKET, CYLINDER

Note: USE KIT GASKET KIT, P/N 88900044630

$

$

Not available

8

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$78.99

$

Usually ships in 2-4 days

0

10

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

13

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$157.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 10010044730

CRANKSHAFT ASSY
(Superseded to 10010044731)

Note: Includes ITEM 4

$186.99

$

Usually ships in 2-4 days

0

18

GASKET, CRANKCASE

Note: USE KIT GASKET KIT, P/N 88900044630

$

$

Not available

19

Echo 90023805028

SCREW 5×28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10151144730

COVER, FAN - ORANGE

$57.99

$

Usually ships in 2-4 days

0

21

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

23

Echo 89011247630

LABEL - MODEL 2310
(Superseded to 89011242930)

$

$

Not available

24

Echo 10151444430

COVER, ENGINE
(Superseded to 10151444530)

$24.99

$

In Stock, only 2 left!

0

25

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

26

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

27

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$11.99

$

In Stock, only 2 left!

0

Echo 88900044630

GASKET KIT
(Superseded to 88900044631)

$41.99

$

In Stock, only 2 left!

0
