SRM-2301 - Echo String Trimmer (SN: 0031001 - 9999999) Carburetor SRM-2301/2310 Parts Diagram

String Trimmer

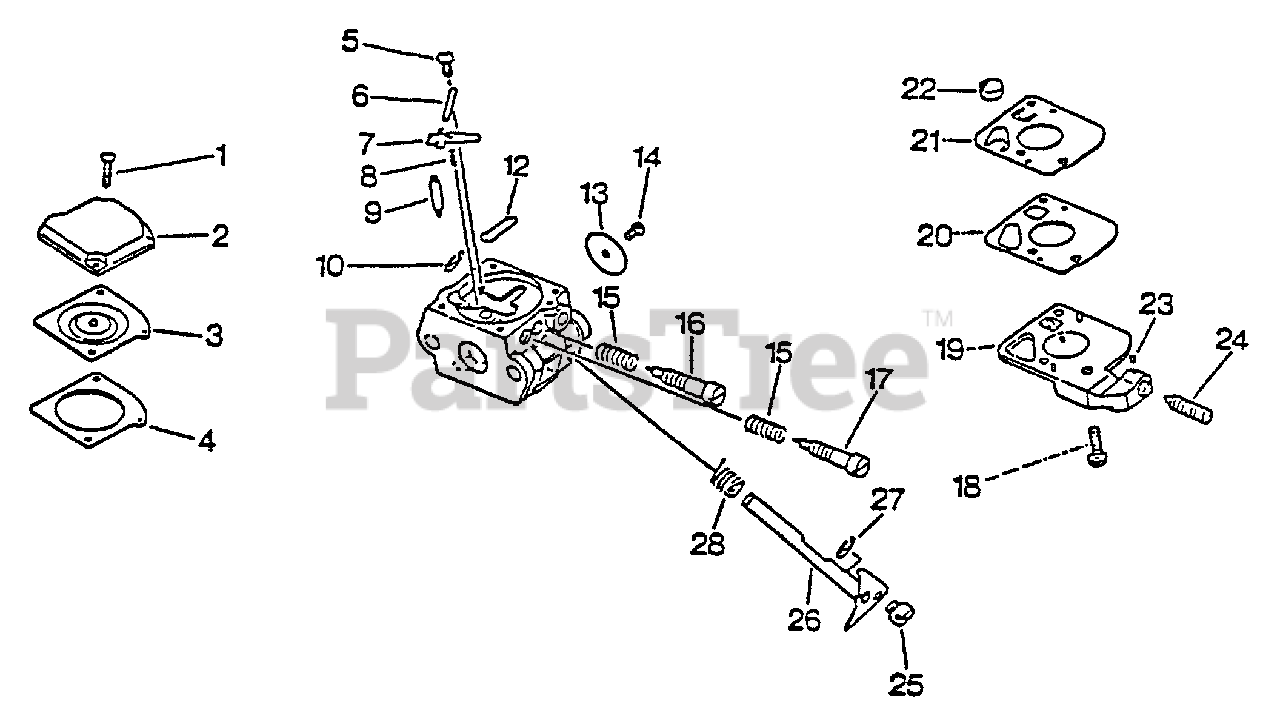

Carburetor SRM-2301/2310 Parts Diagram

  • Title

Echo 12520047630

CARBURETOR
(Superseded to Discontinued)

Note: Includes ITEMS 1-28

$

$

Not available

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630, & Carburetor Repair Kit 12530311520

$

$

Not available

4

GASKET, DIAPHRAGM

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630, & Carburetor Repair Kit 12530311520

$

$

Not available

5

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

6

PIN, METERING LEVER

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

7

LEVER, METERING

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

8

SPRING

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

9

VALVE, NEEDLE

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

10

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

11

NOZZLE, CHECK VALVE

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

12

PLUG, WELCH

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

13

Echo 125316-42030

VALVE, THROTTLE

$2.99

$

In Stock, only 1 left!

0

14

SCREW

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

15

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

16

Echo 12532047630

NEEDLE, HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

17

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

18

Echo 125310-42030

SCREW

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12532442030

COVER, PUMP

$9.49

$

Usually ships in 2-4 days

0

20

GASKET, PUMP

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630, & Carburetor Repair Kit 12530311520

$

$

Not available

21

DIAPHRAGM, PUMP

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630, & Carburetor Repair Kit 12530311520

$

$

Not available

22

STRAINER

Note: Use Carburetor Diaphragm/Gasket Kit 12530247630

$

$

Not available

23

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

24

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

25

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

26

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

27

Echo 125327-13930

CLIP

$0.99

$

In Stock, Qty 5

0

28

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

Echo 12530247630

REPAIR KIT
(Superseded to 12530011520)

$20.99

$

In Stock, only 2 left!

0

Echo 12530311520

DIAPHRAGM/GASKET KIT
(Superseded to 12530351030)

$22.99

$

In Stock, only 3 left!

0
