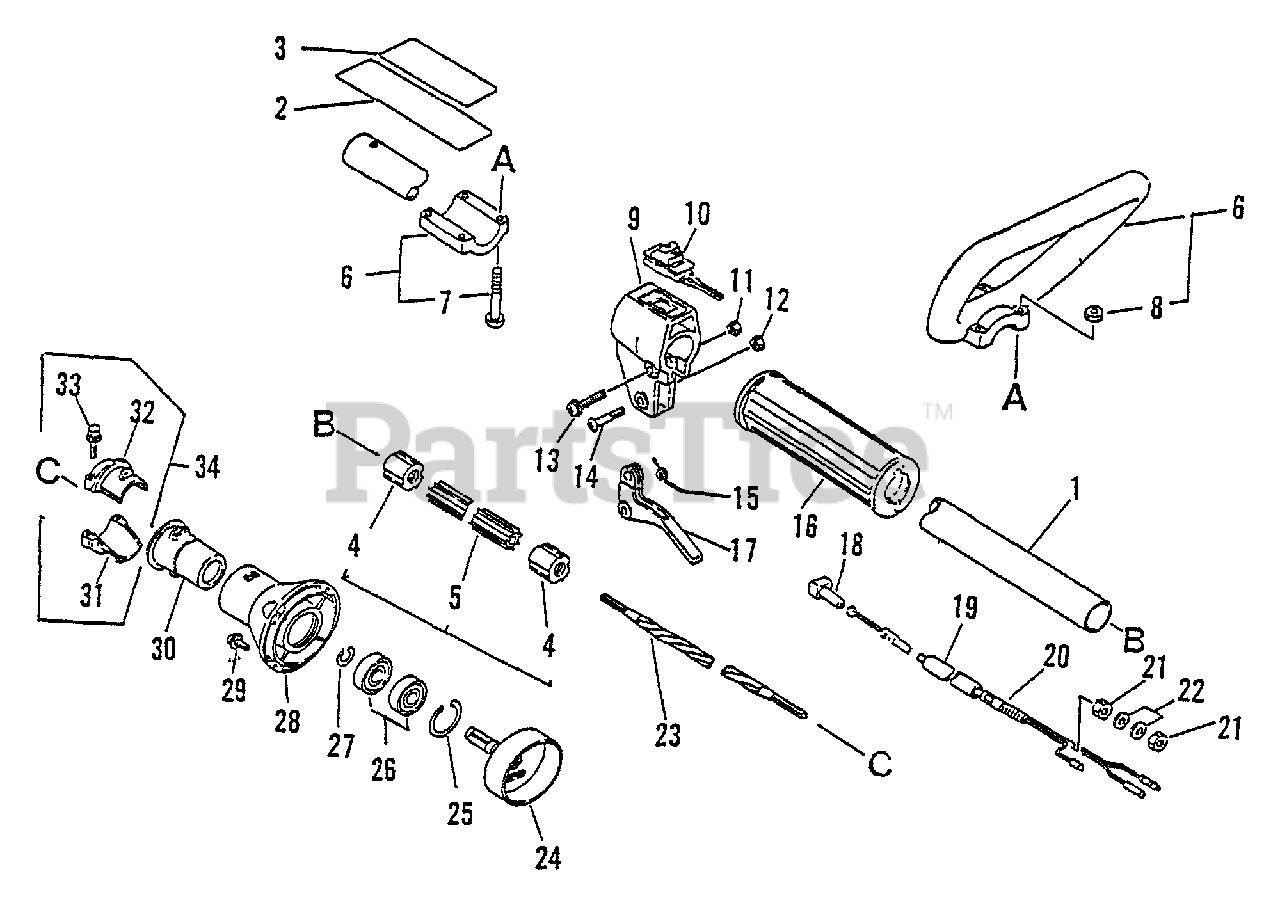

SRM-2301 - Echo String Trimmer (SN: 0031001 - 9999999) Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

  • Title

1

Echo 61060944730

MAIN PIPE ASSY

Note: Includes Items 2-5

$51.99

$

In Stock, only 1 left!

0

2

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

3

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

4

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

5

Echo C507000260

LINER - FLEXIBLE

$25.99

$

In Stock, Qty 17

0

6

Echo 35120140830

LOOP HANDLE ASSY
(Superseded to 35120151730)

Note: Includes ITEMS 7 & 8

$12.99

$

Usually ships in 2-4 days

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

9

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

10

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 13

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

13

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

14

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 16

0

15

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

16

Echo 35101240930

GRIP, HANDLE
(Superseded to 35101244730)

$

$

Not available

17

Echo 17801048730

TRIGGER, THROTTLE
(Superseded to 17801048731)

$1.49

$

In Stock, Qty 20+

0

18

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

19

Echo 17812724030

TUBE - VINYL

$0.99

$

In Stock, Qty 10

0

20

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, Qty 10

0

21

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 10

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

23

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, Qty 20+

0

24

Echo 17500649230

DRUM, CLUTCH
(Superseded to 17500549230)

$

$

Not available

25

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 16

0

26

Echo 90080806001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

27

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 13

0

28

Echo 61022349230

CASE, CLUTCH - GRAY

$56.99

$

Usually ships in 2-4 days

0

29

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

30

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

31

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

32

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

33

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 8

0

34

------------------

UNKNOWN

$

$

Not available
