SRM-2301 - Echo String Trimmer (SN: 0031001 - 9999999) Gear Case Assembly Parts Diagram

String Trimmer

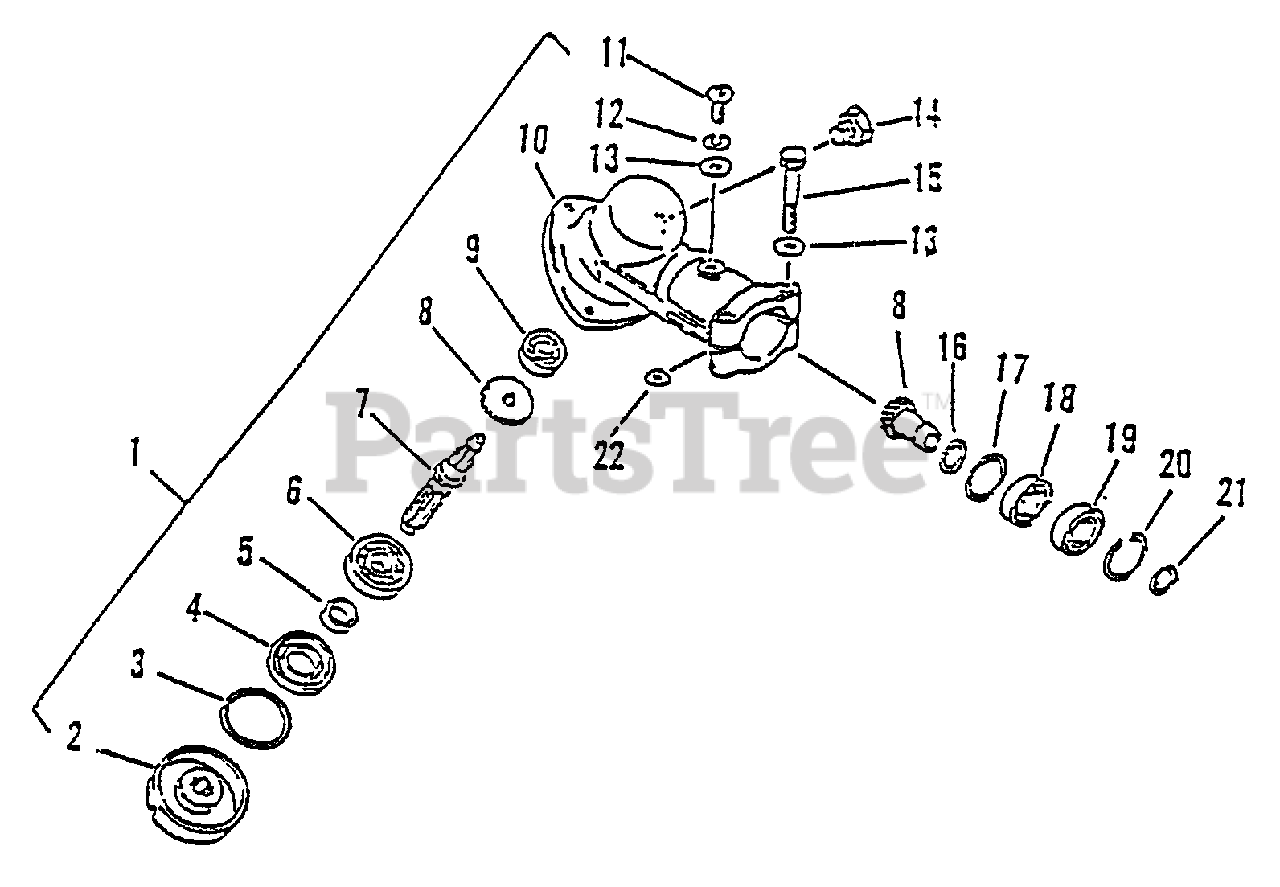

Gear Case Assembly Parts Diagram

  • Title

1

Echo 61040247732

GEAR CASE ASSY
(Superseded to 61040247733)

Note: INCLUDES ITEMS 2 - 22

$98.99

$

Usually ships in 2-4 days

0

2

Echo 61031347731

ADAPTOR, BLADE - UPPER

$13.99

$

In Stock, only 4 left!

0

3

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

4

Echo 61041322830

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

5

Echo 61031522830

SPACER

$6.99

$

Usually ships in 2-4 days

0

6

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

7

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$74.99

$

In Stock, only 4 left!

0

8

Echo 61030044830

GEAR SET - BEVEL

$98.99

$

Usually ships in 2-4 days

0

9

Echo 90080000609

BEARING, BALL - 609

$10.99

$

In Stock, Qty 7

0

10

Echo 61041040830

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

13

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

15

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 17

0

16

Echo 61031622830

WASHER

$0.99

$

In Stock, only 1 left!

0

17

Echo 61031722830

WASHER

$0.99

$

In Stock, Qty 5

0

18

Echo 90085506900

BEARING, BALL - 6900

$20.99

$

In Stock, only 2 left!

0

19

Echo 90085806900

BEARING, BALL - 6900Z

$25.99

$

In Stock, only 3 left!

0

20

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 15

0

21

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

22

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0
