SRM-2400 - Echo String Trimmer (Type 1) Exhaust Parts Diagram

String Trimmer (Type 1)

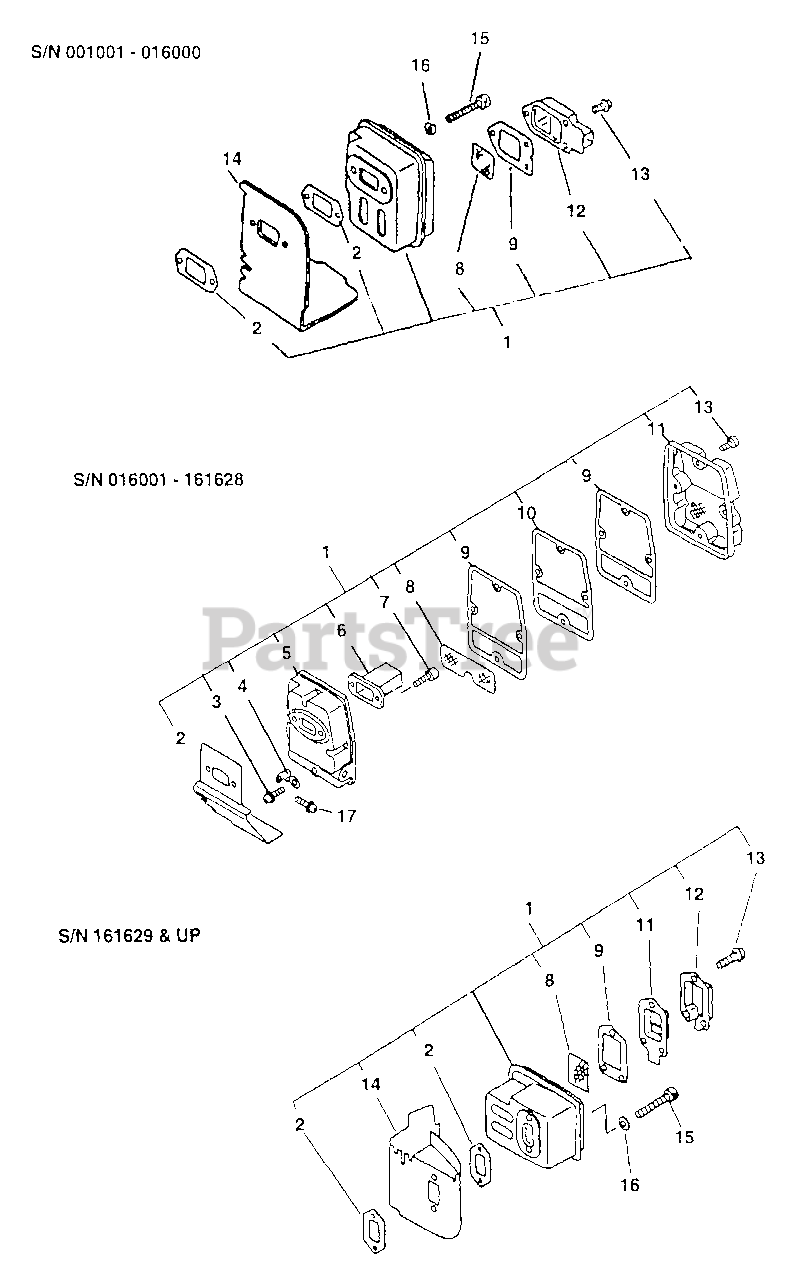

Exhaust Parts Diagram

  • Title

1

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: (S/N 001001 - 016000). INCLUDES ITEMS 2, 8, 9, 12 & 13

$55.99

$

In Stock, only 2 left!

0

1

Echo 14580052130

MUFFLER ASSY
(Superseded to Discontinued)

Note: (S/N 016001 - 161628). INCLUDES ITEMS 2 - 11 & 13

$

$

Not available

1

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: (S/N 161629 & UP). INCLUDES ITEMS 2, 8, 9, 11 - 14

$64.99

$

Usually ships in 2-4 days

0

2

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

2

Echo 14551051030

GASKET, EXHAUST

Note: (S/N 016001 - 161628 ONLY). INCLUDED IN GASKET KIT S/N 016001 - 161628 P/N 88900051030

$4.49

$

Usually ships in 2-4 days

0

3

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

4

Echo 14571151030

BRACKET, MUFFLER

$7.49

$

Usually ships in 2-4 days

0

5

Echo 14581052130

MUFFLER

$104.99

$

Usually ships in 2-4 days

0

6

Echo 14585952130

BAFFLE, MUFFLER

$12.99

$

Usually ships in 2-4 days

0

7

Echo 90010505018

SCREW - 5X18

$1.49

$

Usually ships in 2-4 days

0

8

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

8

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: (S/N 016001 - 161628 ONLY)

$

$

Not available

9

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN GASKET KIT S/N 001001 - 016000 P/N 88900044632 AND GASKET KIT S/N 161629 & UP P/N 88900005960

$2.99

$

In Stock, Qty 6

0

9

Echo 14586651030

GASKET, EXHAUST

Note: (S/N 016001 - 161628 ONLY). INCLUDED IN GASKET KIT S/N 016001 - 161628 P/N 88900051030

$6.49

$

In Stock, only 2 left!

0

10

Echo 14588052130

GASKET, EXHAUST
(Superseded to Discontinued)

Note: S/N 016001 - 161628

$

$

Not available

11

Echo 14586151030

LID, MUFFLER
(Superseded to Discontinued)

Note: S/N 016001 - 161628

$

$

Not available

11

Echo 14587642030

GASKET, EXHAUST - INNER

Note: S/N 161629 & UP

$4.99

$

In Stock, only 3 left!

0

12

Echo 14586342030

GUIDE, EXHAUST
(Superseded to A313000041)

Note: S/N 001001 - 016000

$4.49

$

Usually ships in 2-4 days

0

12

Echo 14581852130

GUIDE, EXHAUST - OUTER

Note: S/N 161629 & UP

$8.49

$

Usually ships in 2-4 days

0

13

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

13

Echo 90023805016

SCREW - 5X16

Note: (S/N 016001 - 161628 ONLY)

$0.99

$

In Stock, Qty 20+

0

14

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

15

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

16

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 11

0

Echo 88900044632

GASKET KIT
(Superseded to 88900005063)

Note: (S/N 001001 - 016000). INCLUDES THE FOLLOWING

$41.99

$

In Stock, only 2 left!

0

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$5.99

$

In Stock, only 2 left!

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 6

0

Echo 88900051030

GASKET KIT

Note: (S/N 016001 - 161628). INCLUDES THE FOLLOWING

$25.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14551051030

GASKET, EXHAUST

$4.49

$

Usually ships in 2-4 days

0

Echo 14586651030

GASKET, EXHAUST

$6.49

$

In Stock, only 2 left!

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: (S/N 161629 & UP). INCLUDES THE FOLLOWING

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 13

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 9

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 6

0

Echo 61041001260

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available
