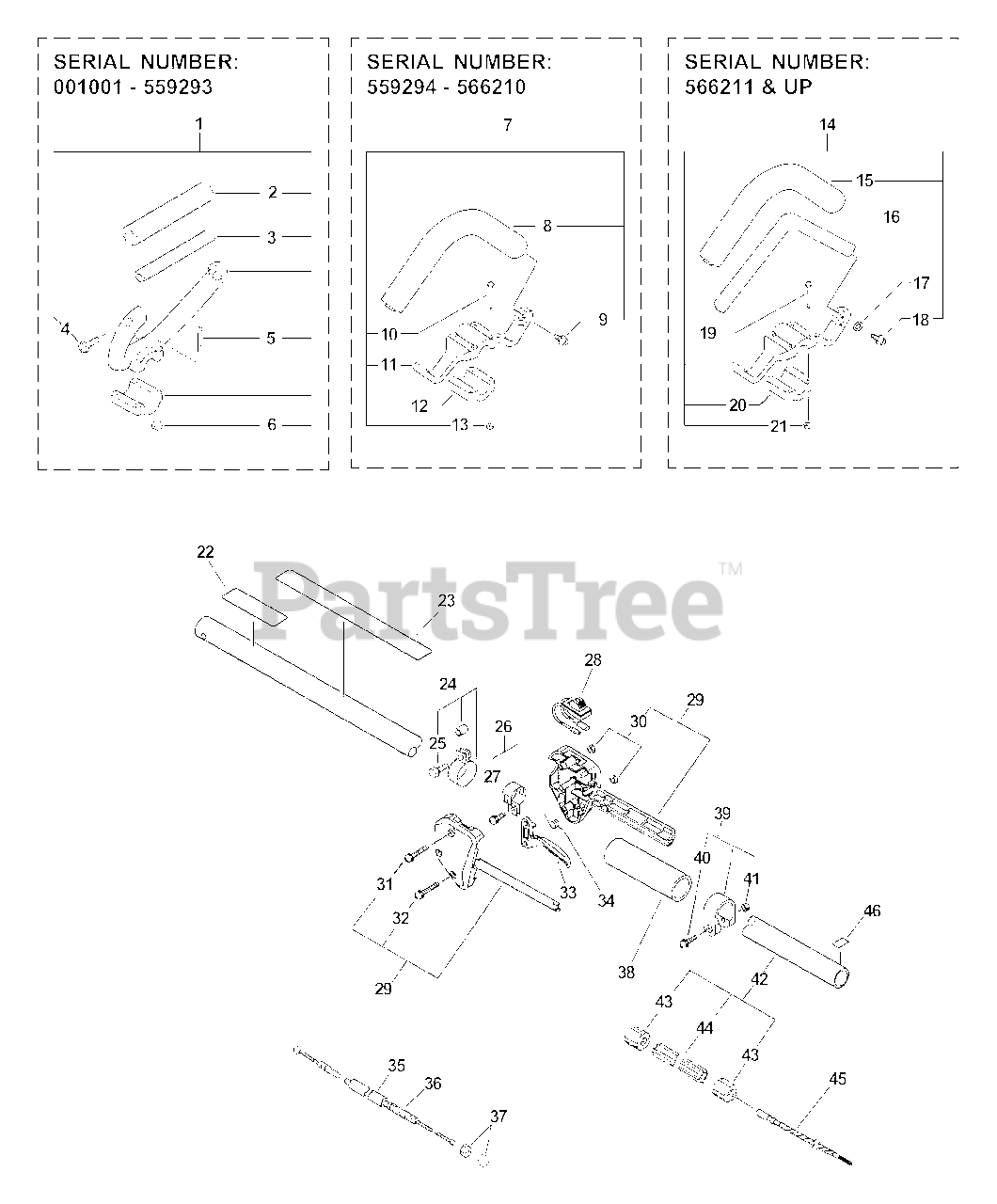

SRM-2400 - Echo String Trimmer (Type 1E) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

String Trimmer (Type 1E)

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2-6; S/N: 001001 - 559293

$78.99

$

Usually ships in 2-4 days

0

2

Echo 35121351730

GRIP, HANDLE

Note: S/N: 001001 - 559293

$9.99

$

In Stock, only 2 left!

0

3

Echo 35121051730

HANDLE

Note: S/N: 001001 - 559293

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90024605030

SCREW - 5X30

Note: S/N: 001001 - 559293

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90024205035

SCREW - 5X35

Note: S/N: 001001 - 559293

$0.99

$

In Stock, Qty 20+

0

6

Echo 90050000005

NUT - 5

Note: S/N: 001001 - 559293

$0.99

$

In Stock, Qty 20+

0

7

Echo P021000000

HANDLE ASSY - FRONT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 8-13; S/N: 559294 - 566210

$

$

Not available

8

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

Note: S/N: 559294 - 566210

$27.99

$

Usually ships in 2-4 days

0

9

Echo 90024205014

SCREW - 5X14

Note: S/N: 559294 - 566210

$0.99

$

In Stock, Qty 20+

0

10

Echo 90024205035

SCREW - 5X35

Note: S/N: 559294 - 566210

$0.99

$

In Stock, Qty 20+

0

11

Echo 35123207131

BRACKET, HANDLE - UPPER
(Superseded to P021013241)

Note: S/N: 559294 - 566210

$21.99

$

In Stock, only 1 left!

0

12

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

Note: S/N: 559294 - 566210

$1.99

$

In Stock, only 4 left!

0

13

Echo 90050000005

NUT - 5

Note: S/N: 559294 - 566210

$0.99

$

In Stock, Qty 20+

0

14

Echo P021000021

HANDLE ASSY - FRONT
(Superseded to P021012390)

Note: INCLUDES ITEMS 15-21; S/N: 566211 & UP

$16.99

$

In Stock, only 2 left!

0

15

Echo 35121666230

GRIP, HANDLE

Note: S/N: 566211 & UP

$5.49

$

In Stock, Qty 10

0

16

Echo 35120566230

HANDLE - FRONT

Note: S/N: 566211 & UP

$5.49

$

Usually ships in 2-4 days

0

17

Echo 90060000005

WASHER - 5

Note: S/N: 566211 & UP

$0.99

$

In Stock, Qty 20+

0

18

Echo 88995021060

SCREW - 5X20

Note: S/N: 566211 & UP

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205035

SCREW - 5X35

Note: S/N: 566211 & UP

$0.99

$

In Stock, Qty 20+

0

20

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

Note: S/N: 566211 & UP

$1.99

$

In Stock, only 4 left!

0

21

Echo 90050000005

NUT - 5

Note: S/N: 566211 & UP

$0.99

$

In Stock, Qty 20+

0

22

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

23

Echo 89016054130

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

24

Echo 30120708930

CLAMP

Note: Includes ITEM 25

$5.99

$

Usually ships in 2-4 days

0

25

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 8

0

26

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 27

$11.99

$

In Stock, only 3 left!

0

27

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

28

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

29

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 30-32

$5.99

$

In Stock, only 3 left!

0

30

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

32

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

33

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

34

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

35

Echo 17812752130

TUBE
(Superseded to 17812750330)

$1.49

$

In Stock, Qty 8

0

36

Echo 17800144430

CABLE, THROTTLE

Note: S/N: 001001-509053

$12.99

$

In Stock, only 2 left!

0

36

Echo 17800156730

CABLE, THROTTLE

Note: S/N: 509054-562999

$12.99

$

In Stock, only 1 left!

0

36

Echo 17800156530

CABLE, THROTTLE

Note: S/N: 563000 & UP

$23.99

$

In Stock, Qty 14

0

37

Echo 90050200006

NUT - 6

Note: S/N: 001001-562999

$0.99

$

In Stock, Qty 20+

0

38

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 19

0

39

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 40-41

$11.99

$

In Stock, only 2 left!

0

40

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

41

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

42

Echo 61060944730

MAIN PIPE ASSY

Note: INCLUDES ITEMS 43-44

$55.99

$

Usually ships in 2-4 days

0

43

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

44

Echo C507000260

LINER - FLEXIBLE
(Superseded to C507000430)

$30.99

$

Usually ships in 2-4 days

0

45

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$20.99

$

In Stock, Qty 7

0

46

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0
