SRM-2400 - Echo String Trimmer (Type 1E) Intake, Exhaust Parts Diagram

String Trimmer (Type 1E)

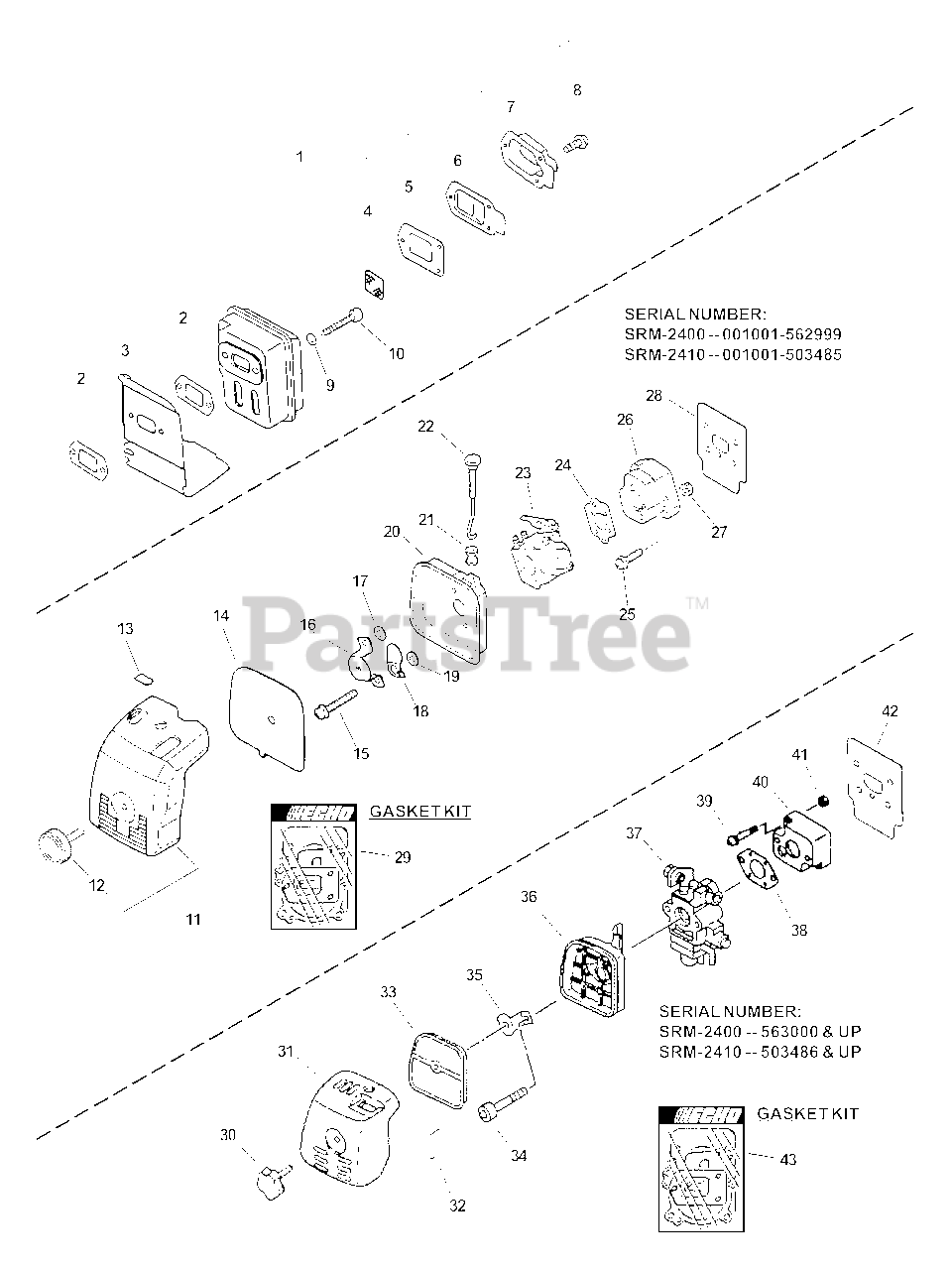

Intake, Exhaust Parts Diagram

  • Title

1

Echo 14580052631

MUFFLER ASSY
(Superseded to 14580052632)

Note: INCLUDES ITEMS 2-8

$59.99

$

Usually ships in 2-4 days

0

2

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, only 4 left!

0

3

Echo A320000251

SHIELD, EXHAUST

$5.49

$

In Stock, only 4 left!

0

4

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, Qty 20+

0

5

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 6

0

6

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 1 left!

0

7

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.99

$

Usually ships in 2-4 days

0

8

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

9

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

11

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: INCLUDES ITEMS 12; S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$16.99

$

In Stock, only 2 left!

0

12

Echo 13040652131

THUMBSCREW

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$5.99

$

In Stock, Qty 20+

0

13

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$

$

Not available

14

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$7.99

$

In Stock, Qty 20+

0

15

Echo 90024205057

SCREW - 5X57

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$0.99

$

In Stock, Qty 8

0

16

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$5.99

$

In Stock, only 2 left!

0

17

Echo 90060000005

WASHER - 5

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$0.99

$

In Stock, Qty 20+

0

18

Echo 17851505060

SHUTTER, CHOKE

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$2.99

$

In Stock, only 3 left!

0

19

Echo 17851600830

WASHER - 5

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$0.99

$

In Stock, Qty 20+

0

20

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$

$

Not available

21

Echo 17881005230

GROMMET

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$2.49

$

In Stock, Qty 7

0

22

Echo 17851051730

ROD, CHOKE

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$7.49

$

In Stock, only 4 left!

0

23

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$105.99

$

In Stock, only 2 left!

0

24

Echo 13001005960

GASKET, INTAKE

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485; Also Included In GASKET KIT

$1.99

$

In Stock, Qty 12

0

25

Echo 90023805020

SCREW - 5X20

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$0.99

$

In Stock, Qty 20+

0

26

Echo 13001742031

INSULATOR, INTAKE

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$10.99

$

In Stock, only 1 left!

0

27

Echo 90050000005

NUT - 5

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$0.99

$

In Stock, Qty 20+

0

28

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485; Also Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

29

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 001001-562999, SRM-2410 -- 001001-503485

$

$

Not available

30

Echo 13040652131

THUMBSCREW

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$5.99

$

In Stock, Qty 20+

0

31

Echo 13031357731

COVER, AIR FILTER
(Superseded to 13031357732)

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$9.49

$

In Stock, Qty 20+

0

32

Echo 89012152730

LABEL - CHOKE

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$1.49

$

In Stock, only 2 left!

0

32

Echo 89033252730

LABEL - CHOKE

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$1.49

$

In Stock, Qty 20+

0

33

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$7.99

$

In Stock, Qty 20+

0

34

Echo 90024205065

SCREW - 5X65

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$0.99

$

In Stock, Qty 20+

0

35

Echo 12901157731

PLATE, PREVENT

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$5.99

$

Usually ships in 2-4 days

0

36

Echo 13030757730

CASE, AIR FILTER

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$14.99

$

In Stock, Qty 9

0

37

Echo 12300051730

CARBURETOR WYJ-220
(Superseded to 12300051731)

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$

$

Not available

38

Echo 13001044431

GASKET, INTAKE

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP; Also Included In GASKET KIT

$2.49

$

In Stock, Qty 10

0

39

Echo 90023805020

SCREW - 5X20

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$0.99

$

In Stock, Qty 20+

0

40

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$4.99

$

In Stock, Qty 7

0

41

Echo 90050000005

NUT - 5

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$0.99

$

In Stock, Qty 20+

0

42

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP; Also Included In GASKET KIT

$2.49

$

In Stock, Qty 20+

0

43

Echo 88900004861

GASKET KIT
(Superseded to Discontinued)

Note: S/N: SRM-2400 -- 563000 & UP, SRM-2410 -- 503486 & UP

$

$

Not available
