SRM-2400 SB - Echo String Trimmer (Type 1) Carburetor S/N: 563000_Up Parts Diagram

String Trimmer (Type 1)

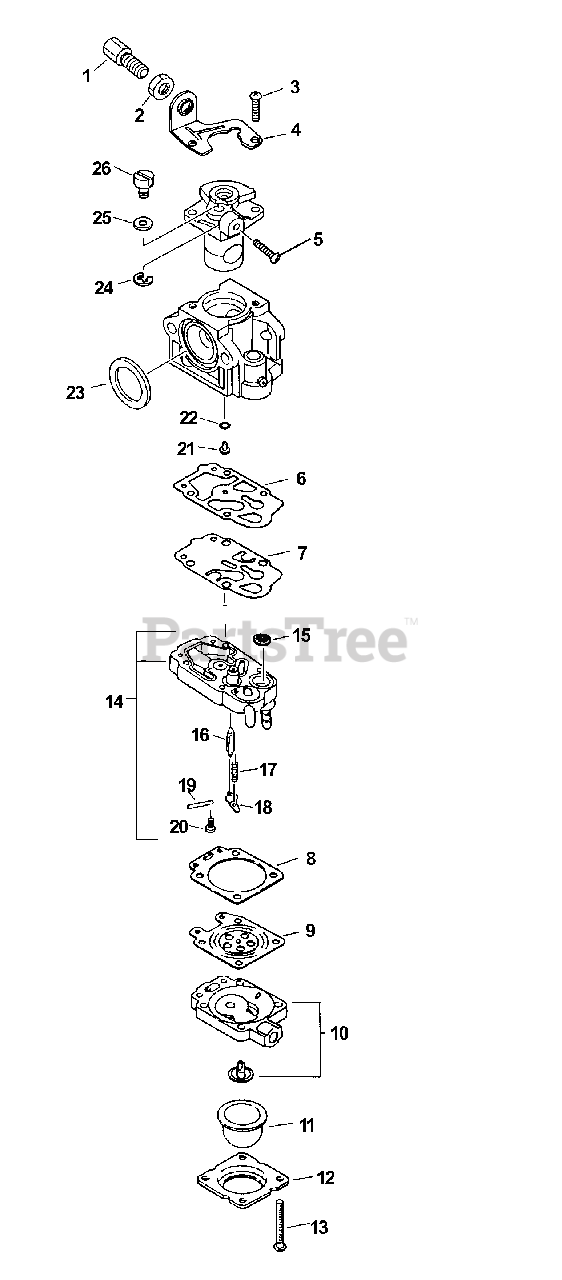

Carburetor S/N: 563000_Up Parts Diagram

  • Title

Echo 12300051730

CARBURETOR WYJ-220
(Superseded to 12300051731)

Note: INCLUDES THE FOLLOWING ITEMS

$

$

Not available

1

Echo 12316156431

NUT, CABLE ADJUST

$7.99

$

In Stock, only 3 left!

0

2

Echo 12315356430

NUT - 7

$1.49

$

In Stock, only 3 left!

0

3

Echo 12311440630

SCREW

$6.49

$

Usually ships in 2-4 days

0

4

Echo 12312854230

BRACKET, THROTTLE CABLE

$5.99

$

Usually ships in 2-4 days

0

5

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

6

------------------

GASKET, PUMP

Note: USE REPAIR KIT P/N 12310057730 AND DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

7

------------------

DIAPHRAGM, PUMP

Note: USE REPAIR KIT P/N 12310057730 AND DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

8

------------------

GASKET, METERING

Note: USE REPAIR KIT P/N 12310057730 AND DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

9

------------------

DIAPHRAGM, METERING

Note: USE REPAIR KIT P/N 12310057730 AND DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

10

Echo 12318005560

PURGE BASE ASSY

$8.49

$

In Stock, Qty 11

0

11

Echo 12318140630

BULB, PURGE

$5.99

$

In Stock, Qty 20+

0

12

Echo 12314205560

RETAINER, PURGE BULB

$4.99

$

In Stock, Qty 11

0

13

Echo 12311005560

SCREW, PUMP COVER

$2.49

$

In Stock, Qty 20+

0

14

Echo 12317905560

BASE, PURGE

Note: Includes ITEMS 15-20

$18.99

$

In Stock, only 2 left!

0

15

------------------

STRAINER

Note: USE REPAIR KIT P/N 12310057730

$

$

Not available

16

------------------

VALVE, INLET NEEDLE

Note: USE REPAIR KIT P/N 12310057730

$

$

Not available

17

Echo 12312205560

SPRING, METERING LEVER

$4.49

$

Usually ships in 2-4 days

0

18

------------------

LEVER, METERING

Note: USE REPAIR KIT P/N 12310057730

$

$

Not available

19

Echo 12313803930

PIN, METERING LEVER

$6.49

$

In Stock, only 4 left!

0

20

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12318451730

JET, MAIN

$

$

Currently unavailable

22

Echo 12318305960

O-RING

$17.99

$

In Stock, only 3 left!

0

23

------------------

SEAL

Note: USE REPAIR KIT P/N 12310057730 AND DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

24

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

25

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

Echo 12310057730

REPAIR KIT

$35.99

$

In Stock, only 2 left!

0

Echo 12310157730

DIAPHRAGM/GASKET KIT

$14.99

$

In Stock, Qty 6

0
